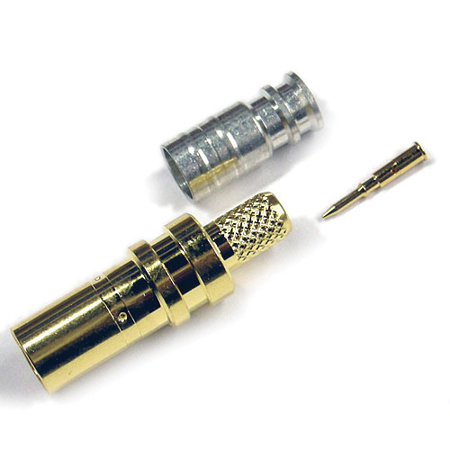

Canare 75 Ohm Multi-Pin Coaxial Connector, Male, for V5-3C Cable

SKU: CAMCMV5C3 MFR: MCM-V5C3
$64.00
$70.40
Save: $6.4 (9%)
Earn VIP Reward Points

Key Features

  • Ensure optimal signal with this 75 Ohm Canare coaxial connector, perfect for V5-3C cable.
  • Experience minimal signal loss; our male coaxial cable connector boasts >20 dB return loss.
  • Built for durability, this nickel-plated coaxial connector withstands temperatures from -40°C to 65°C.
  • Achieve reliable connections; gold-plated center contact ensures superior coaxial signal transfer.
  • Maintain high voltage safety; this coaxial connector is rated to 1500 VAC (RMS) for peace of mind.
  • Enjoy broad bandwidth with a VSWR of <1.2; ideal for high-frequency coaxial cable applications.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare Coaxial Connector Specifications

  • Suitable Cable

    V5-3C

  • Die Set

    TCD-35CA

  • Impedance

    75 Ohms

  • Return Loss

    >20 dB (DC to 1.5GHz)

  • Dielectric Material

    PTFE

  • Voltage Rating

    1500 VAC (RMS)

  • Insulation Resistance

    >1000 MOhms (at 500VDC)

  • Connector Finish

    Nickel-plated

  • Center Contact Plating

    Gold-plated

  • Outer Contact Material

    Beryllium copper

  • Operating Temperature

    -40 Degree to +65 Degree C

  • Bandwidth VSWR

    <1.2

  • Body/Center Contact Material

    Brass

Models
Canare 75 Ohm Multi-Pin Coaxial Connector, Male, for V5-3C Cable
$64.00

$70.40

Save:$6.40 (9%)

Special Order

Generally ships in 7-14 days, subject to availability

Canare 75 Ohm Multichannel 4K-DIN Coax Connector, Male
$72.45

$79.70

Save:$7.25 (9%)

Special Order

Generally ships in 7-14 days, subject to availability

Canare 75 Ohm Multichannel 4K-DIN Coax Connector, Female Plug
$39.00

In Stock

TypeConnectorConnectorConnector
Cable Gender-MaleFemale

About Canare Coaxial Connector

Single connector handles load of up to five 75 Ohm coaxial connectors.

Canare Coaxial Connector Features

  • Modular snap n lock pins and sockets
  • Easy to assemble in shop or field
  • No soldering required, just crimp
  • Uses standard Canare crimp tools and strippers
  • Color coded channel ID's
  • Applicable for RGB-HV snake systems, digital video projectors, SDI tie lines, OB vans, A/V multimedia installers

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure optimal signal with this 75 Ohm Canare coaxial connector, perfect for V5-3C cable.
  • Experience minimal signal loss; our male coaxial cable connector boasts >20 dB return loss.
  • Built for durability, this nickel-plated coaxial connector withstands temperatures from -40°C to 65°C.
  • Achieve reliable connections; gold-plated center contact ensures superior coaxial signal transfer.
  • Maintain high voltage safety; this coaxial connector is rated to 1500 VAC (RMS) for peace of mind.
  • Enjoy broad bandwidth with a VSWR of <1.2; ideal for high-frequency coaxial cable applications.
