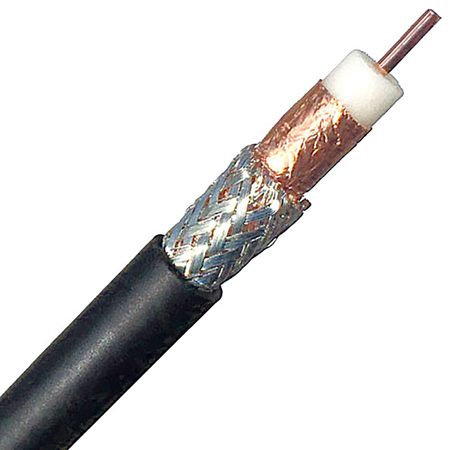

Canare L-5.5CUHD 984' 12G-SDI 75Ohms 4K Video Coaxial Cable with BNC Connectors
See all Canare items

Canare L-5.5CUHD 984' 12G-SDI 75Ohms 4K UHD Video Coaxial Cable with BNC Connectors

SKU: CAL55CUHD300 MFR: L-5.5CUHD 300M
(1)Ask a Question
$844.95
OR
$71/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior 4K UHD signal quality with this 12G-SDI coaxial cable, perfect for professional video.
  • Enjoy reliable connections with BNC connectors, ensuring seamless integration into your existing setup.
  • Benefit from exceptional durability, as this robust cable is built to withstand rigorous daily use.
  • Achieve optimal performance with 75 Ohms characteristic impedance, ideal for high-definition video transmission.
  • Rely on advanced shielding for minimal interference, delivering crystal-clear visuals every time.
  • Ensure broad compatibility with various professional video equipment, enhancing your production workflow.
See More Product Details
Temporarily On Backorder?Expected Availability: 07/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$119.99
3-Year Adorama Protect$154.99
5-Year Adorama Protect$269.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2024-03-28T18:27:31

Rated 5 out of 5

MagRose Media

We use spools of Canare SDI cable. This L5.5CUHD has been great to work with. We invested in the Canare multi-cable stripper, ratcheting crimp tool, and the Crimp DIE SOLD SEPARATLY. Also must use Canare 5.5UHD BNC Terminations. This Canare Ecosystem is pricy but I have never had a cable fail in the 3+ years I have been using this system. Canare had done an amazing job creating a sustem that consistently produces quality cables. Especially when its critical repair time every second counts. Canare has never left us hanging! We make all our own cables for video signal distribution as this cuts the overhead of cable replacements. We teach young folks in our program how to field repair audio and video cables. The Canare termination system for BNC is the fastest picked up by the youngins(8 yrs+) If you can't make a great cable with the Canare system you may need a quick youtube refresher and you'll be making cables like a seasoned pro!

Robert L.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Canare L-5.5CUHD Specifications

  • Connectors

    BNC Connectors

  • Outer Diameter

    Nominal: 0.30" (7.7mm)
    Inner Conductor: 0.05" (1.35mm)
    Insulation: 0.22" (5.55mm)

  • Conductor

    Inner Conductor Composition:
    16AWG
    1/1.35A (Quantity/mm)

    Outer Conductors Shield Coverage & Composition:
    Copper Laminated Tape + 0.12TA/8/24 (91%)

  • Resistance

    Inner Conductor: 12.8Ohms/km
    Outer Conductor: 10.3Ohms/km

  • Static Capacity

    52pF/m

  • Characteristic Impedance

    75Ohms

  • Attenuation

    39.1dB/100m at 6GHz

About Canare L-5.5CUHD

This coax cable features enhanced attenuation characteristics that allow transport of 12G signals at much greater distances than comparable sized coax. Cables are fully SMPTE ST-2082-1 compliant and hand crafted with Canare L-5.5CUHD miniature coaxial and BCP-D55UHD BNC connectors. A superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz & 26 dB @ 3 GHz makes these cables perfect for 12G, 6G and 3G systems. Designed for Ultra High Definition and 4K signal transmission.

Canare L-5.5CUHD Features

  • Designed specifically for 12G-SDI, and fixed installation
  • Copper foil and high-density tinned copper braided shielding
  • Highly foamed multi-layer PE insulation
  • Flame resistance Riser rated (CMR)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior 4K UHD signal quality with this 12G-SDI coaxial cable, perfect for professional video.
  • Enjoy reliable connections with BNC connectors, ensuring seamless integration into your existing setup.
  • Benefit from exceptional durability, as this robust cable is built to withstand rigorous daily use.
  • Achieve optimal performance with 75 Ohms characteristic impedance, ideal for high-definition video transmission.
  • Rely on advanced shielding for minimal interference, delivering crystal-clear visuals every time.
  • Ensure broad compatibility with various professional video equipment, enhancing your production workflow.

What's in the box:

  • Canare L-5.5CUHD 984' 12G-SDI 75Ohms 4K Video Coaxial Cable with BNC Connectors
  • Canare 1 Year Limited Warranty
