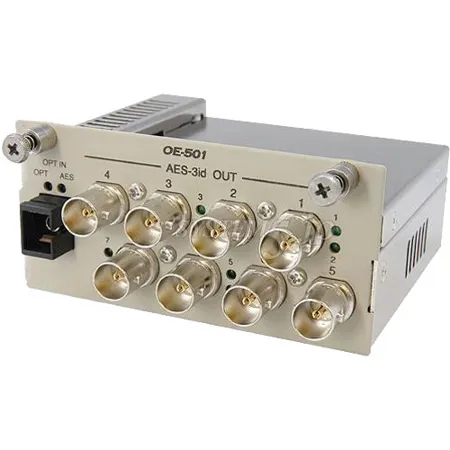

Canare AES-3id Optical to Electrical Converter, 1200nm - 1611nm Wavelength

SKU: CAOE501 MFR: OE-501
Earn VIP Reward Points

Key Features

  • Seamless optic to electric conversion ensures top-notch AES-3id video quality every time.
  • Enjoy stable connections & reliable video format conversion with a wide 1200nm-1611nm wavelength.
  • Achieve high resolution audio with a sampling rate of 30KHz to 50KHz for pristine sound clarity.
  • This video format converter supports AES-3id-1995 & SMPTE 276M for broad compatibility.
  • Simple setup lets you quickly integrate this converter; get low latency video output instantly.
  • Compact design fits easily into any workspace; enjoy high-quality video capture without clutter.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare AES-3id OE Converter Specifications

  • Convertibility

    Optic to Electric

  • LD/PD

    PIN-PD

  • Emission/Sensitivity

    -26 dBm

  • Wavelength

    1200nm - 1611nm

  • AES in/out

    1 x 75 BNC / Output

  • Platform (Max. Unit)

    161UPSC (3), 6PS (1)

  • Optical Connector

    1 x SC-type (Single Mode)

  • Sampling Rate

    30KHz to 50KHz

  • Power Requirement Consumption

    DC5V, 2.5W

  • Operating Temperature

    0 Degre C - 40 Degree C (32 Degree F - 104 Degree F)

  • Typical Compliances

    AES-3id-1995, SMPTE 276M, CB, CE, UL/cUL, FCC, FDA, EMC, IEC 60825-1 Class 1 Laser

  • Dimension (D x H x W)

    76.20 mm x 43.40 mm x 91 mm (3" x 1.71" x 3.58")

  • Weight

    174 g (0.37 lbs)

About Canare AES-3id OE Converter

It's time to experience the advanced technology of the AES-3id Optical to Electrical Converter, designed to operate within a 1200nm - 1611nm wavelength range. This sophisticated device, crafted by the reputable brand Canare, is a testament to high-quality audio and video equipment. It's not just a converter; it's a reliable and durable solution for your signal conversion needs.

The AES-3id Optical to Electrical Converter is engineered to multiplex and optically convert AES signals from up to 8 ports, equivalent to 16 audio channels. This allows for the transmission of signals over long distances, making it an essential tool for telecommunications, data transmission, and audio/video signal processing.

One of the standout features of this converter is its ability to accommodate eight different types of TX. These are distinguished by emitted light wavelengths ranging from 1471nm to 1611nm. The converter utilizes Coarse Wavelength Division Multiplexing (CWDM), a technology that enables AES signals from up to 64 ports, or 128 audio channels, to be transmitted via a single fiber-optic cable.

In essence, the AES-3id Optical to Electrical Converter is more than just a device; it's a powerful tool that enhances the efficiency and quality of your audio and video applications. Experience the difference with this advanced, high-quality, and reliable converter.

Canare AES-3id OE Converter Features

  • AES-3id-1995 and SMPTE 276M
  • Fully asynchronous multiplex transmission
  • Word clock can be transmitted (30kHz to 50kHz)
  • Dolby-E compatible

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Seamless optic to electric conversion ensures top-notch AES-3id video quality every time.
  • Enjoy stable connections & reliable video format conversion with a wide 1200nm-1611nm wavelength.
  • Achieve high resolution audio with a sampling rate of 30KHz to 50KHz for pristine sound clarity.
  • This video format converter supports AES-3id-1995 & SMPTE 276M for broad compatibility.
  • Simple setup lets you quickly integrate this converter; get low latency video output instantly.
  • Compact design fits easily into any workspace; enjoy high-quality video capture without clutter.
