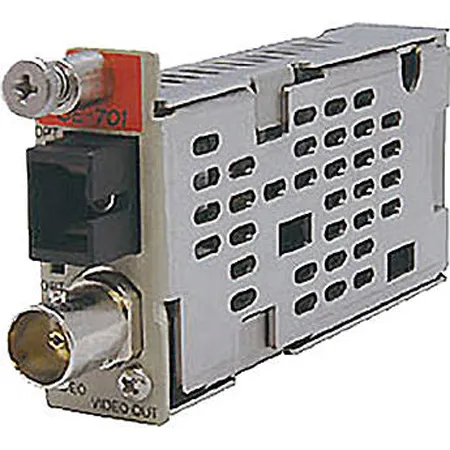

Canare NTSC/PAL Optical to Electrical Converter, 1200nm - 1620nm Wavelength

SKU: CAOE701 MFR: OE-701
Earn VIP Reward Points

Key Features

  • Seamlessly convert optical signals to electrical with this reliable video format converter.
  • Achieve high-resolution video output with a 6MHz bandwidth for superior image clarity.
  • Enjoy easy setup and integration with SMPTE & ITU-R compliances for format support.
  • Ensure low latency signal conversion, perfect for live streaming and critical video feeds.
  • Maintain a reliable connection with SC-type optical input and BNC output video connectors.
  • Experience a high signal-to-noise ratio (60dB) for pristine video capture and conversion.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Canare NTSC/PAL Optical to Electrical Converter, 1200nm - 1620nm Wavelength Specifications

  • Convertibility

    Optic to Electric (RX)

  • Wavelength

    1200 nm to 1620nm

  • Emission

    NA

  • Sensitivity

    -26 dBm

  • Video Connector

    1 x 75 Ohm BNC (Output)

  • Optical Converter

    1 x SC-type (Intput)

  • Signal to Noise Ratio

    60dB

  • Bandwidth

    6MHz

  • Typical Compliances

    SMPTE 170M, ITU-R BT.470, CB, CE UL/cUL, FCC Part15 ClassA, FDA, RoHS

  • Slot Occupancy

    1

  • Dimension (D x H x W)

    78.40 mm x 43.40 mm x 17 mm (3.09" x 1.71" x 0.67")

  • Weight

    84 g (0.19 lbs)

About Canare NTSC/PAL Optical to Electrical Converter, 1200nm - 1620nm Wavelength

The Canare Analog Video Optical Converter supports both NTSC and PAL video signals. It can transmit the Tri-Level Sync and extend communication up to 45 km.

Canare NTSC/PAL Optical to Electrical Converter, 1200nm - 1620nm Wavelength Features

  • Supports both NTSC and PAL video signals
  • Tri-Level Sync can be transmitted
  • Extends Communications up to 45 km (Condition: Line Loss 0.5dB/km)

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Seamlessly convert optical signals to electrical with this reliable video format converter.
  • Achieve high-resolution video output with a 6MHz bandwidth for superior image clarity.
  • Enjoy easy setup and integration with SMPTE & ITU-R compliances for format support.
  • Ensure low latency signal conversion, perfect for live streaming and critical video feeds.
  • Maintain a reliable connection with SC-type optical input and BNC output video connectors.
  • Experience a high signal-to-noise ratio (60dB) for pristine video capture and conversion.
