Canon RF-S 14-30mm f/4-6.3 IS STM PZ Lens

SKU: CAR1430 MFR: 6916C002
Earn VIP Reward Points

Key Features

  • Capture stunning landscapes with the Canon RF-S 14-30mm lens' ultra-wide angle.
  • Experience smooth, quiet STM autofocus, perfect for vlogging and filmmaking.
  • Compact & lightweight design makes this Canon lens ideal for travel photography.
  • Get sharp, stabilized images thanks to built-in image stabilization technology.
  • The RF-S 14-30mm is great for interiors, offering a broad field of view.
  • Explore creative power zoom options for dynamic video shots with this Canon lens.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

warranty-logo

Protect your product against accidents, breakage and more!

CarePAK PLUS provided through Canon offers protection from accidental damage such as drops, spills, power surges, and more including normal wear and tear, beyond the standard warranty period.

SELECT YOUR PROTECTION PLAN:

Canon RF-S 14-30mm f/4-6.3 Specifications

Lens
  • Focal Length

    14mm - 30mm

  • Maximum and Minimum Aperture

    f/4-f/6.3 - f/22-f/36

  • Lens Mount Type

    RF Mount (Plastic)

  • Lens Format

    APS-C

  • Compatible Cameras

    Canon EOS R-series, APS-C and full-frame

  • Minimum Focusing Distance

    5.9" (0.15m)

  • Maximum Magnification

    0.38x (at 30mm)

  • Field of View @ Minimum Focus Distance

    Approx. 7.2 x 4.8" (126 x 84mm) at 14mm; Approx. 7.2 x 4.8" (57 x 38mm) at 30mm

  • Angle of View (Diagonal)

    Approx. 88 Degree 30' - 48 Degree 50'

Optical Design

Jump to...
  • Lens Construction

    10 elements in 9 groups

  • Special Elements

    One UD Lens, Two Aspheric Lenses

  • Lens Coating

    Canon SSC (Super Spectra Coating)

  • Filter Size Diameter

    58mm

  • Aperture Blades

    7

  • Image Stabilization

    Provided via gyro sensors (1 each for yaw and pitch) (yaw/pitch directions)

Focusing

Jump to...
  • Focusing Drive System

    Leadscrew type STM

  • Full-time Manual Focusing

    Yes (Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)

  • Dual Pixel CMOS AF Coverage (H x V)

    EOS R- Approx. 88% x 100%
    EOS R5/R6 - Approx. 90% x100%
    EOS R7/RIO/R50 - Approx. 100% x 100%

Exterior Design

Jump to...
  • Control Ring

    Provided, with click-stops

  • Manual Focus Ring

    Electronic ring system
    Full-time Manual focus possible
    No physical limit to ring rotational angle

  • AFIMF Switch

    Provided

  • Power Zoom control ring

    Provided

  • Iris Ring

    Not Provided

  • Lens Function Button

    Not Provided

  • Distance Scale

    Not Provided

  • Distance Limiter Switch

    Not Provided

  • Dust / Weather Resistant Construction

    Not Provided

Physical

Jump to...
  • Color

    Black

  • Dimensions (Dia. x L)

    Approx. 2.7 x 2.4" (69.6 x 62mm)

  • Weight

    Approx. 6.3 oz (181g)

  • UPC Code

    013803382440

40 Accessories for Canon RF-S 14-30mm f/4-6.3 IS STM PZ Lens

  • All Accessories (40)
  • Filters (13)
  • Bags & Cases (3)
  • Cap Leash (2)
  • Lens Caps (4)
  • Lens Hoods (1)
  • Cleaning Accessories (14)
  • Extended Warranty (3)

About Canon RF-S 14-30mm f/4-6.3

Designed for Creators and Video.

The RF-S14-30mm F4-6.3 IS STM lens combines excellent optics and high performance, providing an ultra-wide angle of view in a compact, portable package, perfect for EOS R-Mount cameras with an APS-C sensor. The optical performance is highlighted by two Aspheric elements, and one Ultra-low Dispersion glass element. The RF-S14-30mm F4-6.3 IS STM delivers reliable, speedy and quiet wide-angle performance, making it an ideal lens for video and still creators.

Ultra-wide-angle Zoom

The RF-S14-30mm F4-6.3 IS STM lens' wide-angle coverage (35mm equivalent of approx. 22-48mm) picks up right where you need it for getting everything you want into your scene, and then zoom-in for intimate product close ups. This zoom range is also convenient for shooting on-the-go, and in tight spaces.

Canon RF-S14-30mm Lens zoom range is convenient for shooting on-the-go

The Power to Zoom

The RF-S14-30mm F4-6.3 IS STM lens features a Power Zoom function. This feature allows the user to twist the lens barrel left or right to initiate a multi-speed (customizable) powered zoom for smooth and professional looking results. This lens is able to be used with the built-in camera zoom lever on certain EOS camera models.

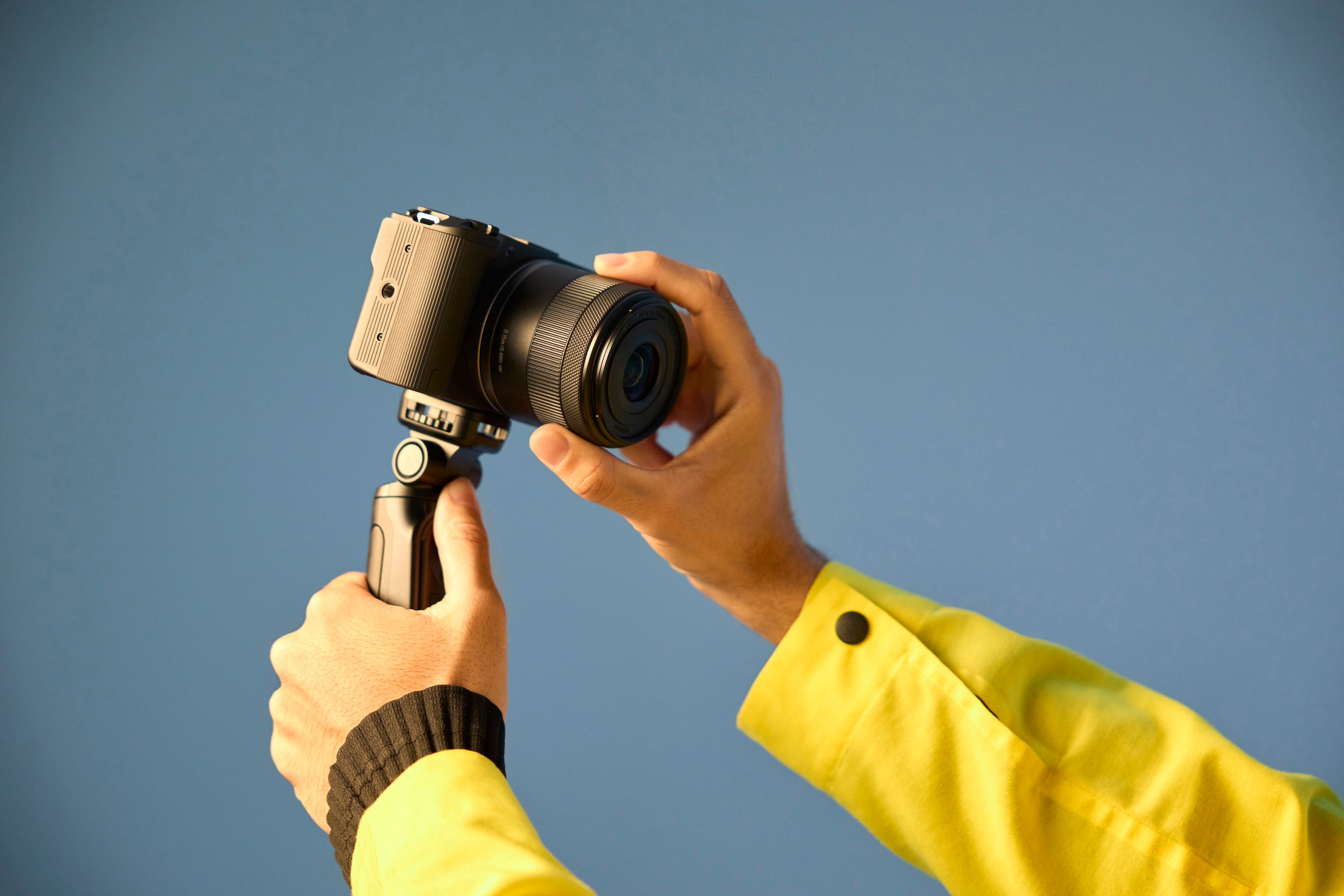

Canon RF-S14-30mm Lens features a Power Zoom function

Outstanding Image Quality

The RF-S14-30mm F4-6.3 IS STM features 1 UD element, and 2 aspherical lenses which achieves high image quality throughout the image from center to the edges while maintaining compactness. Even at its widest zoom setting, both optical and digital corrections combine to minimize any risk of darkening at the edges or bending of straight lines in a scene.

Canon RF-S14-30mm Lens features 1 UD element and 2 aspherical lenses

Get Up Close

Capture subjects in large detail with a maximum magnification of 0.38x (focusing down to 5.9 inches). This enables richly expressive close-up shots using the wide angle of view and bokeh an ultra-wide-angle lens can provide.

Canon RF-S14-30mm Lens lets you capture subjects in large detail with a maximum magnification of 0.38x

Optical Image Stabilization - Up to 5.0 stops of Shake Correction

To shoot with less blur even without a tripod handy, the RF-S14-30mm F4-6.3 IS STM features built-in Optical Image Stabilization, providing up to 5.0 stops of shake reduction even for night shots. When paired with an EOS R-mount camera that has In-Body Image Stabilization (IBIS), the Coordinated IS provides an IS effect of 7.5 at the center, and stops and 5.5 stops in the corners.

Canon RF-S14-30mm Lens features built-in Optical Image Stabilization

High-speed, Smooth and Quiet Autofocus

The lens features a leadscrew-type STM focus drive system which provides smooth and natural AF. This is especially beneficial to video users because of its combination of quiet operation and outstanding smoothness of focus changes during actual recording.

Canon RF-S14-30mm Lens features a leadscrew-type STM focus drive system which provides smooth and natural AF

Compact and Lightweight

At approximately 6.3 ounces (181g), the RF-S14-30mm F4-6.3 IS STM is extremely lightweight and compact, especially for a lens with a power zooming function built-in!

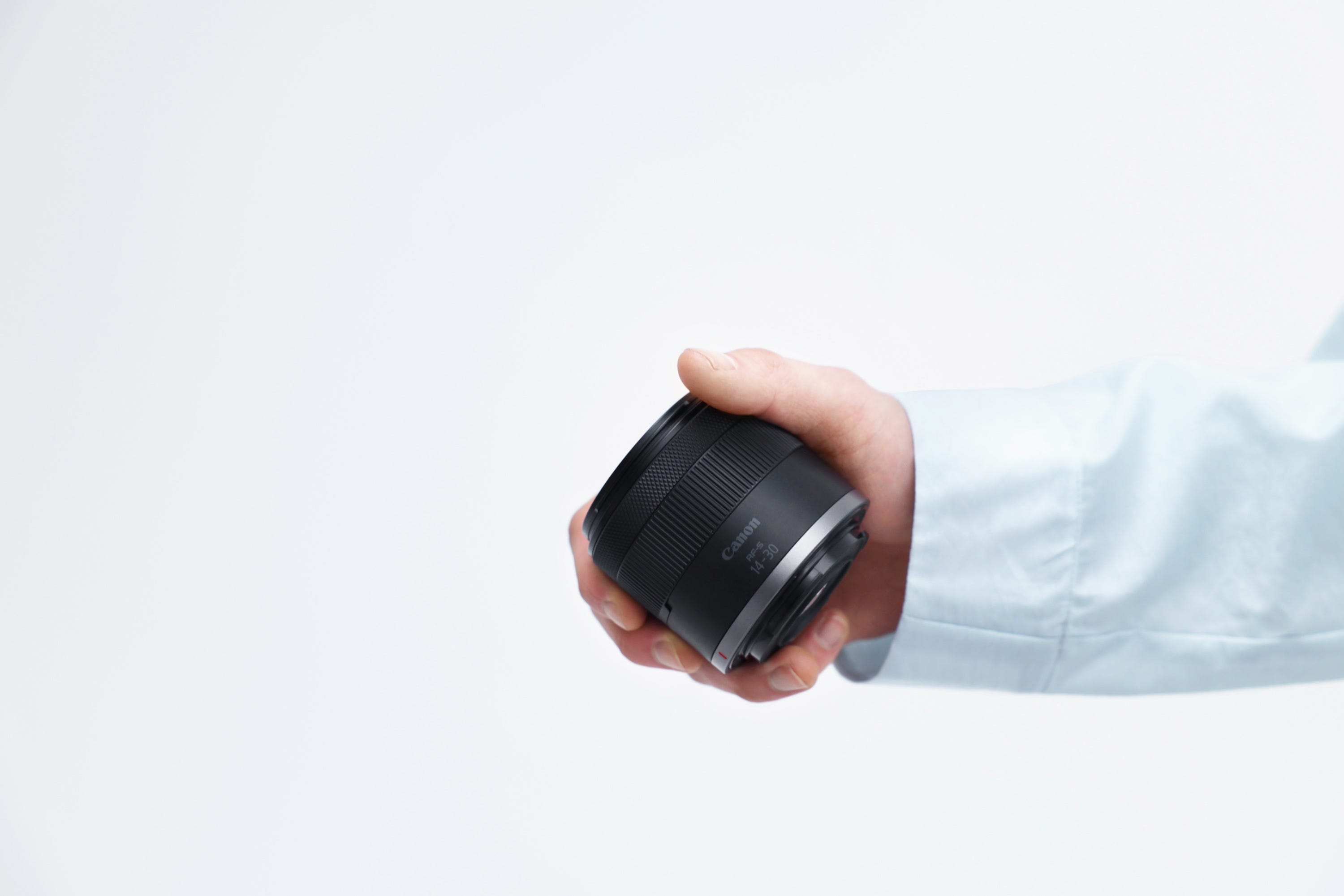

Canon RF-S14-30mm Lens is extremely lightweight and compact

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning landscapes with the Canon RF-S 14-30mm lens' ultra-wide angle.
  • Experience smooth, quiet STM autofocus, perfect for vlogging and filmmaking.
  • Compact & lightweight design makes this Canon lens ideal for travel photography.
  • Get sharp, stabilized images thanks to built-in image stabilization technology.
  • The RF-S 14-30mm is great for interiors, offering a broad field of view.
  • Explore creative power zoom options for dynamic video shots with this Canon lens.

What's in the box:

  • Canon RF-S 14-30mm f/4-6.3 IS STM PZ Lens
  • Lens Cap (E-58 II)
  • Dust Cap RF
  • Canon 1 Year Limited Warranty
