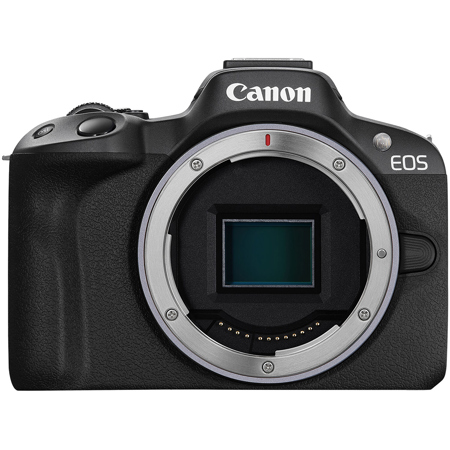

Canon EOS R50 Mirrorless Camera with Cropping Guide Firmware

Black

Digital interchangeable lens, mirrorless camera

DIGIC X

(One) SD card slot
Compatible with UHS-I
Eye-Fi cards and Multimedia cards (MMC) are not supported

Canon RF lens group (including RF-S lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

Canon RF mount

APS-C CMOS sensor (compatible with Dual Pixel CMOS AF)

Approx. 24.2 megapixels

Approx. 22.3 x 14.9mm

Approx. 3.72 microm square

Approx. 25.5 megapixels

3:2 (Horizontal: Vertical)

RGB primary color filters

Installed in front of the image sensor, non-detachable

Self Cleaning Sensor Unit not provided

Manual cleaning (by hand) not supported

Dust Delete Data acquisition and appending:
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images
The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots
Not available during focus bracket shooting

Compliant to Design rule for Camera File system 2.0 and Exif 2.31

JPEG (.JPG), HEIF (.HIF), RAW, C-RAW (.CR3)
Movies: ALL-I (Time-lapse video only), IPB (Light)

The following file numbers can be set:
File numbering methods
Continuous numbering: The numbering of captured images continues even after you replace the card

Auto reset: When you replace the card, the numbering will be reset to start from 0001. If the SD card already contains images, the numbering will continue from the last rec image in the card

Manual reset: Resets the file number to 0001, and creates a new folder automatic

Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported

Selectable between sRGB and Adobe RGB

(1) Auto
(2) Standard
(3) Portrait
(4) Landscape
(5) Fine Detail
(6) Neutral
(7) Faithful
(8) Monochrome
(9) User Defined 1-3

(1) Auto (Ambience priority/White priority)
(2) Daylight
(3) Shade
(4) Cloudy
(5) Tungsten light
(6) White fluorescent light
(7) Flash
(8) Custom (Custom WB)
(9) Color temperature

Option between ambience priority and white priority settings, using SET button

Blue/amber bias: +/-9 levels
Magenta/green bias: +/-9 levels
Shifted from the color temperature of the current WB mode
Blue/amber and magenta/green shift can be set at the same time
WB Bracketing available, up to +/-3 levels Blue/amber or magenta/green, via Quick Control Dial

OLED color electronic viewfinder; 0.39-inch, approx. 2.36 million dots

Approx. 100% (at JPEG Large image quality, 3:2 aspect ratio, approx. 22mm eyepoint)

Approx. 0.96 x / Approx. 28.0 Degree (3:2 aspect ratio, with 50mm lens at infinity,-1 m-1)

Approx. 22 mm (at -1 m-1 from eyepiece lens end)

Approx. -3.0 to +1.0 m-1 (dpt)

(1) Maximum burst
(2) Possible shots/Sec. until self-timer shoots
(3) Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer
(4) Shooting mode
(5) AF method
(6) AF operation
(7) Image quality
(8) Card
(9) Drive mode
(10) Metering mode
(11) No. of remaining shots for focus bracketing, multiple exposures, or interval timer
(12) Electronic level

(13) Movie recording time available
(14) Battery level
(15) Image Stabilizer (IS mode)
(16) Histogram (Brightness/RGB)
(17) Quick Control button
(18) Anti-flicker shooting
(19) White balance/White balance correction
(20) Picture style
(21) Auto Lighting Optimizer
(22) Still photo cropping / Aspect ratio
(23) AF point (1-point AF)
(24) AEB/FEB
(25) View Assist
(26) HDR PQ

(27) Flash ready / FE lock / High-speed sync
(28) Electronic shutter
(29) Touch shutter / Create folder
(30) AE lock
(31) Shutter speed / Multi-function lock warning
(32) Aperture value
(33) Wi-Fi function
(34) Wi-Fi signal strength
(35) Bluetooth function
(36) Exposure simulation
(37) Magnify button
(38) ISO speed
(39) Highlight tone priority
(40) Exposure compensation
(41) Exposure level indicator

Dual Pixel CMOS AF

AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%
(100% x 100% AF coverage in Face Detect + Tracking AF; coverage can vary, depending upon lens being used)
Stills: Max. 651 zones (31 x 21)
Movies: Max. 527 zones (31 x 17)

AF area: Horizontal: Approx. 90% x Vertical: Approx. 100%
Stills: Max. 4503 positions (79 x 57)
Movies: Max 3713 positions (79 x 47)

EV -4.0 to 20 (with an f/1.2 lens, center AF point, One-Shot AF at room temperature, and ISO 100) (still photo shooting)

EV -3.5 to 20 (with an f/1.2 lens, center AF point, One-Shot AF at room temperature, ISO 100, and 29.97 / 25.00 fps.) (movie recording)

Spot AF
1-point AF
Expand AF area: Above/below/left/right
Expand AF area: Around
Flexible Zone AF 1
Flexible Zone AF 2
Flexible Zone AF 3
Whole area AF

Auto
People
Animals (dogs / cats / birds)
Vehicles (motorsports cars or motorcycles)

Auto:
Selects the eye closer to the camera (as detected from the angle of the face)
At the same distance from the camera, selects the eye closer to the center of the AF area

Left/right eye detection: Not supported

Yes

Real-time metering from CMOS image sensor (384 [24x16] metering zones)
(1) Evaluative metering (AF point-linked)
(2) Partial metering (approx. 5.8% of the area at the center of the screen)
(3) Spot metering (approx. 2.9% of the area at the center of the screen)
(4) Center-weighted average metering

Still Photo Shooting: EV -2 to 20
Movie Recording: EV 0 to 20

Still Photo Shooting:
(1) Scene Intelligent Auto
(2) Hybrid Auto
(3) Special Scenes
(4) Creative Filters
(5) Flexible-priority AE
(6) Program AE
(7) Shutter-priority AE
(8) Aperture-priority AE
(9) Manual Exposure
(10) Bulb Exposure

Movie Recording:
(1) Movie for close-up demos
(2) Movie IS mode
(3) HDR movies
(4) Movie auto exposure
(5) Movie manual exposure
(6) Custom Shooting mode (C mode)

Normal Manually Set: ISO 100-32000 (in 1/3- or 1-stop increments)
Expanded Manually Set: H: (equivalent to ISO 51200)

User-set +/-3 stops (in 1/3-stop increments)
AEB +/-3 stops (in 1/3-stop increments)

(1) Automatic AE lock
In One-Shot AF mode, AE is locked as soon as subjects are in focus

(2) Manual AE lock: By using the AE Lock button in P, Tv, Av, and M mode
Toggling: Press again to cancel and once more to refresh
Enabled in all metering modes

Electronically controlled focal-plane shutter.
Rolling shutter, using the image sensor.
(1) Electronic first curtain
(2) Electronic shutter

Electronic 1st-curtain shutter: 1/4000th sec - 30 seconds, in 1/3-step increments
Electronic shutter: 1/8000th sec - 30 seconds, in 1/3-step increments

Elec. 1st-curtain: 1/250 sec.

Soft-touch electromagnetic release

10-sec. delay, 2-sec. delay, Continuous

In-body IS not provided.
Still Photo IS not supported.

Canon Multi-function accessory shoe
Optional Canon AD-E1 adapter required for conventional shoe-mount flashes and accessories

Ambience priority, standard, flash priority

+/-3 stops (in 1/3-stop increments)

E-TTL each shot / E-TTL 1st shot

Disable / Enable

Recording format: HEIF
Bit depth: 10 bit
Color sampling method: YCbCr 4:2:2
HDR specification: ITU-R BT.2100 (PQ)

Recording format: mp4
Bit depth: 10 bit
Color sampling method: YCbCr 4:2:2
HDR specification: ITU-R BT.2100 (PQ)

1 shot only / Every shot (still images)

Dual Pixel CMOS AF; Movie Servo AF available in AF Menu

+/-3 stops (in 1/3-stop increments)

Yes (Count up, Start time setting, Movie recording count, Movie play count, HDMI time code on/off, HDMI rec. command on/off, Drop frame enable/disable)

Not supported

29.97 (set to NTSC); 25.00fps (set to PAL)

TFT color, liquid-crystal monitor

3.0" (screen aspect ratio of 3:2)
2.95" (7.5cm) diagonal (2.44" (6.2cm) width, 1.65" (4.2cm) height)

Approx. 1.62 million dots

Approx. 100% vertically/horizontally

Manually adjustable to one of seven brightness levels

Supported for AF Point selection; Touch AF; Touch Shutter; Menu selection; Quick Control Menu;
Magnified View; Volume Touch Sounds: 0 (silent) to 5

Anti-smudge coating not provided.
Anti-reflection coating not provided.

29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Not supported

Brightness / RGB

The Quick Control screen can be accessed by pressing the Quick Control button during shooting, recording, or playback.

Users can customize setting items shown on the Quick Control screen.
Items shown: Up to 11
Edit layout / Reset settings / Clear all items

(1) Single image (select image)
(2) Select range
(3) All images in a folder
(4) All images on card
Image browsing and image search can be based on ratings
Ratings-based image selections also possible with DPP
(5) All found images (only during image search)

Except protected images
(1) Select images to erase
(2) Select range>
(3) All images in folder
(4) All images on card
(5) All found images (only during image search)

Images can be sent via Wi-Fi to a PictBridge-compatible (wireless LAN) printer and printed

Compliant to DPOF Version 1.1

Equivalent to IEEE 802.11b/g/n Standards

DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g/n)

(Central Frequency)
2.4 GHz band:
Frequency: 2412 to 2462 MHz
Channels: 1 to 11 channels

5.0 GHz band:
Not supported

(1) Camera access point mode
(2) Infrastructure mode

Images can be viewed, controlled, and received using a smartphone
Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications
Images can be sent to a smartphone
NFC connection: Not supported
Supported images: JPEG, HEIF, RAW/C-RAW, MP4 video files
Transcoding while sending: Size to send (original / reduced size); Quality to send (original / compressed)

The camera can be controlled via Wi-Fi or USB, with Canon EOS Utility software installed in a compatible Mac or Windows computer

Supported

image.canon: Video files (MP4) and JPEG, HEIF, RAW or C-RAW still images can be uploaded to image.canon servers.
From image.canon, images can be sent to specific social media and 3rd-party cloud image services

Bluetooth Specification Version 4.2 compliant (Bluetooth Low Energy technology)

GFSK modulation

Smartphone - up to 10 devices; BR-E1 remote controller - 1 unit

Dial direction during Tv/Av; Control ring rotation direction; Customize buttons; Customize dials

Functions can be assigned to the following camera controls:
Shutter button (half-press)
Movie shooting button
ISO speed button
AE lock button
Cross keys: Up button
Cross keys: Left button
Cross keys: Right button
Cross keys: Down button
Lens function button
Speedlight menu direct button

Customize control ring supported

Up to six top-tier menu items and Custom Functions can be registered
Up to five My Menu tabs can be added

Available

Equivalent to Hi-Speed USB (USB 2.0)
For PC communication / smartphone communication
Terminal type: USB Type-C
Shared with terminal for in-camera charging with USB Power Adapter PD-E1

HDMI micro OUT terminal (Type D)

Provided

3.5mm diameter stereo mini jack

Compatible with 3.5mm diameter stereo mini-plug

Canon LP-E17 battery pack
With the AC Adapter AC-E6N + DC Coupler DR-E18, AC power is possible (AC Adapter Kit ACK-E18 can also be used).
USB Power Adapter PD-E1 supports in-camera charging of Battery Pack LP-E17 when the camera is turned off and can supply power when the camera is turned on.

Not supported

Automatic battery check with 4-level display when the power switch is turned ON.

Approx. 0.4 sec. Based on CIPA testing standards

32-104 Degree F (0-40 Degree C)

85% or less

Required, included

Lithium-ion

Non-universal

1

Approx. 4.58 x 3.37 x 2.71" (116.3 x 85.5 x 68.8mm)

Body Only: 11.56 oz (328g)
Body with Accessory: 13.2 oz (375g)

660685275812
