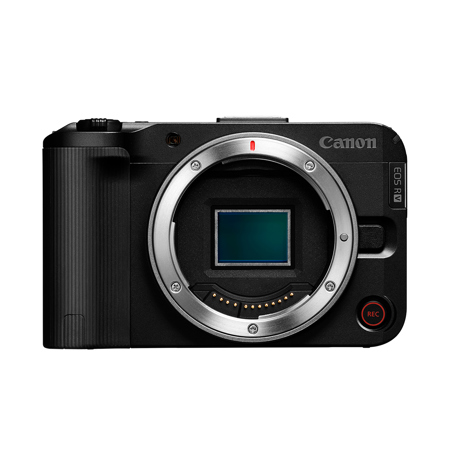

Canon EOS R50 V Mirrorless Camera Body

Digital interchangeable lens mirrorless camera

DIGIC X

(One) SD card slot
Compatible with UHS-II/UHS-I/UHS speed class/SD speed class
Eye-Fi cards and Multimedia cards (MMC) are not supported

Canon RF lenses (including RF-S lenses)
Canon RF-S3.9mm F3.5 STM Dual Fisheye lens and RF-S7.8mm F4 STM Dual lens

Canon RF mount

APS-C CMOS sensor (compatible with Dual Pixel CMOS AF)

Approx. 24.0 megapixels

3:2 (Horizontal: Vertical)

RGB primary color filters

Installed in front of the image sensor, non-detachable

Self Cleaning Sensor Unit not provided
Manual cleaning (by hand) not supported

Dust Delete Data acquisition and appending:
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images
The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots
Not available during focus bracket shooting

Compliant to Design rule for Camera File system 2.0 and Exif 2.31

JPEG (.JPG), HEIF (.HIF), RAW, C-RAW (.CR3)
Movies: XF-HEVC S YCC422 10 bit
XF-HEVC S YCC420 10 bit
XF-AVC S YCC422 10 bit
XF-AVC S YCC420 8 bit

RAW, C-RAW - 24.0 MP (6000 x 4000)
Large (L) - 24.0 MP (6000 x 4000)
Medium (M) - Approx. 10.6 MP (3984 x 2656)
S1 - Approx. 5.9 MP (2976 x 1984)
S2 - Approx. 3.8 MP (2400 x 1600)

The file numbers can be set:

1. File numbering methods:
Continuous numbering: The numbering of captured images continues even after you replace the card.
Auto reset: When you replace card, the numbering will be reset to start from 0001. If new SD card already contains images, numbering will continue from last recorded image in the card.

2. Manual reset:
Resets the file number to 0001, and creates a new folder automatically.

Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.

sRGB (HDR PQ images - BT.2020)

(1) Auto
(2) Standard
(3) Portrait
(4) Landscape
(5) Fine Detail
(6) Neutral
(7) Faithful
(8) Monochrome
(9) User Defined 1-3

(1) Auto (Ambience priority/White priority)
(2) Daylight
(3) Shade
(4) Cloudy
(5) Tungsten light
(6) White fluorescent light
(7) Flash
(8) Manual
(9) Color temperature 1
(10) Color temperature 2 Approx. 2500K-10000K
(11) Color temperature 2 Set in 100K increments
(12) Color temperature 4

Option between ambience priority and white priority settings, using SET button

Blue/amber bias: +/-9 levels
Magenta/green bias: +/-9 levels
Shifted from the color temperature of the current WB mode
Blue/amber and magenta/green shift can be set at the same time (WB Bracketing not supported)

Dual Pixel CMOS AF

AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%
(100% x 100% AF coverage in Face Detect + Tracking AF; coverage can vary, depending upon lens being used)
Stills: Max. 651 zones (31 x 21)
Movies: Max. 527 zones (31 x17)

AF area: Horizontal: Approx. 90% x Vertical: Approx. 100%
Stills: Max. 4503 positions (79 x 57)
Movies: Max 3713 positions (79 x 47)

EV -5.0 to 20 (with an f/1.2 lens, center AF point, One-Shot AF at room temperature, and ISO 100) (still photo shooting)

EV -2.5 to 20 (with an f/1.2 lens, center AF point, One-Shot AF at room temperature, ISO 100, and 29.97 / 25.00 fps.)

Spot AF
1-point AF
Expand AF area: Above/below/left/right
Expand AF area: Around
Flexible Zone AF 1
Flexible Zone AF 2
Flexible Zone AF 3
Whole area AF
(still images and movies)

Auto
People
Animals (dogs / cats / birds/ horses)
Vehicles (motorsports cars / motorcycles / airplanes / trains)
(still images and movies)

Auto:
Selects the eye closer to the camera (as detected from the angle of the face)
At the same distance from the camera, selects the eye closer to the center of the AF area

Left/right eye detection: Supported (refers to subject's left/right eye)

Dial direction during Tv/Av; Control ring rotation direction; Customize buttons; Customize dials

Up to six top-tier menu items and Custom Functions can be registered
Up to five My Menu tabs can be added

My Menu tab overall operations:
Adding a tab
Deleting tabs in a batch
Deleting all tab items
Setting the menu display

My Menu tab detailed operations:
Selecting a registered item
Sorting registered items
Deleting selected registered items

Deleting registered items in a batch
Deleting tabs
Rename tab (16 ASCII characters)

Real-time metering from CMOS image sensor (384 [24x16] metering zones)
(1) Evaluative metering (AF point-linked)
(2) Partial metering (approx. 5.8% of the area at the center of the screen)
(3) Spot metering (approx. 2.9% of the area at the center of the screen)
(4) Center-weighted average metering

Still Photo Shooting: EV -5 to 20
Movie Recording: EV -2.5 to 20 (4K) / EV -3.0 to 20 (Full HD)

Still photo shooting:
Full Auto (A+), P, Tv, Av, M
Self-portrait, Portrait, Smooth skin, Panoramic shot, Food, Handheld Night Scene

Movie recording:
Movie auto exposure, Shutter-priority (Tv), Aperture-priority (Av), Movie Manual exposure

Manually Set:
Normal: ISO 100-32000 (in 1/3- or 1-stop increments)
Expanded: H: (equivalent to ISO 51200)

User-set: +/-3 stops (in 1/3-stop increments)
AEB: +/-3 stops (in 1/3-stop increments)

(1) Automatic AE lock: In One-Shot AF mode, AE is locked as soon as subjects are in focus

(2) User-applied AE lock:
By using the AE Lock button in P, Tv, Av, and M mode
Toggling: Press again to cancel and once more to refresh
Enabled in all metering modes

Electronically controlled focal-plane shutter.
Rolling shutter, using the image sensor.
(1) Electronic first curtain
(2) Electronic shutter

Electronic 1st-curtain shutter: 1/4000th sec - 30 seconds, in 1/3-step increments
Electronic shutter: 1/8000th sec - 30 seconds, in 1/3-step increments

Elec. 1st-curtain: 1/250 sec. (flash not possible with Electronic shutter)

Soft-touch electromagnetic release

10-sec. delay, 2-sec. delay, Continuous

In-body IS not provided (lens optical Image Stabilization supported)

Evaluative (Face Priority) / Evaluative / Average

Canon Multi-function accessory shoe:
Optional Canon AD-E1 adapter required for conventional shoe-mount flashes and accessories
No traditional flash contacts on accessory shoe

Ambience priority, standard, flash priority

+/-3 stops (in 1/3-stop increments)

E-TTL each shot / E-TTL 1st shot

HDR PQ (HEIF images)
HDR mode (final image composited from three initial images)
HDR PQ and HDR can be combined

Recording format: HEIF
Bit depth: 10 bit
Color sampling method: YCbCr 4:2:2
HDR specification: ITU-R BT.2100 (PQ)

According to setting of movie recording format

1 shot only / Every shot (HDR mode shooting only)

4K (UHD only; 3840 x 2160 (16:9) - oversampled from 6K recording
4K Crop (3840 x 2160; not oversampled)
Full HD (1920 x 1080)

Not Available

LongGOP (equivalent to IPB); Intra (= All-I) for Time Lapse video recording

Canon 709
Canon Log 3
PQ (HDR PQ; BT.2020
HLG (BT.2020)
BT.709 Standard
(in CP/Custom Picture menu)

Available (video shooting info display can be rotated, for shooting & playback)
Vertical tripod socket on grip side of camera
Auto Level display available during video recording

Built-in mic; separate Left & Right Stereo inputs
Noise detection mic (for AF focus drive noise, white/floor noise)
16-bit/2 CH or 24-bit/4 CH recording possible (2 ch for built-in mic)
48 kHz sampling frequency

3.5mm stereo mini-jack (3-pin) for external mics
Digital mic input at Multi-function Shoe (Canon DM-E1D Stereo Microphone, etc.)
Auto or Manual sound recording levels
3.5mm Headphone terminal (stereo mini-jack)

Container format: MP4
Bit depth: 8 bit (Off) | 10 bit (On)
Compression: H.264 / MPEG-4 AVC (Off) | H.265 / HEVC (On)
Video signal recording range: Full range (0-255) (Off) | Full range (0-1023) (On)
Color sampling method: YCbCr 4:2:0 (Off) | YCbCr 4:2:2 (On)
Standards compliance: Rec. ITU-R BT.709 (Off) | Rec. ITU-R BT.2100 (On)
Color gamut: Rec.709 (Off) | Rec.2020 (On)
Audio: AAC 48 kHz / 16 bit / 2CH

One Shot AF; Movie Servo AF available in AF Menu

+/-3 stops (in 1/3-stop increments)

Yes (Count up, Start time setting, Movie recording count, Movie play count, HDMI time code on/off, HDMI rec. command on/off, Drop frame enable/disable)

Not supported

High Frame Rate recording (FHD only) up to 119.98 fps
S & F (Slow & Fast recording mode): 120p, 60p, 30p, 12p, 6p, 3p
User-selectable playback speed: 23.98p, 29.97p, or 59.94p
Full HD only
Audio not recorded

Frame Rate 29.97 (set to NTSC); 25.00fps (set to PAL)

TFT color, liquid-crystal monitor

3.0" (screen aspect ratio of 3:2)
2.95" (7.5cm) diagonal (2.44" (6.2cm) width, 1.65" (4.2cm) height)

Approx. 1.04 million dots

Approx. 100% vertically/horizontally

Manually adjustable to one of seven brightness levels

Supported for AF Point selection; Touch AF; Touch Shutter; Menu selection; Quick Control Menu; Magnified View; Volume Touch Sounds: 0 (silent) to 5

Anti-smudge coating not provided
Anti-reflection coating not provided

29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Magnify zoom display: 1.5 x-10 x (15 levels) (Still Photo)
Electronic Level Size: Large/Small
Card Free (%) Display: Off / On (Still Photo)
Grid display: Off / 3 x3 / 6 x4 / 3 x3+diag
Zebra display: Yes (Movie)
False Color display: Supported (six colors based on brightness level) (Movie)

Rating:
OFF / 1 to 5 Stars
Select images / Select range / All images in folder / All images on card / All found images

Image Search:
Search conditions
Rating / Date / Folder / Protection / Type of file

Protect: Select images / Select range / All images in folder / Unprotect all images in folder / All images on card / Unprotect all images on card / All found images

Shooting information display: No information display / Basic information display / Detailed shooting information display

Blinking highlights during single image with info playback only
cannot be user-enabled or disabled

Brightness / RGB

Not available

The Quick Control screen can be accessed by pressing the Quick Control button during shooting, recording, or playback.

The following settings can be set in the [Quick Ctrl screen] menu during movie recording.

Three options during video recording:
Q1; Q2; Q3
Display position selectable in Q1
User-selectable in red Shooting Menu

(1) Single image (select image)
(2) Select range
(3) All images in a folder
(4) All images on card
Image browsing and image search can be based on ratings
Ratings-based image selections also possible with DPP

(5) All found images (only during image search)

Except protected images
(1) Select images to erase
(2) Select range
(3) All images in folder
(4) All images on card
(5) All found images (only during image search)

Not compatible with Direct printing / Pictbridge

Compliant to DPOF Version 1.1

Equivalent to IEEE 802.11b/g/n/a/ac Standards

DS-SS modulation (IEEE 802.11b)
OFDM modulation - CSMA / CA (IEEE 802.11g/n/a/ac)

2.4 GHz band:
Frequency: 2412 to 2462 MHz
Channels: 1 to 11 channels

5.0 GHz band:
Frequency: 5180 to 5825 MHz
Channels: 36 to 165 channels

(1) Camera access point mode
(2) Infrastructure mode

Images can be viewed, controlled, and received using a smartphone
Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications
Images can be sent to a smartphone
NFC connection: Not supported
Supported images: JPEG, HEIF, RAW/C-RAW, MP4 video files
Transcoding while sending: Size to send (original / reduced size); Quality to send (original / compressed)

The camera can be controlled via Wi-Fi or USB, with Canon EOS Utility software installed in a compatible Mac or Windows computer.

Supported

image. Canon: Video files (MP4) and JPEG, HEIF, RAW or C-RAW still images can be uploaded to image. Canon servers.
From image. Canon, images can be sent to specific social media and 3rd-party cloud image services.

Bluetooth Specification Version 4.2 compliant (Bluetooth Low Energy technology)

GFSK modulation

Smartphone - up to 10 devices; BR-E1 remote controller - 1 unit

Available

Available

Available

Available

Equivalent to Super-Speed Plus USB (USB 3.2 Gen 2)
For PC communication / smartphone communication (Live streaming not possible through USB)
Terminal type: USB Type-C
Shared with terminal for in-camera charging with USB Power Adapter PD-E1

HDMI micro OUT terminal (Type D)

Provided

3-Pin Microphone IN

3.5mm diameter stereo mini-plug

Canon E3 type (single pin socket)

Canon LP-E17 battery pack
Battery charger: Canon LC-E17 charger; supplied with camera
With the AC Adapter AC-E6N + DC Coupler DR-E18, AC power is possible (AC Adapter Kit ACK-E18 can also be used).
USB Power Adapter PD-E1 or PD-E2 supports in-camera charging of Battery Pack LP-E17 when the camera is turned off and can supply power when the camera is turned on.

Not supported

Automatic battery check with 4-level display when the power switch is turned ON.

Approx. 0.4 sec.
Based on CIPA testing standards

32-104 Degree F (0-40 Degree C) working range

85% or less working range

Required, included

Lithium ion

LP-E

1

Black

Approx. 4.58 x 3.37 x 2.71" (116.3 x 85.5 x 68.8mm)

Approx. 13 oz (370g) (Body with battery)

013803382150
