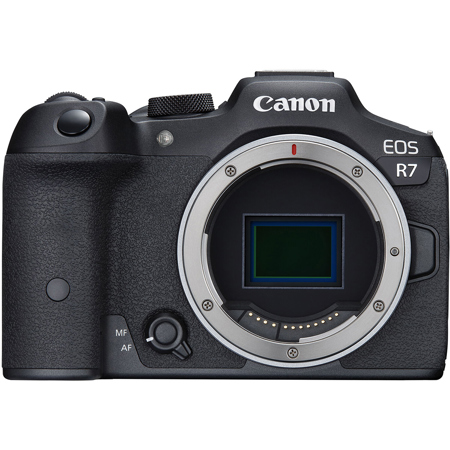

Canon EOS R7 Mirrorless Camera with Cropping Guide Firmware

Digital single-lens non-reflex AF/AE camera

DIGIC X

SD card
SD card speed class-compatible.
Compatible with UHS-II
Eye-Fi cards and Multimedia cards (MMC) are not supported.

Canon RF-S/RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

Canon RF mount

CMOS sensor (compatible with Dual Pixel CMOS AF)

Approx. 32.5 megapixels

Approx. 22.3 x 14.8mm

Approx. 3.2 microm square

Approx. 34.4 megapixels

3:2 (Horizontal: Vertical)

RGB primary color filters

Installed in front of the image sensor, non-detachable

Compliant to Design rule for Camera File system 2.0 and Exif 2.31

Still: JPEG, HEIF, RAW, Dual Pixel RAW, Raw Burst, C-RAW (CR3);
Movies: ALL-I, IPB, IPB Light

(1) 1 shot only
(2) Every shot

(1) Focus Bracketing
(2) Interval Timer
(3) Bulb Timer
(4) Multi-Shot NR

3:2 Aspect Ratio
Large/HEIF/RAW: 6960 x 4640
Medium: 4800 x 3200
Small 1: 3472 x 2320
Small 2: 2400 x 1600

4:3 Aspect Ratio
Large: 6160 x 4640
Medium: 4256 x 3200
Small 1: 3072 x 2320
Small 2: 2112 x 1600
RAW: 6960 x 4640

16:9 Aspect Ratio
Large: 6960 x 3904
Medium: 4800 x 2688
Small 1: 3472 x 1952
Small 2: 2400 x 1344
RAW: 6960 x 4640

1:1 Aspect Ratio
Large: 4640 x 4640
Medium: 3200 x 3200
Small 1: 2320 x 2320
Small 2: 1600 x 1600
RAW: 6960 x 4640

Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.

Selectable between sRGB and Adobe RGB

Auto
Standard
Portrait
Landscape
Fine Detail
Neutral
Faithful
Monochrome
User Defined 1-3

Auto (Ambience priority/White priority)
Day Light
Shade
Cloudy
Tungsten light
White fluorescent light
Flash
Custom (Custom WB)
Color temperature

Option between ambience priority and white priority settings.

Blue/amber bias: +/-9 levels
Magenta/green bias: +/-9 levels
Corrected in reference to the current WB mode's color temperature.
Blue/amber and magenta/green shift can be set at the same time.

OLED color electronic viewfinder; approx. 2.36 million dots resolution

Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 22mm eyepoint).

Approx. 1.15x / Approx. 33 degrees (with 3:2 display, an 50mm lens at infinity, -1 m--1)

Approx. 22mm (at -1 m-1 from the eyepiece lens end)

Approx. -4.0 to + 2.0 m-1 (dpt)

Dual Pixel CMOS AF

AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%
Stills: Max. 651 zones (31 x 21)
Movies: Max. 527 zones (31 x 17)

EV -5 to 20 (f/1.2 lens, center AF point, One-Shot AF, at room temperature, ISO 100)

Full HD 29.97fps : EV -3.5 to 20
With an f/1.2 lens, center AF point, One-Shot room temperature, ISO 100

Whole area AF
Spot AF
1-point AF
Expand AF Area
(Above, below, left and right/Around)
Expand AF Area: Around
Flexible Zone AF 1,2,3

People, Animals, Vehicles, No Priority

AF / MF
Applies when an RF or RF-S lens without a focus mode switch is attached.
When lenses with a focus mode switch are attached, the setting on the lens takes precedence.

Real-time metering with image sensor (384 [24x16 zone metering])
Evaluative metering
Partial metering (approx. 6.0% of the area at the center of the screen)
Spot metering (approx. 3.0% of the area at the center of the screen)
Center-weighted average metering

Still Photo Shooting : EV -2 to 20 (at room temperature, ISO 100)
Movie Recording: EV 0 to 20 (at room temperature, ISO 100)

Manual: Photo & Movie: +/- 3 stops in 1/3- or 1/2-stop increments
AEB: Photo: +/- 3 stops in 1/3- or 1/2-stop increments

Auto AE lock
The metering mode for AE lock after one-shot focus can be customized in the AE lock meter menu.
User-applied AE lock
In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
Enabled in all metering modes.

Mechanical
Electronic 1st-Curtain
Electronic Shutter (1st and 2nd curtain - silent)

When [Mechanical] or [Elec. 1st- curtain] is set: 1/8000-30 sec, bulb
When [Electronic] is set: 1/16000-30 sec.

Mechanical Shutter: 1/250 sec.
Elec. 1st-curtain: 1/320 sec.

Soft-touch electromagnetic release

10-sec. delay, 2-sec. delay

Mechanical Shutter: Approx. 99ms
Electronic 1st Curtain: Approx. 50ms
Electronic shutter: Approx. 50ms

In-body IS operation can be selected when using a non-IS lens.
Always on
Only for shot

Ambience priority, standard, flash priority

Canon EX- and EL-series Speedlites

Evaluative (Face Priority)
Evaluative
Average

Mechanical Shutter
1/250-30 sec. auto
1/250-1/60 sec. auto
1/250 sec. (fixed)

Electronic 1st curtain
1/320-30 sec. auto
1/320-1/60 sec. auto
1/320 sec. (fixed)

Provided for EX- and EL-series Speedlites

+/-3 stops in 1/3- or 1/2-stop increments

E-TTL each shot
E-TTL 1st shot

Disable / Enable

Recording format: HEIF
Bit depth: 10 bit
Color sampling method: YCbCr 4:2:2
HDR specification: Rec. ITU-R BT.2100 (PQ)

Recording format: MP4
Bit depth: 10 bit
Color sampling method: YCbCr 4:2:2
HDR specification: Rec. ITU-R BT.2100 (PQ)

Dual Pixel CMOS AF II

+/-3 stops in 1/3- or 1/2-stop increments

Canon Log 3

The camera warns of rising internal temperatures by means of icons and indicators.

Estimated recovery times are indicated below. These are affected by various factors such as ambient temperature, continued camera operation and the selected shooting resolution. The time until full record time is available, will vary with ambient temperature.

TFT color, liquid-crystal monitor

3.0-inch (screen aspect ratio of 3:2)

Approx. 1.62 million dots

Approx. 100% vertically/horizontally

Manually adjustable to one of seven brightness levels

Anti-smudge coating applied.
Anti-reflection coating not applied.

29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

The white areas with no image data will blink.

Brightness and RGB

The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting.

Single image (select image)
Select range
All images in a folder
All images on card
Image browsing and image search can be based on ratings.
Ratings-based image selections also possible with DPP.
All found images (only during image search)

Except protected images
Select images to erase
Select range
All images in folder
All images on card
All found images (only during image search)

Not supported

Compliant to DPOF Version 1.1

IEEE 802.11b/g/n

DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g/n/a/ac)

2.4 GHz band
Frequency: 2412 to 2462 MHz Channels: 1 to 11 channels

Images can be viewed, controlled, and received using a smartphone.
Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
Images can be sent to a smartphone.
Firmware can be downloaded and saved to a card in the camera using Camera Connect.

The camera can be controlled via Wi-Fii using EOS Utility.

Supported.

Still photos (RAW, C-RAW, HEIF, and JPEG) and movies (MP4) can be uploaded to image.canon server album.
With the image.canon server, images can be sent to social media or a photo album link can be sent

Bluetooth Specification Version 4.2 compliant (Bluetooth low energy technology)

GFSK modulation

Equivalent to Superspeed Plus USB (USB 3.2 Gen 2)
For PC communication
Terminal type: USB Type-C
Shared with terminal for in-camera charging with USB Power Adapter PD-E1.
In-camera Charging: Equivalent to USB type-C (5 V/1.5 A), but use should be restricted to USB Power Adapter PD-E1.

Operation with the following USB cables has been verified when connected to an iPhone. Regardless of which cable is used, set the camera power to before connecting the cable.
When connecting a USB Type-C to Lightning cable
Use an Anker 514 Lightning to USB-C Accessory Cable (0.9 m, for Camera).
When connecting a USB Type-C to USB Type-C cable
Genuine Canon accessories are recommended (Interface Cable IFC-100U or IFC-400U).

HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible
Images can be displayed through the HDMI output and on screen at the same time.
Images will not be displayed unless [NTSC] or [PAL] is properly set according to the video system of the TV set.

Provided

3.5mm diameter stereo mini jack

3.5mm diameter stereo mini jack

Remote Switch RS-60E3 type terminal supported

Compatible with the Wireless Remote Control BR-E1
Compatible with infrared remote controls such as Remote Controller RC-6

Supported

LP-E6NH/LP-E6N/LP-E6
With the AC Adapter AC-E6N + DC Coupler DR-E6, AC power is possible.
With the USB Power Adapter PD-E1, in-camera charging of LP-E6NH is possible.

Automatic battery check when the power switch is turned ON.
Displayed in 6 levels on top LCD panel.
Battery level can be checked on the LCD panel and in the viewfinder.
Battery Info display in Set-up Menu:
Type of power source used.
Remaining capacity (percentage of battery charge remaining).
Recharge performance: (3-level display of battery's ability to hold a charge)

Approx. 0.4 sec.

32-104 F (0-+40C)

85% or less

Required, included

Lithium-ion

Non universal

1

Approx. 5.20 x 3.56 x 3.61" (132 x 90.4 x 91.7mm)

Approx. 18.70 oz (530.13g) (Body Only)
Approx. 21.59 oz (612.06g) (With battery and Memory Card)

660685275799
