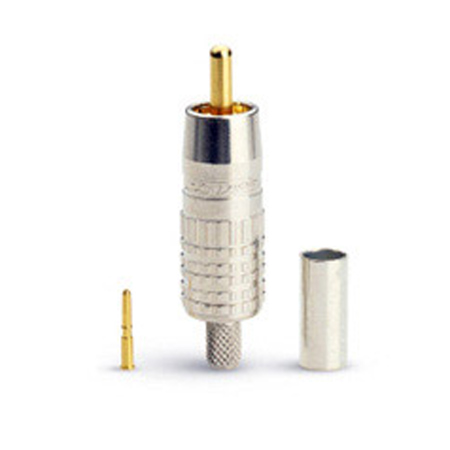

Canare RCAP-C53 75 Ohms RCA Crimp Plug for Belden 1694A/9116/9066 Cable

SKU: CARCAPC53 MFR: RCAP-C53
$7.99
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with these 75 Ohm Canare RCA crimp plugs.
  • Achieve optimal compatibility with Belden 1694A/9116/9066 cable using these connectors.
  • Ensure long-lasting durability with gold-plated phosphor bronze center contacts.
  • Enjoy high-resolution video and digital audio with a bandwidth up to 200MHz.
  • Create reliable multimedia patchcords and home theater installations effortlessly.
  • Benefit from >55lbs cable retention for secure and stable audio connections.
See More Product Details
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Irwin S : quality and priceivan d : they are good choice...

Reviews about this item

Review Summary

Canare RCAP-C53 Specifications

  • Compatibility

    Belden 1694A/9116/9066 Cable

  • Cable

    L-4.5CHD, 1694A, 9066, 9116, 9118, 9248

  • Boot

    CB26

  • Crimp Die

    TCD-35CA

  • Crimp Pin

    B11020D

  • Sleeve

    BN7046

  • Parts

    Body, Crimp Pin, Sleeve

  • Impedance

    75 Ohms

  • Bandwidth VSWR (Return Loss)

    <1.1 (>26dB) DC to 200MHz

  • Body Material (Plating)

    Brass (Nickel)

  • Center Contact Material (Plating)

    Phosphor Bronze (Gold)

  • Outer Contact Material (Plating)

    Beryllium Copper (Gold)

  • Dielectric Material

    PPO Noryl

  • Crimp Pin Material (Plating)

    Brass (Gold)

  • Crimp Sleeve Material (Plating)

    Copper (Tin)

  • Cable Retention

    >55lbs (>24.9kg)

  • Insulation Resistance at 500V DC

    >100M Ohms

  • Voltage Rating for 1 Min.(RMS)

    500V AC

  • Center Contact Resistance

    <10m Ohms

  • Applications

    Multimedia Patchcords
    Hi-Res Video Monitors
    SPDIF Digital Audio
    Duplication Decks
    VCR and Camcorders
    Audio Interconnects
    Home Theater Installations

  • UPC Code

    998390927017

About Canare RCAP-C53

Explore the precision-engineered Canare RCAP-C53 75 Ohms RCA Crimp Plug, designed to provide exceptional analog and digital electrical performance with a usable bandwidth up to 200MHz. This high-quality connector is meticulously impedance-matched to ensure optimal signal integrity, making it an ideal choice for professionals seeking durable and reliable audio and video connections.

Crafted with a robust 3-piece design, the Canare RCAP-C53 ensures consistent and extremely reliable terminations across a broad range of 75 ohm coaxial cable sizes, including the widely utilized Belden 1694A, 9116, and 9066 cables. The sturdy construction of this RCA crimp plug not only enhances its longevity but also contributes to its strong and stable connection, which is critical in maintaining the quality of your audio and video signals.

The innovative design of the Canare RCAP-C53 significantly reduces setup and assembly time by more than 80%, as it eliminates the need for any soldering during installation. This feature is particularly beneficial for professionals who require efficient and time-saving solutions without compromising on the quality of their connections.

Whether you're connecting a television to a sound system or a camera to a video recorder, the Canare RCAP-C53 RCA Crimp Plug stands out as a reliable and high-quality component in your audio and video toolkit. Its compatibility with industry-standard cables and the reputation of Canare as a leading brand in the professional audio and video industry make this RCA crimp plug a versatile and indispensable accessory for a wide array of applications.

Canare RCAP-C53 Features

  • Standard 75 ohm construction Crimp Pin & Sleeve
  • DC to 200MHz >26dB Return Loss (less than 1.1 VSWR)
  • Absolutely No Soldering Required
  • Assembly Time Reduced by 80%
  • Superior cable pull strength
  • Internal Pressure Contact Fingers
  • Gold plated center Shaft
  • Easy Assembly using Canare Strip & Crimp Tools
  • Operating temperature -20 to +60 degrees Celsius

Warranty Information

This product has a limited warranty of 12 months.
