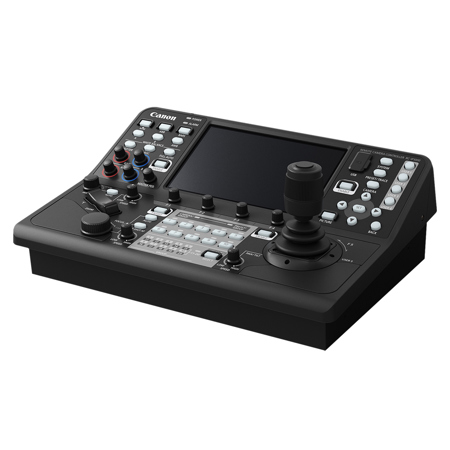

Canon RC-IP1000 Remote Camera Controller

If you're seeking precise and efficient control over multiple PTZ cameras, the RC-IP1000 Remote Camera Controller is your ideal solution. This advanced PTZ controller is designed to streamline multi-camera operations with its innovative control interface. It boasts 42 buttons and 14 dials, including assignable buttons, programmable trace operation, and adjustable speed and response controls.

The RC-IP1000 features a 7-inch touch panel that offers clear visibility and touch-screen control. This panel displays operation menus and camera video feeds, allowing operators to manage up to 200 cameras over IP. This makes the RC-IP1000 an invaluable tool for large multi-camera productions.

The touch panel also supports touch autofocus, and when paired with Canon's add-on auto tracking capabilities, ensures your subject remains in sharp focus and in-frame. For compatible Canon PTZ cameras that offer face and eye detection, operators can select the focus target with a simple touch on-screen.

The RC-IP1000's touch panel multi-display feature allows operators to view multiple camera feeds in either 2x2 or 3x3 layouts, providing a comprehensive view of up to nine camera feeds on a single screen. This feature allows operators to quickly select and control any displayed camera.

The RC-IP1000's layout is designed for clarity and ease of operation. It provides quick access to camera settings, status, and live video feeds, and supports touch focus and crop frame control. The control panel is designed for instant activation of functions, with LEDs used to display equipment status.

For customized operation, the control lever and zoom rocker reaction rates and speeds can be adjusted, as well as the pan-tilt speed and angle of the control joystick. The RC-IP1000 also supports a multi-preset function that allows multiple cameras to move simultaneously to a predetermined angle of view.

The RC-IP1000 supports a wide range of video interfaces, including 4K 60P video input/output via 12G-SDI, IP image input, and HDMI output. It also displays camera OSD menus from compatible cameras on the touch panel, allowing users to configure settings using familiar screens.

The RC-IP1000 supports Canon's XC Protocol over IP, enabling one-to-many control for up to 200 cameras. It also supports up to 5 Canon products connected via serial connection via NU Protocol. Power can be supplied via PoE+ or a versatile 12V DC 4-pin XLR power connector.

The RC-IP1000 also supports in-camera Add-On Applications, such as Auto Tracking or Auto loop, allowing for setting adjustments and fine tuning of operation. The controller can be connected to a switcher using SDI/GPIO, enabling synchronization of switcher video selection with controller camera selection.

In summary, the RC-IP1000 Remote Camera Controller is a powerful tool for multi-camera productions, offering intuitive control, advanced features, and compatibility with a wide range of video interfaces.
