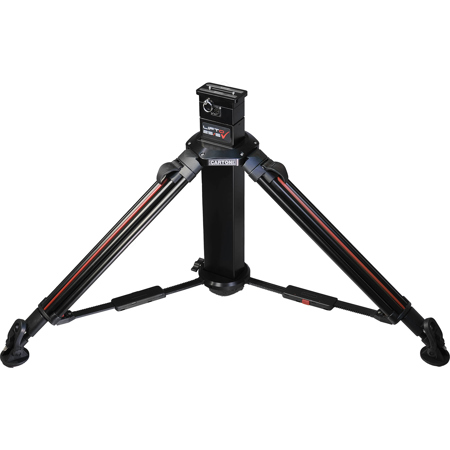

Cartoni Lifto 25/S Motorized Elevation Pedestal Column with Mid-Level Spreader for PTZ Camera

The Cartoni Lifto 25/S was specifically designed for PTZ cameras, bringing extremely smooth on-air quality vertical movements and creativity to enhance productions. This solution adds to the Pan & Tilt, and zoom control, additional height movement as a natural feature.

Lifto 25/S Motorized Elevation Column offers broadcast quality performance and height range at a competitive price.

Setting up in minutes, the Lifto 25/S with an easy and reliable hardwire hand control unit allows for continuous movement throughout the range and 3 position pre-settings. The perfect solution for small studios, educational, live events and House Of Worship.

The easy and reliable control unit is connected via wire or optional Bluetooth. (Bluetooth Version Sold Separately). The manual control has 3 position pre-settings for fast routine repositioning.

Lifto 25/S Motorized Elevation Column performs great versatility in height range, from 23.6" (60cm) minimum to 100" (254cm) maximum. The patented Smart Deployment Series (SDS) two stage tripod with Smart-Stop Mid-Level spreader are engineered for great stability and rigidity . The extremely smooth and silent motorized column offers a two stage, 26" (66cm) stroke at 55 lbs (25kg) capacity.

The Lifto 25/S can be converted to a Lifto 25/S Twin with the APTZ008 column or Lifto 25/S PRO or TwinPro by purchasing APTZ009 column upgrade and KPTZ0206 RX box. (column upgrade and KPTZ0206 RX box Sold Separately).

The Lifto 25/S unit can be packed in a compact high quality wheeled case for easy transportation, available to order as an accessory. (Wheeled Case Sold Separately).

- SDS 100 Tripod -
The SDS 100 tripod is the ultimate ENG lightweight support, expressly designed for ultra-fast operation.

The Smart Deployment System (SDS) is the fastest one-lever two-stage tripod on the market. Covered by three patents it offers an unprecedented ease of deployment and versatility.

Six telescopic prime quality aluminum tubes provide the SDS tripod with an extraordinary torsional rigidity, becoming the bestseller solution for ENG and Documentary work.

Through one single lever, conveniently located on the middle stage, the patented Smart Deployment System (SDS) adjusts the double stage legs, and yet the operator can rely on a positive clamp at any desired operative height.

- Smart Lock Spreader -
The Cartoni Smart Lock mid-level spreader, featuring a patented Cartoni "no-bind" mechanism for quick spread and collapse capability, is a built-in spreader with a unique 2 stage deployment concept.

Made of high performance composite, the Smart Lock weights only 1.01 lbs (460g)

A side button on each arm releases the 2 sections, while the same retract by simply pushing them in.

The spreader fits to any Cartoni DV and ENG tripod with a quick release hook.

The practical strap fixed to the center ring of the spreader and to the tripod base speeds the folding of the system by one single move.
