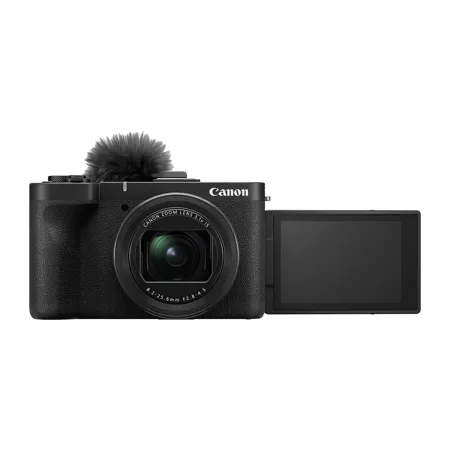

Canon PowerShot V1 Digital Camera

Video/still camera

DIGIC X

1.4 Type CMOS sensor (18.4 x 12.3mm overall sensor size); no low-pass filter

Video (4K and Full HD, 16:9) - approx. 18.7 million pixels
Still images - maximum approx. 22.3 million pixels; 3:2 aspect ratio

Approx. 23.9 megapixels

RGB primary color filters

8.2 - 25.6mm (video full-frame equivalent approx. 17-52mm; still equivalent 16-50mm)

4K Video: 104.4 - 44.9 Degree
Still images: 107.0 - 46.8 Degree

f/2.8 - f/4.5

f/2.8 - f/11 (9 aperture blades)

9 elements in 8 groups

3 aspherical elements; two have aspherical surfaces on both sides of element

Yes, approx. 3.1x zoom ratio

Yes (approx. 5 stops correction at center of image; based on CIPA-compliant tests)

Included (equivalent to 3 stops exposure reduction); activated in red Shooting Menu (video or stills)

None

WIDE: approx. 2" (0.05m) to infinity TELE: 5.9" (0.15m) to infinity

Compliant to Design rule for Camera File system 2.0 and Exif 2.31 (supports time difference information)

Still Photos:
JPEG (.JPG)
HEIF (.HIF)
RAW (.CR3)
C-RAW (.CR3)
Dual Pixel RAW (.CR3)

Movies: ALL-I /IPB (Standard) / IPB (Light) (.MP4)

Continuous (consecutive image numbering continues when a formatted card is inserted)
Auto reset (image numbering returns to 0001 when a formatted card is inserted)
If the new card already contains images, the numbering will continue from the last recorded image in the card
Manual reset (resets the file number to 0001, and creates a new folder on card automatically)
When manually resetting the file number, folders can also be renamed.

(One) SD card slot
UHS-II cards compatible

Built-in; user-selectable fan activation settings and fan speeds

Off: Cooling fan does not rotate.
On: The cooling fan always rotates at the speed set in [Fan rotation speed].
Auto: The cooling fan automatically rotates as the camera temperature increases ([FAN] is displayed). The cooling fan rotation speed will become faster as the camera temperature heats up, and when the camera temperature cools down, the rotation speed will become slower again.

High / Medium/ Low

Microphone: Stereo microphones
Sampling frequency: 48 kHz
Bits: 16 bits
Channels: 2 channels

3-mic noise reduction

Terminal: 3.5 mm diameter stereo mini-jack
Plug-in power: Supported

On / Off

Movie digital IS Supported (can be combined with lens optical IS)
Cannot be combined with digital zoom or auto level.

Off
10 sec.
2 sec.

Possible - wired remote control via Canon Remote Controller RS-60E3 (single-pin socket)
via Canon Bluetooth Remote Controller BR-E1 or Canon Camera Connect App and smartphone

Steady illumination in red, during video recording (user-selectable on-off)

Auto (AWB)
Daylight
Shade (approx. 7000K)
Cloudy
Tungsten
White Fluorescent
Flash
Custom WB
Color Temperature (user-set from 2500K-10000K, in 100K increments)

Blue/amber bias: +/-9 levels
Magenta/green bias: +/-9 levels

Dual Pixel CMOS AF

AF operation (Still):
One-Shot AF
AI Focus AF
Servo AF

AF operation (Movie): Movie Servo AF

Manual focus (MF): Supported (Still/Movie)

3:2 (aspect ratio) (Width x Height): Approx. 90% x 90%
1.4x (crop) (Width x Height): Approx. 100% x 100%

Spot AF
1-point AF
Flexible Zone AF 1 / 2 / 3:
Left/right width is adjustable: 3-25
Top/bottom width is adjustable: 3-17
Zones: 9 (3 x3)-425 (25 x17)
Whole area AF: Max. zones: 425 (25 x17)

TFT color, liquid-crystal monitor (Vari-angle rotating design)

3.0" (screen aspect ratio of 3:2)
2.9" (7.5cm) diagonal (2.4" (6.2cm) width, 1.6" (4.2cm) height)

Approx. 1,040,000 dots

Approx. 170 Degree vertically and horizontally

Approx. 100% vertically and horizontally (at L image size and an aspect ratio of 3:2)

Manually adjustable in a range of 1-5

Approx. 0-175 Degree

Approx. 0-90 Degree

Approx. 0-180 Degree

Capacitive sensing

AF point selection: Supported
Touch AF: None
Touch shutter: Disable / Enable (single shot operation only)
Menu setting touch control: Supported
Quick Control touch control: Supported (via Q icon on LCD screen)
UI magnification: Enable / Disable
Touch Control: Enable / Disable
Volume: Touch sounds: Volume: 0 (silent) to 5

31 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukrainian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesian, Persian/Farsi, Hebrew, and Japanese)

Evaluative metering 384-zone (24 x16) metering using the image sensor
Spot (3.1% at center), Partial and Center-weighted also possible for still images

ISO 100 - 32000, in 1/3 or 1/2-step increments - manually set by user
Auto ISO: 100 - 6400; Max. auto ISO can be user-set up to ISO 32000

Manual or Automatic ISO Speed Settings
Full HD: ISO 100-12800 (in 1/3-stop increments)
4K: ISO 125-12800 (in 1/3-stop increments)

Three forms of video Image Stabilization:
Optical IS (in the lens; controlled in red Shooting Menu via IS Mode on-off)
Movie Digital IS (electronic stabilization of image, on CMOS sensor; separate Menu on-off)
Subject Tracking IS available (separate Menu on-off; concentrates IS at location of detected subject)

Keeps the movie level as it is recorded, using Movie Digital IS roll correction to maintain level view

Not possible if any of the following are active:
Cannot be combined with Movie Digital IS
Time-lapse recording
Smooth skin movie mode
4K Crop recording

The Quick Control screen can be accessed by pressing the Q or SET button during still or video recording.
Allows immediate access to various commands, using camera's touch-screen interface on LCD screen

Three; available for video or still-image shooting
Set in orange-colored custom functions menu area
Control dial (rear of camera) and Control ring (surrounding lens) customizable in green-colored customize controls menu area

Possible, in green Customize controls when shooting menu
separate button customizations for still images and video

Equivalent to IEEE 802.11b/g/n Standards

DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g/n)

2.4 GHz band
Frequency: 2412 to 2462 MHz Channels: 1 to 11 channels

Enables uploading of still photos (JPEG/HEIF/RAW/C-RAW / Dual Pixel RAW) and movies (MP4) to image.canon servers.
With auto send enabled, automatic image transfer on camera startup or during charging is supported.
Images can be sent via image.canon server to other cloud services (depending on image.canon server specifications).

Bluetooth Specification Version 4.2 compliant (Bluetooth Low Energy technology)

GFSK modulation

Smartphone - up to 10 devices; BR-E1 remote controller - 1 unit

Available

Video:
USB Video Class (UVC) supported
Video compression format: Motion JPEG
Color sampling method: YCC422
Bit depth: 8 bits
Resolution: Full HD
Frame rate: 30 fps only
Recording range: Full range
Camera control from applications: Not supported

Audio:
USB Audio Class (UAC) supported
Linear PCM 48 kHz / 16 bits / 2 ch
External microphone (multi-function shoe input) / external microphone (external microphone IN terminal) / built-in microphone - Supported

The camera supports live streaming services using wireless LAN via Camera Connect. If the icon of a live streaming service is selected on the camera, the streaming destination URL is acquired, and the movie being recorded by the camera can be live streamed. SSL encrypted protocols are supported. The user sets a live streaming destination from the smartphone in a dedicated menu of Camera Connect.

USB Type-C; Equivalent to Hi-Speed USB (USB 2.0)
Can connect to compatible Android and iOS smartphones

Micro HDMI terminal (Type D)

3.5mm diameter stereo mini jack (3-pin)

Provided (3.5mm stereo, 3-pin mini-jack)

Provided; compatible with most Canon EL-series speedlites & accessories, Canon DM-E1D Stereo Microphone, Canon Smartphone Link Adapter AD-P1, etc.
No traditional flash sync contacts on Canon Multi-function Accessory Shoe - non-dedicated flashes will require Canon AD-E1 Adapter

Canon LP-E17 battery pack (uses Canon LC-E17 battery charger)

Remaining capacity: Indicated by a battery check mark. (4 levels)
Number of shots: Not Supported
Recharge performance: 3 Levels

Supported

Not supported

32-104 Degree F (0-40 Degree C)

10%-90% relative humidity

Required, included

Lithium ion

LP-E

1

Black

Approx. 4.7 x 2.7 x 2.1" (118.3 x 68.0 x 52.5mm)

Body (including card): Approx. 15 oz (426g)

013803374780
