Canare 5 Channel 31 AWG 75 Ohm Video Coaxial Cable, 100m
See all Canare items

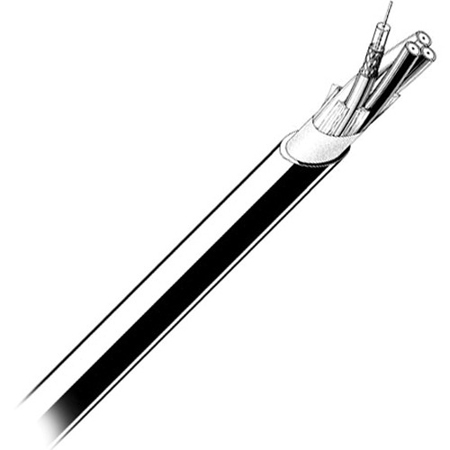

Canare 5 Channel 31 AWG 75 Ohm Video Coaxial Cable, 100m

SKU: CAV515C1M
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Canare A3V2-FB: Picture 1 regular
Canare A3V2-FB 200m Audio Video Composite Cable
$1,967.90
Canare : Picture 1 regular
Canare 75 Ohm Coaxial Cable Lightweight Low Loss, 100m
$93.50
Canare : Picture 1 regular
Canare 75 Ohm Coaxial Cable Lightweight Low Loss Cable, 200m
$185.90
Canare : Picture 1 regular
Canare 75 Ohm L-2.5CHD Digital Video Coaxial Low Loss, 300m (UL 1666 Riser)
$293.70
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Canare 5 Channel 31 AWG 75 Ohm Video Coaxial Cable, 100m Specifications

  • Number of Channels

    5

  • Nominal Impedance

    75 Ohms

  • Nominal Outer Diameter

    9.2mm (0.362")

  • PVC Jacket Thickness

    1.00mm (0.039")

  • Brittle Point

    -22 Degree F (-30 Degree C)

  • Channel Colors

    Red, Green, Blue, White, Yellow

  • Conductor AWG

    31 (7/3.5)

  • Dielectric Insulation Type

    Foam PE

  • Shield Material Coverage

    >94%

  • Conductor D.C.R. ohm/1000ft (ohm/100m)

    <129.2 (<42.4)

  • Shield D.C.R. ohm/1000ft (ohm/100m)

    <10.1 (<3.3)

  • Nom. Cap. @1KHz pF/m

    21 (69)

  • Channel Diff. Delay 100ft ns.

    <2.2

  • Velocity of Propagation

    66%

  • Cable Length

    100m (328')

  • Weight

    11kg (24 lbs)

About Canare 5 Channel 31 AWG 75 Ohm Video Coaxial Cable, 100m

Canare 5 Channel 31 AWG 75 Ohm Video Coaxial Cable, 100m Features

  • Component Analog Video
  • Video Projectors
  • Video Walls
  • Studio Tie Lines
  • CG/CAD Workstations
  • Structural Return Loss >=20dB to 2GHz
  • Flexible Center Conductor
  • Channel ID Colors
  • Special Jacket Fillers
  • Dielectric strips away clean from Conductor
  • 2.2 ns. Differential Delay

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Component Analog Video
  • Video Projectors
  • Video Walls
  • Studio Tie Lines
  • CG/CAD Workstations
  • Structural Return Loss >=20dB to 2GHz
