Canon REALiS WUX500 Specifications

  • Imaging Device

    0.71" LCOS Reflective LCD panel x3

  • Aspect Ratio

    16:10

  • Native Resolution

    1920x1200 (WUXGA)

  • Brightness

    5000 Lumens (Normal) / 3800 Lumens (Power Saver)

  • Contrast Ratio

    2000:1

  • Digital Keystone

    V+/-20 deg., H+/-20 deg.

  • Uniformity

    90%

  • Zoom Ratio

    1.8x

  • Electronic Zoom

    12x Maximum

  • Focus

    Manual

  • Lens Shift

    Manual V: 0% -60%, H: +/-10%

  • Throw Ratio

    1.39 - 2.51:1

  • Image Mode

    Standard / Presentation / Dynamic / Photo / sRGB / User 1 / User 2 / User 3 / User 4 / User 5

  • Image Color Adjust

    Color Level, Color Balance, Color Temperature, Gain (R,G,B), Offset (R,G,B)

  • Image Wall Correction

    Normal / Greenboard / Adjust (custom)

  • Image Mounting

    360 deg. projection

  • Image Tilt Angle

    Bottom Front Feet: 2 places (Max. angles: 6 deg. elevation)

  • Scanning Frequency

    TBD

  • Analog PC Input

    WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA

  • Digital PC Input

    WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA

  • Component Video Input

    1080p / 1080i / 720p / 576p / 576i / 480p / 480i

  • HDBaseT

    Equivalent to the Input Signal of Digital PC Input and Digital Video Input.

  • USB Data Transfer

    JPEG Still Image

  • Digital Video Input

    1080p / 1080i / 720p / 576p / 480p

  • Dot Clock

    TBD

  • DVI-I

    Digital PC/Analog PC Input

  • HDMI

    Digital PC/Digital Video Input (supports deep color)

  • RJ-45 (HDBaseT)

    HDBaseT input (image, audio and control signal)

  • Mini Dsub15

    Analog PC/Component Video Input

  • Mini Jack x3

    Audio Input x2, Audio Output x1

  • Mini Jack x1

    Connecting Wired Remote

  • Dsub9

    RS-232C Connection

  • USB type A

    Service Port

  • RJ-45

    Network Connection (1000BASE-T / 100BASE-TX / 10BASE-T)

  • Wi-Fi

    NMPJ (Network Multi-Projection)

  • Remotes

    Wireless Infrared (supplied) or Wired (optional)

  • Internal Amplifier

    5W, Mono (Built-In Sound)

  • Lamp Type

    250-NSHA lamp

  • Lamp Life

    3000 Hours Full Power / 5000 Hours Power Saver

  • Lamp Power

    260/200 W

  • Fan Noise

    37dB (Full Power) / 30dB (Power Saver)

  • Power Consumption

    365/295 W

  • Standby Power

    1.6 (HDBaseT)0.6 (Network) /0.2 W (Standard)

  • Power Voltage

    AC 100-240V, 50/60 Hz

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    14 to 140 deg. F / -10 to 60 deg. C

  • Dimensions (W x H x D)

    13.26 x 5.35 x 14.56" / 33.68 x 13.59 x 36.98cm (including protrusion)

  • Weight

    13lbs / 5.90kg

  • UPC Code

    013803250732

1 Accessories for Canon REALiS WUX500 Pro AV WUXGA Compact Installation LCOS Projector, 1920x1200, 5000 Lumens, No DICOM

  • All Accessories (1)
  • Stands (1)

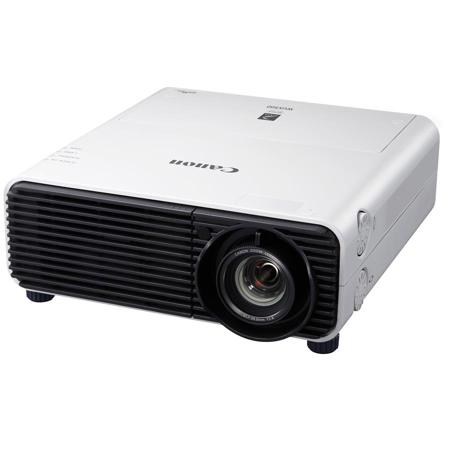

About Canon REALiS WUX500

The REALiS WUX500 Pro AV Compact Installation LCOS Projector delivers high performance WUXGA (1920 x 1200) resolution with 5000 lumens of brightness and up to a 2000:1 contrast ratio. These features combined with an advanced Genuine Canon projection lens and Canon's proprietary LCOS technology with AISYS-enhancement helps to produce crisp, bright images with exceptional color reproduction.

The advanced optical system on the WUX5000 allows the projector to virtually maintain a constant level of brightness throughout its 1.8x zoom range - a unique feature that provides both flexible projector placement and value by eliminating the need to over-specify a higher lumen projector for longer throw applications. The WUX500 is HDBaseT compatible and is equipped with many leading industry interfaces including HDMI, DVI-I, USB, RJ-45 and RS-232C. Built-in network management is possible via PJLink and compatibility with Crestron & AMX systems ensure the REALiS WUX500 will seamlessly integrate into virtually any system infrastructure.

Other key functions include 4-Point Keystone Correction, built-in Edge Blending, PC-Free Multi Projection (JPEG only), significant Vertical Lens Shift (0-60%), Picture by Picture, Network Multi Projection (NMPJ) over Wi-Fi, PC-Free Presentations and other features enabling installation versatility, advanced image adjustments and professional calibration settings.

Users will also enjoy greater installation flexibility thanks to its compact size and weight (13 lbs.) and variety of mounting options. A 12,000 hour life filter simplifies maintenance and low power consumption makes the Canon REALiS WUX500 the perfect partner for a range of markets including corporate, higher education, museums, simulation, training, houses of worship, digital signage and other professional markets.

Canon REALiS WUX500 Features

  • 5000 Lumens with up to 2000:1 Contrast Ratio
  • Native WUXGA Resolution (1920 x 1200)
  • LCOS Technology with AISYS-Enhancement
  • Genuine Canon Optics with Constant Brightness throughout 1.8x Zoom Range
  • HDBaseT
  • Installation Convenience including a Compact Design, 4-Point Keystone Correction and Manual Lens Shift
  • Advanced Professional Calibration Settings including Edge Blending and PC-Free Multi Projection (JPEG only)
  • Multiple Adjustments for Optimal Image Quality Reproduction
  • Versatile Connectivity (HDMI, DVI-I, USB, RJ-45)
  • NMPJ (Network Multi Projection) over Wi-Fi
  • PC-Free Presentation Functions
  • Network Management via PJLink, Crestron Connectivity and AMX Device Discovery
  • Quiet Operation, Low Power Consumption and Simplified Maintenance
  • Backed by Canon's 3-Year Limited Warranty and Projector Protection Program ("Triple P")

Key Features

  • Native WUXGA Resolution (1920 x 1200)
  • LCOS Technology with AISYS-Enhancement
  • Genuine Canon Optics
  • Multiple Adjustments for Optimal Image Quality Reproduction
  • Versatile Connectivity (HDMI, DVI-I, USB, RJ-45)
  • NMPJ (Network Multi Projection) over Wi-Fi

What's in the box:

  • Canon REALiS WUX500 Pro AV WUXGA Installation LCOS Projector
  • Remote Control
  • 2x AAA Batteries
  • Lens Cap- 5.9' Power Cord
  • 5.9' Computer Cable (Mini D-Sub 15-Pin / Mini D-Sub 15-Pin)
  • User's Manual (CD-ROM)
  • Canon 3 Year Parts and Labor for Projector and 120 Day for Lamp Warranty
