What is the resolution of the REALiS WUX500ST Pro AV Short Throw LCOS Projector?

The REALiS WUX500ST Pro AV Short Throw LCOS Projector has a native WUXGA resolution of 1920x1200, providing sharp and detailed images.

What is the brightness level of this projector?

The REALiS WUX500ST Pro AV Short Throw LCOS Projector has a powerful brightness level of 5000 lumens, making it ideal for use in well-lit environments.

What makes the image quality of this projector exceptional?

The projector's exceptional image quality is enhanced by Canon's advanced AISYS optical technology, which ensures excellent color reproduction and contrast.

What are the connectivity options for the REALiS WUX500ST Pro AV Short Throw LCOS Projector?

The projector offers a range of industry-standard interfaces, including HDMI, DVI-I, USB, RJ-45, and RS-232C. It also has built-in HDBaseT and Wi-Fi connectivity for easy setup and multiple device connection.

Can this projector be used in tight or constricted spaces?

Yes, with a short throw ratio of 0.56:1 and significant 0-75% vertical lens shift, the REALiS WUX500ST Pro AV Short Throw LCOS Projector can produce a large picture from just 4 feet away, making it suitable for installation in tight spaces.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Canon REALiS WUX500ST Specifications

Projector

Projector

Jump to...
  • Imaging Device

    0.71", Reflective LCOS Panel x3

  • Aspect Ratio

    16:10

  • Native Resolution

    1920 x 1200 (WUXGA)

  • Brightness

    5000 Lumens / 3460 Lumens

  • Uniformity

    0.8

  • Contrast Ratio

    83.33402778

  • Digital Keystone

    V: +/-12 deg. , H: +/-12 deg.

  • F Number, Focal Length

    F2.7, 8.8mm

  • Zoom

    Fixed

  • Electronic Zoom

    12x Maximum

  • Focus

    Manual

  • Image Size

    30 - 300"

  • Amount of Lens Shift

    V: 0 - 75%, H: +/-10%

  • Throw Ratio

    0.56:1

Image Adjustments

Jump to...
  • Image Modes

    Standard, Presentation, Dynamic, Photo/sRGB, Video, User (1-5)

  • Color Adjustment

    Color Level, Color Balance, Color Temperature, Gains of RGB, Offsets of RGB

  • Screen Color Correction

    Normal, Greenboard, Adjust

  • Mounting

    Upward, Downward, Table, Ceiling

  • Adjustable Feet

    Bottom front: 2 places (Maximum elevation 6 deg. )

Image Signals

Jump to...
  • Scanning Frequency

    H: 15.734kHz - 75.000kHz, V: 24.000Hz - 60.317Hz

  • Analog PC Input

    WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+/ FWXGA / WXGA / SXGA / XGA / SVGA / VGA

  • Digital PC Input

    WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+/ FWXGA / WXGA / SXGA / XGA / SVGA / VGA

  • Component Video Input

    1080p / 1080i / 720p / 576p / 576i / 480p / 480i

  • Digital Video Input

    1080p / 1080i / 720p / 576p / 480p

  • Dot Clock

    162MHz (Maximum)

  • HDBaseT Input

    Equivalent to the input signals for HDMI terminal

  • USB Data Transfer

    JPEG still images only

Terminals

Jump to...
  • DVI-I

    Digital PC / Analog PC input

  • HDMI

    Digital PC / Digital Video input

  • RJ-45

    Network Connection (1000BASE-T / 100BASE-TX / 10BASE-T)

  • Dsub15

    Analog PC / Component Video input

  • Dsub9 (Control)

    RS-232 Connection

  • USB Type A

    USB Connection

  • Mini Jack

    Audio input x2, Audio output x1

  • Mini Jack (Remote)

    Wired remote control connection

Remote Control

Jump to...
  • Wireless Remote

    Infrared (supplied) / Wired (optional)

Built-In Sound

Jump to...
  • Internal Amplifier

    5W, Monaural

  • Type

    Super High Pressure Lamp

  • Life

    3000H / 5000H

  • Power

    280 / 200W

Ratings

Jump to...
  • Fan Noise

    38 / 30 dB

  • Power Consumption

    395 / 295W

  • Standby Power Consumption

    1.8 - 0.2W

  • Heat Dissipation

    Up to 0000 BTU/h

  • Power Voltage

    AC100 - 240V, 50/60Hz

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C), 20%RH - 85%RH

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

General

Jump to...
  • Dimensions (WxHxD)

    13.26 x 5.35 x 16.33" (33.68 x 13.59 x 41.48cm)

  • Weight

    13.88 lbs (6.30kg)

  • UPC Code

    013803289978

1 Accessories for Canon REALiS WUX500ST WUXGA Pro AV Short Throw LCOS Projector, 1920x1200, 5000 Lumen

  • All Accessories (1)
  • Stands (1)

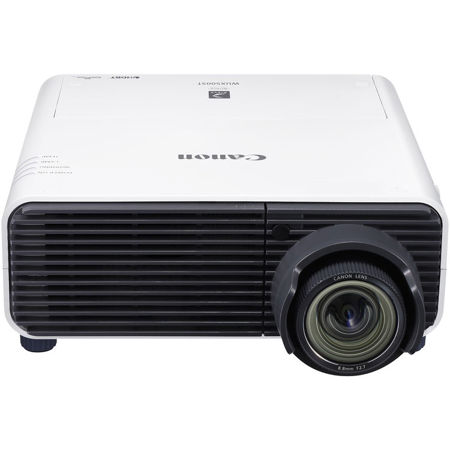

About Canon REALiS WUX500ST

For professionals seeking a high-quality, reliable, and innovative projection solution, the REALiS WUX500ST Pro AV Short Throw LCOS Projector is a powerful choice. This projector is designed to deliver exceptional image quality, boasting a native WUXGA resolution of 1920x1200, a brightness of 5000 lumens, and a high contrast ratio of 2000:1. These features are further enhanced by Canon's advanced AISYS optical technology, ensuring sharp, bright, and highly detailed results with excellent color reproduction and contrast.

This durable projector is designed for flexible installation, even in tight or constricted spaces. With a short throw ratio of 0.56:1 and significant 0-75% vertical lens shift, it can produce a large, 100-inch picture from just 4 feet away. Its compact, lightweight design, coupled with built-in HDBaseT and Wi-Fi connectivity, make setup simple and convenient.

The REALiS WUX500ST is not just a projector; it's a versatile tool for a variety of uses. Whether you're setting up a museum exhibit, conducting a corporate presentation, or teaching in a higher education setting, this projector delivers outstanding image quality. Its advanced color management system, Genuine Canon Lens, and LCOS panel with AISYS-enhancement contribute to this superior performance.

The projector also offers a range of industry-standard interfaces, including HDMI, DVI-I, USB, RJ-45, and RS-232C, plus Audio Inputs. Its built-in HDBaseT transmits uncompressed HD video, audio, and control signals over a single LAN cable, up to 100 meters. With built-in Wi-Fi, multiple PCs can connect via Network Multi Projection (NMPJ). It's also compatible with Crestron Room View and AMX Device Discovery for added convenience and control.

The REALiS WUX500ST Pro AV Short Throw LCOS Projector is more than a projector; it's a testament to Canon's commitment to delivering high-quality, powerful, and reliable projection solutions. With its high resolution, brightness, and contrast ratio, it stands out in the market as an ideal choice for a variety of professional uses.

Canon REALiS WUX500ST Features

  • 5000 Lumens
  • WUXGA Resolution (1920 x 1200)
  • LCOS Technology with AISYS-enhancement
  • Genuine Canon Optics
  • Short Throw Ratio 0.56:1
  • Lens Shift V: 0 - 75%, H: +/-10%
  • HDBaseT & Wi-Fi
  • Built-in Edge Blending
  • Versatile Connectivity Including HDMI and DVI
  • Crestron Connectivity and AMX Device Discovery Support
  • Network Multi Projection (NMPJ)

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • High-quality LCOS Projector with native WUXGA resolution (1920x1200) for sharp, detailed images
  • Powerful 5000 lumens brightness ideal for well-lit environments
  • Advanced AISYS optical technology by Canon for superior color reproduction and contrast
  • Short throw ratio of 0.56:1 and significant 0-75% vertical lens shift for flexible installation
  • Built-in HDBaseT and Wi-Fi connectivity for easy setup and multiple device connection
  • Versatile uses including museums, corporate presentations, and higher education settings

What's in the box:

  • Canon REALiS WUX500ST WUXGA Pro AV Short Throw LCOS Projector
  • Lens Cap
  • Power Cord
  • VGA to VGA Connection Cable (Mini Dsub15-Mini Dsub15)
  • LV-RC06 Projector Remote Control
  • 2x AA Batteries
  • RS-LP08 Lamp
  • Quick Start Guide (Book)
  • User's Manual (CD-ROM)
  • Canon 3 Year Parts and Labor Limited Warranty (120 Day on Lamp)
