Review Summary
CarePAK PLUS provided through Canon offers protection from accidental damage such as drops, spills, power surges, and more including normal wear and tear, beyond the standard warranty period.
0.71", LCOS Panel x3
16:10
1920 x 1200 (WUXGA)
5800/5200/4500 Lumens
0.9
2000:1 (all white: all black)
V: +/-20 deg. , H: +/-20 deg.
40 - 600"
Standard / Presentation / Dynamic / Vivid Photo / Video / Cinema / Photo / sRGB / DICOM SIM / User (1-5)
Color Level, Color Balance, Color Temperature, Gain (R,G,B), Offset (R,G,B)
Normal / Greenboard / Adjust (custom)
Ceiling, Table, Rear, Rear Ceiling, Rear Table
4x, Extension Length: 14.6 mm, Maximum angle of inclination: +/- 1.8 deg.
H: 15.625kHz - 75kHz, V: 24Hz - 60Hz
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
1080p, 1080i, 720p, 576p
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
1080p, 1080i, 720p, 576p, 576i, 480p, 480i
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Image, Audio, Control, Network; Equivalent to image and audio of HDMI/DP
100BASE-TX, NMPJ screen transfer
JPEG still image (10912x8640)(Maximum pixels)
162MHz (maximum)
Digital PC/Analog PC Input
Digital PC/Digital Video Input
Digital PC/Digital Video Input
Analog PC2/Component Video Input
Stereo Audio, Wired Remote Control Connection
RS-232 Connection
USB Connection
IEEE 802.11b/g/n
HDBaseT/Network
Infrared
1W
Super High Pressure Lamp
3500/4000/3000
35/29/27dB
343/300/262W
1.6 - 0.28W
Up to 1171 BTU/h
AC100 - 240V: 50/60 Hz
32 to 104 deg. F (0 to 40 deg. C), 20%RH - 85%RH
-4 to 140 deg. F (-20 to 60 deg. C)
19 x 7.7 x 20" (48.26 x 19.56 x 50.80cm)
Approx. 28.6 lbs (12.97kg)
013803300079

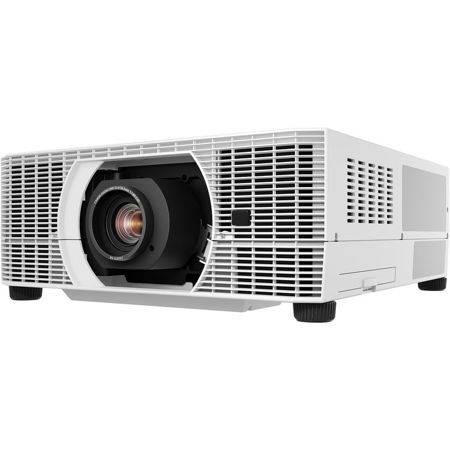

Explore the advanced features and superior performance of the REALiS WUX5800 WUXGA LCoS Projector. This high-quality projector boasts a native resolution of 1920x1200, delivering highly detailed and vibrant images for a wide range of applications. From higher education and corporate presentations to advertising, marketing, and museum exhibits, this projector's exceptional image quality and high brightness make it a reliable choice.
The REALiS WUX5800 is equipped with Canon's unique LCoS (Liquid Crystal on Silicon) technology with AISYS-enhancement, producing virtually seamless images with outstanding color reproduction and saturation. With a high brightness of 5800 lumens and a high contrast ratio of 2000:1, you can expect bright, engaging images with deep blacks, bright whites, and amazing color accuracy.
This innovative projector offers flexible installation options with its center lens design and compatibility with six interchangeable Genuine Canon lens options. These lenses provide consistent brightness and superior stability for a variety of applications. The projector also features a low-noise operation of up to 27 decibels, making it especially suitable for quiet environments such as classrooms and medical facilities.
The REALiS WUX5800 offers versatile connectivity options, including HDBaseT, HDMI, DVI-I, DisplayPort, USB Type A, RJ-45, RS-232, audio inputs, and Network Multi Projection (NMPJ) over Wi-Fi. This ensures user-friendly connection and seamless integration into various setups.
With its durable construction and advanced professional installation settings, including built-in edge blending and advanced registration, the REALiS WUX5800 is designed to deliver superior performance in any setting. Whether you're presenting in a bright room or projecting images from sRGB-supported digital cameras, this projector's multiple image modes ensure optimal image quality reproduction.
Experience the difference with the REALiS WUX5800 WUXGA LCoS Projector, a blend of advanced technology, high resolution, and exceptional brightness. This projector is not just a device, but a tool that enhances presentations, making them more engaging and impactful.
