This item is no longer available.
The REALiS WUX5800Z WUXGA Laser LCoS Projector offers a high-resolution display of 1920x1200.
The laser light source in the REALiS WUX5800Z WUXGA Laser LCoS Projector provides up to 20,000 hours of continuous projection.
The REALiS WUX5800Z WUXGA Laser LCoS Projector utilizes Canon's unique LCOS (Liquid Crystal on Silicon) technology with AISYS-enhancement for image production.
Yes, the REALiS WUX5800Z WUXGA Laser LCoS Projector supports High Dynamic Range (HDR), which exhibits bright highlights and deep blacks for a wider dynamic range.
Yes, the REALiS WUX5800Z WUXGA Laser LCoS Projector offers extensive image quality adjustments to help users customize the image to meet their specific projection needs.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
0.71", LCOS Panel x3
16:10
1920 x 1200 (WUXGA)
5800/4060/2900 lm
90%
4000:1
V: +/-20 deg. , H: +/-20 deg.
40" - 600"
Standard, Presentation, Dynamic, Vivid Photo, Video, Cinema, Photo/sRGB, DICOM SIM, User 1 - 5
Color Level, Color Balance, Color Temperature, Gain (R,G,B), Offset (R,G,B)
Normal / Greenboard / Adjust (custom)
360 deg.
4x, Extension Length: 14.6 mm, Maximum angle of inclination: +/- 1.8 deg.
H: 15.625kHz - 75kHz, V: 24Hz - 60Hz
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
1080P, 1080i, 720P, 576p
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
1080P, 1080I, 720P, 576p, 576i, 480p, 480i
WUXGA, UXGA, WSXGA+, SXGA+, WXGA+, FWXGA, WXGA, SXGA, XGA, SVGA, VGA
1080P, 1080I, 720P, 576p, 576i, 480p, 480i
Image, Audio, Control, Network; Equivalent to image and audio of HDMI/DP
100BASE-TX, NMPJ screen transfer
JPEG still image (10912x8640)(Maximum pixels)
162MHz (maximum)
Digital PC/ Analog PC Input
Digital PC/Digital Video Input
Digital PC/Digital Video Input
Analog PC2/Component Video Input
Stereo Audio
Stereo Audio
Wired Remote Control Connection
RS-232 Connection
USB Connection
IEEE 802.11b/g/n
HDBaseT/Network
Infrared
1W
Blue Laser Diode, Yellow Phosphor
Approx.. 20,000
35/32/29 dB
485 W
1.6 to .28 W
AC100 - 240V : 50/60 Hz
Up to 1655 BTU/h
32 to 104 deg. F (0 to 40 deg. C), 20%RH - 85%RH
-4 to 140 deg. F (-20 to 60 deg. C)
19 x 7.7 x 21.4" (482.60 x 195.58 x 543.56mm)
37.4 lbs (16.96kg) Approx.

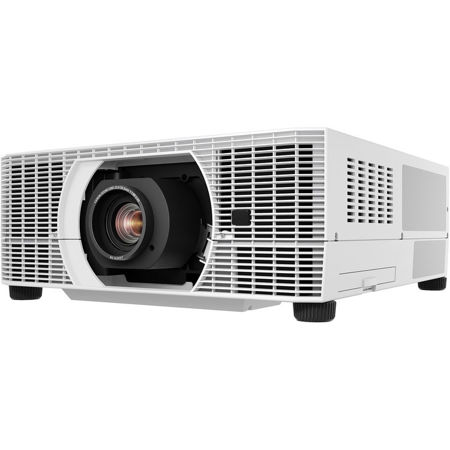

An advanced and versatile solution for diverse projection needs, the REALiS WUX5800Z WUXGA Laser LCoS Projector, with no lens, offers a high-resolution display of 1920x1200 and a luminous intensity of 5800-lumen. This white projector is an ideal choice for a variety of settings including higher education, corporate environments, advertising and marketing initiatives, houses of worship, simulation and training programs, as well as museums and galleries.
Compact yet robust, the REALiS WUX5800Z is designed for durability, making it a reliable choice for challenging locations. Its laser projection technology ensures an impressive 20,000 hours of continuous projection, offering virtually maintenance-free operation and a lower total cost of ownership. The projector's 360-degree vertical rotation allows for omnidirectional projection and portrait orientation, while its quick start-up and shut-down feature ensures bright and clear images almost instantly.
The REALiS WUX5800Z boasts a native WUXGA resolution, delivering highly detailed images on a large, widescreen display. Its high brightness of 5800 lumens and high contrast ratio of 4000:1 ensure vibrant and vivid visuals. The projector utilizes Canon's unique LCOS (Liquid Crystal on Silicon) technology with AISYS-enhancement, producing virtually seamless images with outstanding color reproduction and saturation. Advanced color management tools allow for independent color adjustment, providing highly detailed color control.
The projector's flexible installation options are complemented by its compatibility with six interchangeable Genuine Canon lens options, providing consistent brightness and superior stability for a variety of applications. The projector's compact and lightweight design makes it ideal for spaces where installation may be challenging. It features a comprehensive range of industry-standard interfaces, including HDBaseT, HDMI, DVI-I, DisplayPort, USB Type A, RJ-45, RS-232, audio inputs, and Network Multi Projection (NMPJ) over Wi-Fi.
The REALiS WUX5800Z is backed by Canon's award-winning Professional Service & Support, offering peace of mind to users. It delivers bright 5800 lumen images with a 4000:1 contrast ratio, ensuring deep blacks, bright whites, and outstanding color. The projector's laser light source offers up to 20,000 hours of continuous, high-quality projection, making operation virtually maintenance-free with minimal downtime.
The projector's LCOS technology with AISYS-enhancement ensures superior reflectivity and durability while achieving high luminance. It supports High Dynamic Range (HDR), exhibiting bright highlights and deep blacks for a wider dynamic range. The projector includes pre-set Image Modes and additional customizable Image Modes to suit a wide range of user preferences and projection environments. It also offers extensive image quality adjustments to help users customize the image to meet their specific projection needs.
The REALiS WUX5800Z includes Canon's latest Motion Blur Reduction feature for improved visibility when movement is fast. It is compatible with Crestron, Extron XTP, and AMX Device Discovery, ensuring seamless integration into many systems or infrastructures and smooth network management. The built-in Real-time Clock allows scheduling of specific operations such as set startup and shutdown at chosen times, helping to manage power consumption and extend projection life.
