CAD Audio WX1000BP 100-Channel UHF Wireless Microphone System with Headworn, Lavalier Microphone and Guitar Cable, 510-570 MHz

SKU: CAWX1000BP MFR: WX1000BP
$149.99
$209.00
Save: $59.01 (28%)
Earn VIP Reward Points

Key Features

  • Experience clear sound with this 100-channel wireless microphone system, perfect for any venue.
  • Enjoy hands-free performance; use the included headset microphone for dynamic stage presence.
  • Get versatile audio with both headworn and lavalier mics included in this wireless system.
  • Achieve a 295-foot wireless range, giving you freedom to move during performances or events.
  • The bodypack transmitter is great for guitarists using the included instrument cable.
  • Set up easily with rackmount hardware, making this wireless microphone system stage-ready.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CAD Audio WX1000BP Specifications

System
  • Wireless Technology

    Analog UHF

  • Number of RF Channel Frequencies

    100

  • Included Transmitters

    1x Bodypack

  • Diversity

    Non-Diversity

  • RF Frequency Band

    510 to 570 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    295.3' (90m) (Line of Sight)

  • Max Transmitters per Band

    20

  • Built-In Recorder

    No

  • Latency

    < 3 ms

  • Dynamic Range

    >100 dB

  • Encryption

    None

  • Modulation

    FM

  • SNR

    >85 dB

  • THD

    <0.5 %

Receiver

Jump to...
  • Receiver Type

    Tabletop / Rackmount

  • Mounting Options

    Rackmount (with Included Hardware)

  • Rackmount Size

    1 RU (1/2 Rack)

  • Antenna

    1x Rod, TNC (Rear-Mount)

  • Number of Audio Channels

    1

  • Audio I/O

    1x XLR 3-Pin Male Balanced Output
    1x 1/4" TS Female Unbalanced Output

  • Frequency Response

    30 Hz to 18 kHz

  • Network I/O

    None

  • Word Clock I/O

    None

  • USB/Lightning Connectivity

    None

  • Standalone Audio Interface Capable

    No

  • Approximate RF Sensitivity

    108 dBm

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    VDC Included

  • DC Input Power

    12 VDC at 1A

  • Display & Indicators

    1x Backlit LCD (AF Level, Channel, Mute, RF Level, Transmitter Battery Status)

  • Housing

    Metal

  • Dimensions

    16 x 12.1 x 2.8" (40.6 x 30.7 x 7.1cm)

  • Weight

    3.3 lbs (1.5kg)

Transmitter

Jump to...
  • Transmitter Type

    Bodypack

  • RF Output Power

    10 mW

  • Audio I/O

    1x TA4/Mini XLR 4-Pin Male Input (Lockable)

  • Included Cable Connector

    1/4" TS

  • Auto-Level Control

    No

  • Frequency Response

    30 Hz to 18 kHz

  • Sync Method

    IR

  • Antenna

    1x Flexible Whip, Fixed

  • Power Requirements

    Battery

  • Approx. Battery Life

    12 Hours

  • Display & Indicators

    Backlit LCD (Audio Level, Battery Status, Channel, Signal Strength)

  • Housing

    Metal

  • Battery Info

    Required, not included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

Headworn Microphone

Jump to...
  • Microphone Type

    Headworn

  • Sound Field

    Mono

  • Capsule

    Electret Condenser

  • Outputs

    1x TA4/Mini XLR 4-Pin Female (Lockable, on Attached Cable)

Lavalier Microphone

Jump to...
  • Microphone Type

    Lavalier

  • Sound Field

    Mono

  • Capsule

    Condenser

  • Polar Pattern

    Cardioid

  • Outputs

    1x TA4/Mini XLR 4-Pin Female (Lockable)

  • UPC Code

    631922109764

About CAD Audio WX1000BP

An embodiment of professional-grade audio technology, the WX1000BP 100-Channel UHF Wireless Microphone System is a versatile and compact solution for all your live performance needs. Crafted by CAD Audio, a company with a rich legacy dating back to 1931, this system is designed to support the live performer with superior sound quality and ease of use.

The WX1000BP operates within the 510-570 MHz frequency band, ensuring optimal signal clarity across a broad range of environments. With 100 channels at your disposal, you can effortlessly navigate through today's challenging RF landscape. The system's auto-scan and IR sync functions simplify the setup process and make channel-changing seamless, allowing you to focus on your performance.

This durable wireless microphone system offers up to 12 hours of run time on just two AA batteries. To keep you informed about the battery status, the transmitter and receiver both feature a battery level indicator, ensuring you're never caught off guard during a performance.

The WX1000BP system is built to withstand demanding conditions with its all-metal construction. It comes with rack mounting hardware for easy installation and setup. The system includes a headworn microphone, a lavalier microphone, and a guitar cable, making it a versatile choice for various applications, from singing and speaking to playing music.

Experience the high-quality, professional sound that the WX1000BP 100-Channel UHF Wireless Microphone System delivers, and elevate your live performances to new heights.

CAD Audio WX1000BP Features

  • Frequency Agile Design (100 switchable frequencies)
  • Use up to 20 systems at the same time
  • Up to 295' (90m) range between transmitter and receiver
  • Rugged, all metal construction
  • Auto scan finds the optimal frequency setting
  • IR sync wirelessly matches transmitter and receiver frequencies
  • Transmitter and receiver feature low battery indicators
  • Transmitter utilizes 2 AA Batteries with >12 Hrs of operation
  • Rack mounting hardware and antennal relocation kit included
  • Head-worn and lavalier microphones and guitar/instrument cable included

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience clear sound with this 100-channel wireless microphone system, perfect for any venue.
  • Enjoy hands-free performance; use the included headset microphone for dynamic stage presence.
  • Get versatile audio with both headworn and lavalier mics included in this wireless system.
  • Achieve a 295-foot wireless range, giving you freedom to move during performances or events.
  • The bodypack transmitter is great for guitarists using the included instrument cable.
  • Set up easily with rackmount hardware, making this wireless microphone system stage-ready.

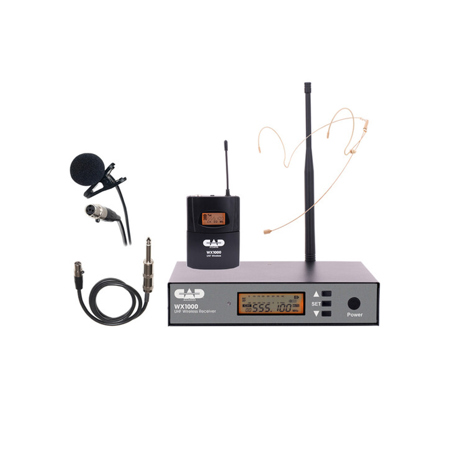

What's in the box:

  • RX1000 Wireless Receiver
  • TX1000BP Wireless Bodypack Transmitter
  • Headworn Microphone
  • Lavalier Microphone
  • Guitar Cable
  • Antenna
  • Antenna Relocation Hardware
  • Rackmount Hardware
  • AC Power Adapter
  • CAD Audio 2 Year Limited Warranty
