CAD Audio WX55 Digital UHF Wireless Headset Microphone System, 500-599 MHz
See all CAD Audio items

CAD Audio WX55 Digital UHF Wireless Headset Microphone System, 500-599 MHz

SKU: CAWX55
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CAD Audio WX55 Specifications

System

System

Jump to...

  • Wireless Technology

    Digital UHF

  • Number of RF Channel Frequencies

    16

  • Included Transmitters

    1x Bodypack

  • Diversity

    Non-Diversity

  • RF Frequency Band

    500 to 599 MHz

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    164' (50m) (Line of Sight)

  • Max Transmitters per Band

    15

  • Built-In Recorder

    No

  • Encryption

    None

  • Modulation

    QPSK

Receiver

Jump to...

  • Receiver Type

    Plug-In

  • Number of Audio Channels

    1

  • Audio I/O

    1x 1/4" TS Male Unbalanced Output

  • Frequency Response

    20 Hz to 16 kHz

  • Network I/O

    None

  • Word Clock I/O

    None

  • USB/Lightning Connectivity

    Micro-USB Female

  • Power Requirements

    Battery

  • Battery

    1x Built-In Rechargeable

  • Approx. Battery Life

    2 Hours

  • DC Input Power

    5 VDC

  • Display & Indicators

    3x LED (Battery Status, RF Level, Recharging)

  • Battery Info

    Required, Included

  • Battery Material

    Lithium ion

  • Battery Type

    Non universal

  • Battery Quantity

    1

Transmitter

Jump to...

  • Transmitter Type

    Bodypack

  • RF Output Power

    10 mW

  • Audio I/O

    1x TA4/Mini XLR 4-Pin Male Input

  • Auto-Level Control

    No

  • Frequency Response

    20 Hz to 16 kHz

  • Sync Method

    Proprietary

  • Power Requirements

    Battery

  • Approx. Battery Life

    8 Hours

  • Display & Indicators

    1x LED (Battery Status)

  • Battery Info

    Required, not included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

Microphone

Jump to...

  • Microphone Type

    Headset

  • Sound Field

    Mono

  • Outputs

    1x TA4/Mini XLR 4-Pin Female

Other

Jump to...

  • UPC Code

    631922109719

About CAD Audio WX55

Enjoy the easy and exciting performance that the WX55 provides for your next performance. CAD Audio has been creating valued product since 1931 and prides itself on developing and supporting the live performer. Our concept was straightforward - develop a high value wireless microphone system that can cope with today's challenging RF environment that is both easy to operate and exciting to use.

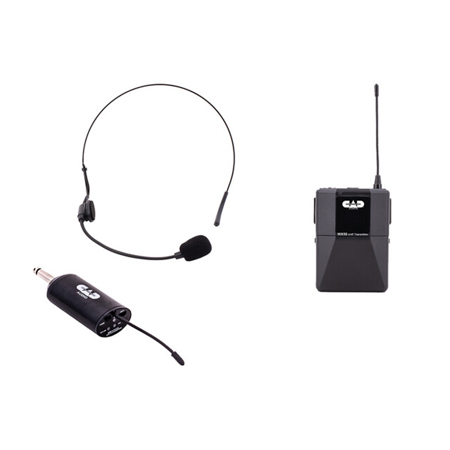

The WX55 is a Digital Frequency Agile Bodypack Wireless System. Designed for quick and easy use - The QuickMic receiver design utilizes an integrated 1/4" jack - Simply plug it into an open channel on your mixer and high-quality audio is ready for your next performance. The transmitter displays current frequency, signal strength and battery life indicator. System includes a head worn microphone.

CAD Audio WX55 Features

  • Digital High Definition Audio
  • Frequency Agile Design (16 switchable frequencies)
  • Use up to 15 systems at the same time
  • Up to 164' (50m) range between transmitter and receiver
  • QuickMic connection to your mixing board via integrated 1/4" jack
  • Transmitter and receiver feature low battery indicators
  • Transmitter utilizes 2 AA Batteries with >8 Hrs of operation
  • Includes head worn microphone

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Digital High Definition Audio
  • Frequency Agile Design (16 switchable frequencies)
  • Use up to 15 systems at the same time
  • Up to 164' (50m) range between transmitter and receiver
  • QuickMic connection to your mixing board via integrated 1/4" jack
  • Transmitter and receiver feature low battery indicators

What's in the box:

  • 1/4" Plug-In Receiver
  • Bodypack Transmitter
  • Headset Microphone
  • USB Type-A to Micro-USB Charging Cable
  • CAD Audio 2 Year Limited Warranty
