Shopper : has this camera come with a tripod ?BARRY N : NoMichael M : It does not come with a tripod.
Shopper : Why Did You Choose This?WILLIAM M : I love canon products and I needed a main camera that has an sdi out for higher quality livestreamsBILL B : The Canon XA55 Professional is an excellent camcorder is every respect, based on extensive personal research.DENYSE P : what work wantedJOSEPH C : Love Canon products

Reviews about this item

Review Summary

2020-10-18T16:05:27

Rated 5 out of 5

You'll love it!

All the toys you need with out the hassle, on a very excellent camera.

STEPHANIE H.

warranty-logo

Protect your product against accidents, breakage and more!

CarePAK PLUS provided through Canon offers protection from accidental damage such as drops, spills, power surges, and more including normal wear and tear, beyond the standard warranty period.

SELECT YOUR PROTECTION PLAN:

Canon XA55 Specifications

  • Standard Definition or High Definition

    4K Ultra High Definition

  • Power Supply (Rated)

    7.4 V DC (Battery Pack), 8.4 V DC (DC IN)

  • Video Recording System

    Compression: MPEG-4 AVC/H.264

    File Format: MP4
    Recording Modes:
    3840 x 2160: 29.97p/23.98p
    1920 x 1080: 59.94p/29.97p/23.98p
    1280 x 720: 59.94p

    File Format XF-AVC
    Recording Modes:
    3840 x 2160: 29.97p/23.98p
    1920 x 1080: 59.94p/59.94i/29.97p/23.98p

  • Audio Recording System

    MP4: MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
    XF-AVC: LPCM (24-bit 4ch)

  • Image Sensor

    1.0" CMOS, RGB Primary Color Filter

  • Total Pixels

    Approx. 13.4 megapixels (4268 x 3148)

  • Effective Pixels

    Approx. 8.29 megapixels (3840 x 2160)

  • Lens

    Canon 15x Zoom, 8.3-124.5mm (35mm equivalent 25.5-382.5mm), f/2.8-4.5

  • Television System

    NTSC

  • Focusing System

    Dual Pixel CMOS AF, Contrast AF
    The detection range for CMOS AF is approx. 80% (vertical) x 80% (horizontal) of the entire field of view.

  • Manual Exposure

    Yes

  • Exposure Control

    Auto Mode
    Manual Mode: P, Tv, Av, M (Manual Exposure), SCN (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks)

  • Maximum Shutter Speed

    1/2000 sec.

  • Minimum Focusing Distance

    10mm at wide end, 60cm across entire zooming range

  • White Balance

    Auto, Preset (Daylight, Tungsten), Color Temperature Settings (2,000-15,000K), Set (1/2)

  • Frame Rate

    60p, 30p, 24p

  • Minimum Illumination

    P Mode: Approx. 1.7 lux (shutter speed: 1/30 sec., 60p with auto slow shutter on)
    Low Light Mode: Approx. 0.1 lux (shutter speed: 1/2 sec.)

  • 3G-SDI Terminal

    Yes

  • Image Stabilization

    Optical system (lens shift) + electronic stabilization (Image rotation and camcorder movements in the yaw and pitch directions are electronically corrected.)
    Modes: Dynamic IS, Powered IS, Standard IS, IS Off

  • Filter Diameter

    58mm

  • Viewfinder

    0.24" TFT wide color LCD, approx. 1.56 million dots, approx. 100% field of view

  • LCD Touch Panel

    3.0" wide LCD and AR surface treatment (approx. 460,000 dots)

  • Microphone

    Stereo (using electret condenser microphone)

  • Recording Media

    SD/SDHC/SDXC Card (2 slots): MP4/XF-AVC movies and photos. UHS-I standard supported. Menu settings can also be recorded.

  • USB Terminal

    mini-B receptacle, Hi-Speed USB, point-to-point class supported (output only)

  • Accessory Shoe

    Cold shoe

  • Video Terminal

    3.5mm stereo mini-jack, HDMI mini connector, 3G-SDI terminal

  • Audio Terminal

    3.5mm stereo mini-jack, XLR 3-pin jack (2 channels, provided on the handle unit), HDMI mini connector, headphone jack, 3G-SDI terminal

  • HDMI Terminal

    HDMI mini connector

  • AV Mini/Headphone Terminal

    3.5mm stereo mini-jack

  • Ethernet Terminal

    No

  • Remote Control Terminal

    2.5mm stereo mini-jack

  • Operating Temperature Range

    For Performance: Approx. 32-104 Degree F (0-40 Degree C), 85% (relative humidity)
    For Operation: Approx. -5-45 Degree C, 60% (relative humidity)

  • Dimensions (W x H x D)

    Approx. 4.3 x 3.6 x 8.4" (109 x 91 x 214mm) (excluding lens hood, mic holder unit, handle unit and battery pack)
    Approx. 4.9 x 3.6 x 10.4" (125 x 91 x 265mm) (including lens hood and Battery Pack BP-820; excluding mic holder unit and handle unit)
    Approx. 5.5 x 8.5 x 10.4" (140 x 216 x 265mm) (including lens hood, Battery Pack BP-820, mic holder unit and handle unit)
    All dimensions exclude the grip belt.

  • Weight

    Approx. 2.1 lb (970g) (body only, grip belt included)

  • UPC Code

    013803317107

32 Accessories for Canon XA55 1" CMOS 4K UHD Pro Camcorder with 15x Optical Zoom Lens, 3G-SDI Output

  • All Accessories (32)
  • Batteries & Power Supply (4)
  • Filters (2)
  • Microphones (5)
  • Bags & Cases (5)
  • Headphones (1)
  • Cables & Adapters (6)
  • Extended Warranty (2)
  • Brackets & Mounts (1)
  • Remotes & Accessories (1)
  • Rain Covers (3)
  • On Camera Lighting (2)

About Canon XA55

FEATURED REVIEWS

You'll love it!

By STEPHANIE H.

All the toys you need with out the hassle, on a very excellent camera.

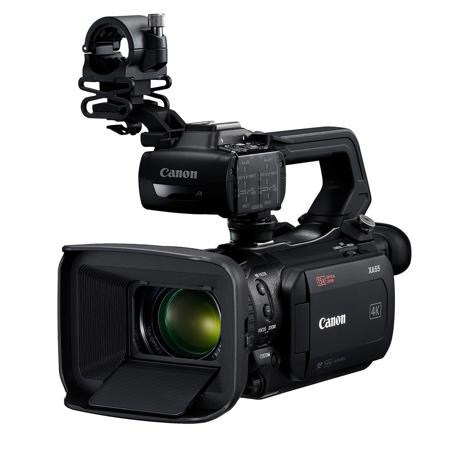

Canon XA55 (w/ 3G SDI Output) 4K UHD Pro Camcorder with 15x HD Optical Zoom Lens

Video producers will love Canon’s XA55 4K UHD Pro Camcorder. It features a 1" CMOS sensor, two XLR audio inputs, one mini-HDMI output, and an additional BNC 3G-SDI output. This 3G-SDI terminal enables quick and reliable transmission of uncompressed video with timecode and audio embedded directly to mobile workstations. The optics of the Canon XA55 includes an integrated 15x HD optical zoom and wide DR gamma support for better recording under low light conditions. It offers four-channel 24-bit audio recording, which allows users to record multiple tracks, voices, and sounds without needing an additional audio recorder. The XA55 has the Dual Pixel AF, allowing for 4K recording at 30 frames per second or full HD at 60 frames per second. Have a compact and reliable camcorder for video productions on the go with the Canon XA55.

The XA55 Professional Camcorder

The XA55 Professional Camcorder offers an outstanding combination of 4K UHD image quality, features and functionality in a compact portable design ideally suited for on-the-go Electronic News Gathering (ENG) and documentary production.

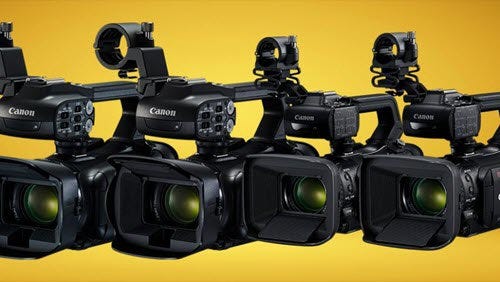

ALC: Canon Introduces 4 New Professional Camcorders for a 24-Hour News Workflow & On-The Go Video Production

Before NAB 2019 kicks off in Las Vegas, Canon is announcing four exciting new camcorders to their existing professional lineup. The Canon XA40 and XA45 are new offerings for journalists and broadcasters, while the XA50 and XA55 have creative video production capabilities. READ MORE...


Featuring a 1.0-inch 4K UHD CMOS image sensor and a DiG!C DV 6 Image Processor, the XA55 can record in XF-AVC or MP4 formats to dual SD card slots. The camcorder is capable of recording 4K UHD video at 30p, as well as slow motion recording up to 60fps in Full HD (30 fps in 4K UHD). A 15x optical zoom lens maintains 4K UHD quality throughout the entire zoom range, while the camcorder's Dual Pixel CMOS AF helps facilitate fast and accurate autofocus.

Featuring a 1.0-inch

1.0-inch 4K UHD CMOS Image Sensor

The XA55 Professional Camcorder features a Canon 1.0-inch 4K UHD CMOS image sensor capable of 4K UHD video capture at 60p and slow motion recording up to 60fps in Full HD (30 fps in 4K UHD), making the XA55 camcorder a strong contender for professional productions, creative fields and more.

1.0-inch 4K UHD CMOS Image Sensor

High Sensitivity / Low Noise

The XA55 camcorder's 1.0-inch sensor allows for larger photosites compared to smaller-sized sensors, resulting in improved images with less noise in low-light situations. The larger sensor also exhibits a shallower depth of field at large apertures, providing greater depth of field control and creative options. The camcorder's DiG!C DV 6 imaging engine further enhances the high sensitivity and low noise performance of the camcorder.

High Sensitivity / Low Noise

Natural and realistic-looking image

For natural and realistic-looking image capture that faithfully represents the scene at hand, Wide DR Gamma achieves a wide dynamic range of 800% to produce almost seamless tone gradations, resulting in smooth detail, accurate color and virtually no blown-out highlights.

natural and realistic-looking image

Face Detection AF

The Face Detection AF feature has two modes - Face Priority AF and Face Only AF - that offer users precise flexibility in how they choose their autofocus for a subject or scene.

Face Detection AF

Slow and Fast Motion Recording

The XA55 Professional Camcorder supports slow and fast motion recording, and can record in a different frame rate from playback for slow and fast motion effects. Slow motion recording of up to 60 fps (x0.4) in Full HD (30 fps in 4K UHD) is supported, helping to create an emotionally moving and exciting style of video.

The XA55 Professional Camcorder supports slow and fast motion recording, and can record in a different frame rate from playback for slow and fast motion effects. Slow motion recording of up to 60 fps (x0.4) in Full HD (30 fps in 4K UHD) is supported, helping to create an emotionally moving and exciting style of video.

3.0-inch Touch Panel LCD and 0.24-inch Electronic Viewfinder

The XA55 Professional Camcorder features a 3.0-inch Touch Panel LCD and a newly designed 0.24-inch Electronic Viewfinder (EVF). The Touch Panel LCD and EVF provide visual recognition of desired features along with a full array of menu options for controlling camcorder settings. The Touch Panel LCD works with Canon's exclusive AF technologies for easy monitoring and one-finger tap-focusing during shooting and the EVF offers 45° of tilt for more comfortable operation in a variety of positions.

3.0-inch Touch Panel LCD and 0.24-inch Electronic Viewfinder

The detachable handle unit can be quickly and easily attached to the camcorder body without tools. The handle includes a zoom lever, a start/stop record button and two XLR terminals that can be controlled independently to help ensure the proper audio levels are being captured correctly. The handle is also capable of mounting a mic holder and features a cold shoe that can be used to mount a variety of other optional peripherals.

Compact and Lightweight Design with Detachable Handle

Product Documents

User Manual

Key Features

  • 1.0" 4K UHD CMOS Image Sensor
  • 15x Optical 4K UHD Zoom Lens with 5-Axis Optical Image Stabilization
  • DiG!C DV 6 Image Processor
  • Dual Pixel CMOS AF
  • 4K UHD and Full HD Recording to Dual SD Card Slots with 3G-SDI Output
  • Slow and Fast Motion Recording

What's in the box:

  • XA55 1 " CMOS 4K UHD Pro Camcorder with 15x Optical Zoom Lens
  • Lens Hood (with Lens Barrier)
  • Battery Pack (BP-820)
  • Compact Power Adapter (CA-570)
  • Handle Unit
  • Mic Holder
  • Wireless Controller (WL-D89)
  • Canon 1 Year Limited Warranty
