Canon XHG1s Specifications

  • Power Supply (rated)

    7.4V DC (battery pack)

  • Video Recording system

    HDV: HDV1080i; DV: DV specifications
    Two rotating heads, helical scan azimuth recording, (Consumer VCR SD specifications)

  • Audio Recording system

    HDV: 2-channel recording MPEG1 Audio Layer II: (Sampling frequency 48 kHz, bit rate 384 kbps)
    DV: 2-channel recording PCM digital recording: 16 bits (48 kHz), 12 bits (32 kHz, 12 bits selectable)

  • Image Sensor

    (3) 1/3-inch Native 16:9 CCDs (1440x1080)

  • Total Pixels

    Approx. 1.67 Megapixels each x 3

  • Effective Pixels

    HD approx. 1.56 Megapixels (1440 x 1080)
    SD (4:3) approx. 1.17 Megapixels (1080 x 1080)
    SD (16:9) approx. 1.56 Megapixels (1440 x 1080)

  • Tape Format

    Video cassettes bearing the MiniDV mark

  • Tape Speed

    HDV/DV: SP mode 18.81mm/second
    DV: LP mode 12.56 mm/second

  • Maximum recording time

    HDV/DV: SP mode 80 min. DV:LP; 120 min.

  • Lens

    Canon 20x HD L Series Zoom, f=4.5-90mm, f/1.6-3.5

  • Focusing System

    TTL-video signal sensing system autofocus; Manual focusing possible

  • Minimum Focusing Distance

    20mm (wide macro), 1m (entire zoom range)

  • Frame Rate

    60i, 24F, 30F

  • Minimum Illumination

    NTSC: 6 lux (Shutter speed 1/60, Gain 18 dB)
    PAL: 5 lux (Shutter speed 1/50, Gain 18 dB)
    Manual mode (when Gain 18 dB, f/1.6, 60i/50i are selected)
    NTSC: 0.4 lux (Shutter speed 1/4), PAL: 0.3 lux (Shutter speed 1/3) (when 60i/50i is selected)

  • Image Stabilization

    SuperRange Optical (Lens Shift)

  • Filter Diameter

    72mm

  • Viewfinder

    .57-inch widescreen, approx. 269,000 pixels

  • LCD Screen

    2.8-inch widescreen, approx. 207,000 pixels

  • Microphone

    High-performance stereo electric condenser microphone

  • Recording Media

    SD/SDHC (photos), MMC (photos)

  • DV Terminal

    HDV/DV Special 6-pin connector (IEEE1394 compatible); both input/output

  • Video Terminal

    Also serves as RCA pin jack (yellow); both input/output
    Also serves as BNC connector; output

  • Output Levels

    -12 dBV (with 47-kohm load, 1 Vrms output level setting and -12 dB full scale)

  • Audio Terminal

    XLR 3-pin jack (2 systems); Switchable between MIC/LINE

  • Microphone Terminal

    3.5mm stereo mini-jack

  • Operating Temperature range

    32 - 104° F (0 - 40° C)

  • Dimensions

    6.4 x 7.6 x 15.5 in. (163 x 192 x 394mm)

  • Weight

    4.7 lbs (2135 g) (not including lens hood and eyecup)

  • Weight (fully loaded)

    5.3 lbs (2400 g)

  • Warranty

    Canon 1 year parts & labor limited warranty

  • UPC Code

    013803100747

6 Accessories for Canon XH G1S High Definition HDV MiniDV Format Camcorder with HDV1080i Recording, 2.8" LCD Screen

  • All Accessories (6)
  • Filters (3)
  • Bags & Cases (1)
  • Quick Release (1)
  • Batteries & Power Supply (1)

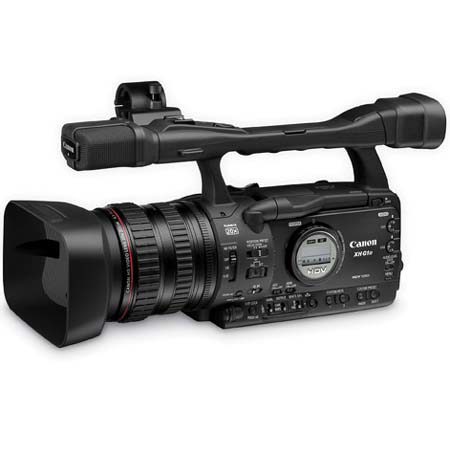

About Canon XHG1s

The Canon XH G1S High Definition HDV Camcorder is a lightweight, handily-sized high performance camcorder. Industry standard HD-SDI, Genlock and Time Code IN/OUT, all SMPTE compliant and a wide range of image parameter controls makes the XH G1S a leading choice in the category. Starting with the superb Canon Genuine Canon 20x HD lens with Professional L Series Fluorite, the XH G1S adds 3CCDs, each of which is at 1440 x 1080 pixels.

It also means you can be sure that your shooting in the field will be the best it can be with Canon's SuperRange Optical Image Stabilization. It corrects for a wide range of camera movement and vibration and combined with Instant AF (Auto Focus) you'll get ultra-quick, accurate focus. The DIGIC DV II HD image processor finishes the picture with improved color reproduction and noise reduction - for a final result that delivers excellent image quality. To further ensure that your vision is realized, the XH G1S gives you features that let you make manual adjustments to fine-tune your video- the ultimate in total image control.

For those situations in which you need to let your camcorder take care of exposure and image controls, the automatic settings on the XH G1S will expertly assist you. You'll find flexibility, versatility and capability in the extensive array of features and optional accessories of the XH G1S. It is bound to meet and exceed your highest expectations.

Canon XHG1s Features

  • Genuine Canon 20x HD Video Lens III with Professional L-Series Fluorite: The XH G1S comes with a Genuine Canon 20x HD lens that shows why the name Canon is synonymous with optical excellence
  • SuperRange Optical Image Stabilizer: The XH G1S also comes with Canon's innovative SuperRange Optical Image Stabilizer (OIS), which combines gyro- and image-sensors to give image stabilization through a wider range of camera motions
  • Three 1/3" Native 16:9 CCD Image Sensors with 1.67 Megapixels (1440 x 1080): The XH G1S is equipped with three 1/3" Native 16:9 CCDs (1.67 Megapixels) - the same image sensor that is at the heart of Canon's exceptional XL H1S and XL H1A
  • Canon DIGIC DV II HD Image Processor: DIGIC DV II HD is the next generation of Canon's exclusive DIGIC DV signal processing technology. Designed specifically for processing the immense volume of information in 1080i HD signals, DIGIC DV II ensures optimal image quality for HD video
  • Complete Customization: Image, display and the functionality of the camcorder can be customized to suit your preference or application. This customization ensures that your XH G1S fits your creative, production and personal needs and preferences exactly
  • Image Control: A variety of image control functions gives you as much or as little exposure control as you want and lets you fine-tune your exposures for outstanding video
  • 7 Program AE Modes: A variety of AE modes allow you to take as much or as little control of exposure as you need
  • 9 Custom Presets: With the XH G1S, you can make set a variety of image quality adjustments and store them for later use or for exporting to other camcorders
  • Custom Functions: With the XH G1S's Custom Functions capability, you can establish the camera settings best suited to your preference. Three custom functions (C.Fn1, C.Fn2 and C.Fn3) are provided. Each custom function allows a total of 21 main items to be selected
  • Custom Display: The Custom Display function lets you set 22 display items to create a custom menu to suit your specific needs. Once set, the functions can be recorded on a memory card and can then be downloaded to another XH G1S or XH G1S camcorder
  • 1080 HD Capture with 60i, 30F, or 24F Progressive frame rates: The XH G1S delivers 1920 x 1080 HD, with the three Native 16:9 CCDs and the Genuine Canon 20x HD lens and DIGIC DV II Image Processor
  • 30F Progressive Frame Rate: In addition to the standard interlaced video frame rate of 60i, you may choose to set the XH G1S to capture video in 30F (30 progressive frames, recorded in 60i) which is ideal for footage which will be uploaded to the Internet
  • 24F Progressive Frame Rate: This setting gives a "film look" to the footage you record as the video frame capture rate is 24F, giving the appearance of the same frame rate as movie film
  • 60i / 50i Video Frame Rate Option: With the XH G1S's versatile open-architecture approach, you can even customize your HD camcorder to record in both 60i and 50i (this optional upgrade must be performed by a Canon Factory Service Center)
  • HD-SDI/SD-SDI Out, Genlock In, Timecode In & Out and Other Terminals: The XH G1S gives capabilities required by ENG, TV and commercial production professionals
  • The HD-SDI Output provides 1.485 Gbps signal at 1920x1080 resolution with 4:2:2 color sampling and embedded audio and time code
  • SMPTE Time Code Input & Output Terminals: Genlock Input (HD or SD reference signal synchronization in Genlock HD mode)
  • 6-Pin IEEE 1394 terminal provides a more rugged connection when using external devices and an external EVF monitor output terminal is also fitted to allow the use of a component external monitor for more accurate image composing and video review
  • Component Video Out
  • LANC Terminal
  • Flash Accessory Shoe supports Canon EX Series Speedlites, enabling you to use the proper lighting accessory to provide the illumination you need for practically any subject in any situation
  • Audio System: The two built-in XLR Terminals with independent audio level control on the XH G1S helps you to record audio at as high a level as your video
  • Monitoring: To assist you in making sure that the shots you see are the shots you get, the XH G1S has a number of enhancements in function monitoring
  • Operation: Improvements have been made to the manual zoom, manual focus and iris ring on the XH G1S to further enhance its operability and which make it even easier to achieve your creative vision
  • Zooming: Responsive manual zoom ring with three settings (Slow, Normal, Fast) Three preset zoom speeds (Slow, Normal, Fast), Increased weighting of zoom ring for smoother control, Smooth zoom start and stop, Selectable rotational angle of zoom between Wide and Tele

What's in the box:

  • Canon XH G1S HDV Camcorder with Lens Cap
  • CA-920 Compact Power Adapter
  • WL-D5000 Wireless Controller
  • DTC-1000 Component Cable
  • Lens Hood
  • SDC-32M SD Memory Card
  • Two R6/AA Batteries
  • AC Cable
  • Tripod Adapter Base
  • BP-950G Battery Pack
  • STV-290N Stereo Video Cable
  • IFC-300PCU USB Cable
  • DC-920 Power Supply Coupler
  • SS-1100 Shoulder Strap
  • HDVM-E63PR Digital Video Cassette
  • Eyecup
  • External Microphone Holder Adjustment Band
  • Canon 1 Year Parts & Labor Limited Warranty
