Canare 110-75 Ohm Panel Mount Digital Audio Impedence Transformer, XLR3(M)-BNC
See all Canare items

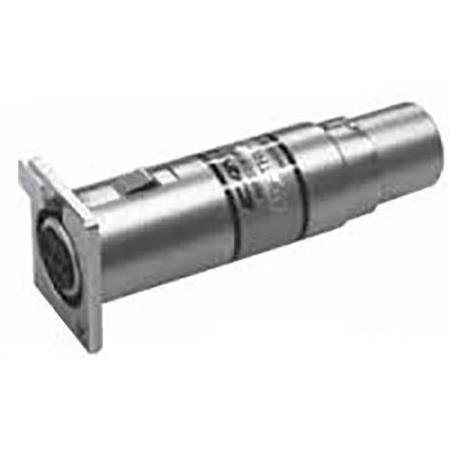

Canare 110 to 75 Ohm Panel Mount Digital Audio Impedence Transformer with Flange, XLR3(M)-BNC Jack

SKU: CAXJ3MTRCBCJ
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Canare Impedance Transformer Specifications

  • Flange Type

    ITT XLR-F77

  • Bandwidth

    0.1 - 6MHz

  • Maximum Voltage

    5Vp-p

  • VSWR

    <1.1

  • Insertion Loss

    <0.3dB

  • 110 ohm Port (Balanced)

    XLR3 Female
    1: Shell
    2: Hot
    3: Cold

  • 75 ohm Port (Unbalanced

    75 Ohm BNC Receptacle

About Canare Impedance Transformer

Canare Impedance Transformer Features

  • Post Production Suites
  • Recording Studios
  • AES/EBU Digital Audio Routing
  • SMPTE 276M and AES3 Transmission Standard
  • Coaxial transmission of 2 Channel Digital Audio
  • Allows longer cable runs than 110 ohm twisted pair
  • AES/EBU Signal distribution using Canare 75 ohm Video Patchbays
