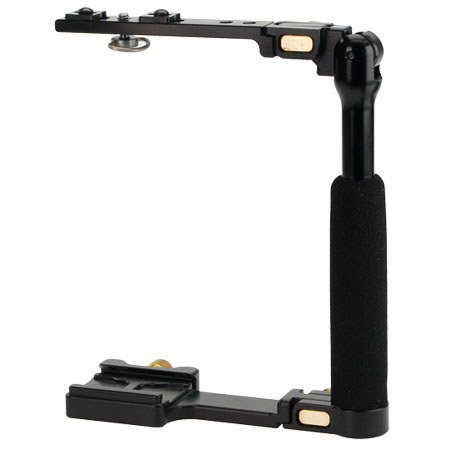

Custom Brackets CB Folding-SA Flash-Rotating Bracket
See all Custom Brackets items

Custom Brackets CB Folding-SA Flash-Rotating Bracket with Arca Swiss Quick Release Clamp

SKU: CBCBFSA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the material of the CB Folding-SA Flash-Rotating Bracket?

The bracket is made of durable black anodized aluminum alloy, making it both sturdy and lightweight.

Does the bracket include an Arca-Swiss style camera plate?

No, the bracket features an Arca Swiss style quick release clamp for camera attachment, but an Arca-Swiss style camera plate is required and not included.

Can the flash be rotated from horizontal to vertical position?

Yes, the bracket includes a spring-loaded pivoting tension mechanism that allows you to smoothly rotate your flash from a horizontal to a vertical position.

Does the bracket require any maintenance or lubrication?

No, the CB Folding-SA Flash-Rotating Bracket is maintenance-free and does not require any lubrication.

Is this bracket suitable for smaller cameras?

Yes, the bracket is specifically designed to accommodate smaller cameras, including those without add-on vertical grips or battery packs.

Shopper : Why Did You Choose This?Mary G : this bracket is made with good steel and it folds... the cheaper brackets all don't tighten well where your camera attaches & on the top where your flash attaches

Reviews about this item

Review Summary

Custom Brackets CB Folding-SA Flash-Rotating Bracket Specifications

  • Construction

    Anodized aluminum alloy
    1/4"-20 screw has D-clip

  • Mounting

    Arca-Swiss style quick release camera clamp
    1/4"-20 flash screw
    1/4"-20 tripod socket

  • Nominal Lens to Flash Distance

    11" (27.94cm)

  • SP-506 D-Clip Screw: Dimensions

    Screw: 0.50" (1.27 cm)
    Screw head: 0.19" (0.48 cm)

  • Dimensions (HxWxD)

    Open Position: 8-1/2x7x2-3/4" (21.59x17.78x6.985cm)
    Storage Position: 8-1/2x2-1/4x2-3/4" (21.59x5.715x6.985cm)

  • Weight

    12.5oz (354.36g)

  • UPC Code

    814469006349

About Custom Brackets CB Folding-SA Flash-Rotating Bracket

The Custom Brackets CB Folding-SA Flash-Rotating Bracket is designed to accommodate smaller cameras or those without add-on vertical grips or battery packs. It features an Arca Swiss style quick release clamp for camera attachment. An Arca-Swiss style camera plate is required and not included. Spring-loaded pivoting tension makes it easy to rotate the flash from horizontal to vertical position and a flash anti-twist mechanism is included, as well. A foam grip affords comfort.

In addition to the standard 1/4"-20 flash screw, the bracket has a 1/4"-20 tripod mount. It's made of black anodized aluminum alloy for durability and light weight and folds into a compact size for easy storage. It's also maintenance-free, requiring no lubrication.

Custom Brackets CB Folding-SA Flash-Rotating Bracket Features

  • Arca-Swiss style camera quick release clamp
  • Professional-looking design
  • Folds up into compact size for storage
  • Spring-loaded pivoting tension makes it easy to rotate from horizontal to vertical
  • Black anodized aluminum for strength and light weight
  • Maintenance-free; no lubrication required
  • Comfortable foam grip

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Arca-Swiss style camera quick release clamp
  • Professional-looking design
  • Folds up into compact size for storage
  • Spring-loaded pivoting tension makes it easy to rotate from horizontal to vertical
  • Black anodized aluminum for strength & light weight
  • Comfortable foam grip

What's in the box:

  • Custom Brackets CB Folding-SA Flash-Rotating Bracket
  • Foam Grip
  • Arca-Swiss Style Camera Quick Release Clamp
  • Flash Screw
  • Flash Anti-Twist
  • 1/4 " x 20 Tripod Mount
  • Custom Brackets 5 Year Warranty
