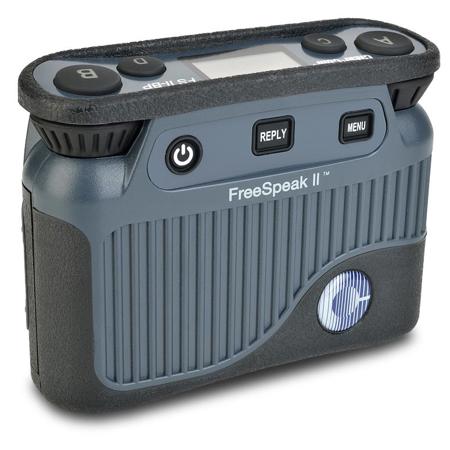

Clear-Com FSII-BP19-X4-US FreeSpeak II Digital Wireless Belt Pack Solution

SKU: CCFS2BP19X4U

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Clear-Com FSII-BP19-X4-US Specifications

  • Audio Bandwidth

    200Hz - 7.5KHz

  • No. of Full-Duplex Audio Paths

    Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume

  • Mode of Operation

    Full duplex on all routes

  • Level/Talk Controls

    4 pushbuttons, a reply button and 2 rotary controls

  • Enter/Answer-Back Button

    1

  • Frequency Spectrum

    1.88-1.93MHz for EU and US cellular auto roaming technology

  • Modulation

    GFSK, TDMA frame 10ms Full and Long slot

  • Output power

    18 - 20dBm (US)

  • Range

    Up to 1475ft (450m) in good radio frequency conditions, 800 feet typical

  • Battery

    Li-Ion or 3 AA alkaline cells

  • Battery Charging

    Drop-in charger (AC60) or local USB

  • Battery Life

    18+ hours with Li-Ion; 9 hours with 3x Alkaline AA cells

  • Headset Connector

    4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT

  • Microphone Type

    Electret and Dynamic, selectable in beltpack menu

  • Headset Limiter

    Selectable from beltpack menu

  • Environmental

    -67 to 158 deg. F / -55 to 70 deg. C (IP-65 water and dust resistance)

  • Dimensions

    1.5 x 5 x 3.75" / 38.10 x 127.00 x 95.25mm (Tapered design at largest points)

  • Weight

    9.0oz / 255.15g (Including Batteries)

About Clear-Com FSII-BP19-X4-US

The FSII-BP19 is a rugged, water-resistant beltpack that operates in the ISM licensefree1.9GHz frequency range. Featuring the "Clear-Com Sound", the FSII-BP19 has high audio bandwidth for superior intelligibility and listening comfort.

• Over 1400ft range in good radio conditions
• 1.9 and 2.4GHz beltpacks operate on a single system
• Up to 65 - 90 beltpacks on a single system
• "Listen Again" message replay
• Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
• Over-the-air beltpack registration
• 18+ hour battery life or USB port for continuous operation
• XLR-4M, XLR-5F or XLR-7M headset connector options
• IP-65 rating for wet and dusty conditions
• Built-in flashlight

Operation
The FSII-BP19 can connect to the FreeSpeak II base station or to Eclipse HX card frame matrices using the E-QUE-HX interface card. FSII-BP19 users can roam seamlessly between FSII-19-TCVR antennas over wide areas. The "Listen Again" feature allows users to replay earlier commands, eliminating the need to repeat communication or disturb productions. FSII-BP19 have continuous reception over a 1400 ft range in good radio conditions.

Increase System Size
The FSII-BP19 can be mixed with FSII-BP24 on the same system, increasing the quantity of beltpack users in a single radio space. In the USA between 50 - 65 users can operate on a single system, while the rest of the world can have between 70 - 90 users in the same radio space.

Durability
The FSII-BP19 are IP-65 rated for wet weather or dusty conditions making them ideal for outdoor productions. For better grip and protection, the beltpacks have a rubberized over-mold to protect from the most rugged environments.

Battery Life and Charging
Using the BAT60 Li-Ion battery, the FSII-BP19 has 18+ hours of battery life. Using an alternative set of 3 AA cells, the battery life is 6-9 hours. The beltpacks also include an USB charging port for recharging or for continuous powered transmissions.

What's in the box:

  • Clear-Com FSII-BP19-X4-US FreeSpeak II Digital Wireless Belt Pack Solution
  • BAT60 Li-Ion Battery
  • USB Charger
  • XLR-4M Headset Connector Type
  • Clear-Com 4 Year Limited Warranty (2 Year + 2 Year with Registration)
