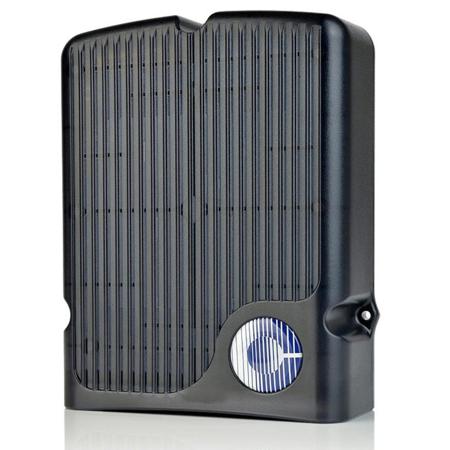

Clear-Com FSII-TCVR-19-US FreeSpeak II Wireless Intercom Active Antenna
See all Clear-Com items

Clear-Com FSII-TCVR-19-US FreeSpeak II Wireless Intercom Active Antenna

SKU: CCFS2TCVR19U
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Clear-Com FSII-TCVR-19-US Specifications

  • Frequency Spectrum

    1.88 - 1.93MHz for EU and US Cellular auto roaming technology

  • Modulation

    GFSK, TDMA frame 10ms Full and Long slot

  • Output power

    18 - 20dBm (US)

  • Operating Temperature

    32 to 125 deg. F / 0 to 52 deg. C

  • Storage Temperature

    32 to 150 deg. F / 0 to 66 deg. C

  • Humidity

    Between 20% and 90%, Non-Condensing

  • Method of RF Operation

    Uses two slots per beltpack for wider frequency response

  • RF Output

    250mW burst, average as new FCC level 2 - 4mW

  • Beltpacks Supported Per Active Antenna

    5

  • Active Antenna Transmission Range

    Up to 1475' / 449.59m to beltpack in good conditions, 800 feet typical

  • Maximum Distance

    Base to Antenna via Transceiver:3200' / 975.37m on 4-pair CAT-5 or better cable
    Antenna Powered by FSII-BASE (Base): 975' / 297.18m on CAT-5 or better cable

  • Local Powering

    24VDC power supply

  • Connection to FreeSpeak II Base

    RJ-45

  • Mounting

    Integral screw mounts or standard microphone mounting (imperial and metric)

  • Dimensions (W x D x H)

    5.5 x 2 x 6.75" / 139.70 x 50.80 x 171.45mm

  • Weight

    7.0oz / 198.45g

About Clear-Com FSII-TCVR-19-US

The FSII-TCVR-19 is an active transceiver antenna for the FSII-BP19 beltpacks. The antenna can be locally powered or powered via the FSII-BASE or matrix on shorter connections (less than 1000ft). The FSII-TCVR-19 has a mount for wall or microphone stand. A green status light is visible from either mounting orientations. When mixed with FSII-TCVR-24 antennas, a single radio space can support up to 65-90 FreeSpeak II1.9GHz or 2.4GHz beltpacks.

• Uses existing FSII base, E-QUE-HX cards and PD2203 splitter hardware
• Supports 5 FSII-BP19 beltpacks per FSII-TCVR-19 transceiver
• Supports systems with up to 65-90 beltpacks when mixed with FSII-24- TCVRs
• Green LED status indicator on top and bottom
• Mic stand or wall mount orientation (metric and imperial threads)
• IP-65 rating for wet and dusty conditions

Durability
The FSII-TCVR-19 is IP-65 rated for wet weather or dusty conditions making them ideal for outdoor productions.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Clear-Com FSII-TCVR-19-US FreeSpeak II Wireless Intercom Active Antenna
  • Clear-Com 90 Day Limited Warranty
  • Clear-Com 2 Year Warranty (with Registration)
