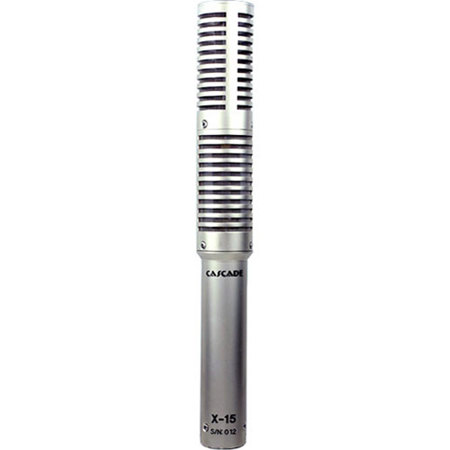

Cascade Microphones X-15 Stereo Figure 8 Ribbon Microphone with Lundahl LL2912 Transformers, Silver

SKU: CD104L

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cascade Microphones X-15 Stereo Ribbon Mic with LL2912 Transformers, Silver Specifications

  • Ribbon type

    99% Pure aluminum, 2.5 micron

  • Polar pattern

    Figure 8 Symmetrical design

  • Sensitivity

    -51.7 dB +/- 2dB (2.6 mV/Pa)

  • Frequency Range

    25 Hz to 16 kHz

  • Impedance

    <=200 Ohms

  • Recommended load impedance

    >1000 Ohms

  • Connector

    Heavy gauge 5-Pin male XLR

  • Diameter

    1.25" (O.D. grill)
    1" / 2.54cm (O.D. body)

  • Overall length

    9.5" / 24.13cm

  • Dimensions (L x W)

    1.75 x 0.18" / 4.45 x 0.46cm

  • UPC Code

    192223057012

11 Accessories for Cascade Microphones X-15 Stereo Figure 8 Ribbon Microphone with Lundahl LL2912 Transformers, Silver

  • All Accessories (11)
  • Cables & Adapters (11)

About Cascade Microphones X-15 Stereo Ribbon Mic with LL2912 Transformers, Silver

The X-15 Stereo ribbon microphone houses two separate matched ribbon motors that are positioned one above the other. The elements are offset 90 degrees and are configured in the Blumlein setup. Stereo separation is superb and off-axis coloration is minimal. Add in the excellent sensitivity and frequency response range the X-15 will produce an audio that is second to none.

The fit and finish are of top quality and includes a premium suspension shockmount, thick padded leatherette pouch and an upgraded aluminum case. Package also includes a 20ft. 5-Pin XLR cable that connects directly to a splitter cable that Y's to two 3-PIN MALE XLR connectors for connection to outboard gear. Legendary symmetrical ribbon design is incorporated into the X-15.

Unlike most ribbon motors designed today with an offset ribbon element the new Cascade X-15 houses two hand-tuned ribbon elements that incorporate the legendary symmetrical ribbon design. This design offers a true figure 8 pattern. The corrugated aluminum membrane itself is positioned in the center from front to back, thus producing a balanced audio input signal to both sides of the ribbon assembly.

What's in the box:

  • Cascade Microphones X-15 Stereo Figure 8 Ribbon Microphone with Lundahl LL2912 Transformers
  • Aluminum Case
  • Premium Suspension Shockmount
  • Thick Padded Vinyl Pouch
  • 20' 5-Pin XLR Cable
  • Splitter Cable for Left Right Channels
  • Micro-Fiber Cleaning Cloth
  • Specifications and Typical Measurement Report
  • Cascade Microphones 1 Year Warranty on Ribbon Capsule
  • Cascade Microphones 5 Year Warranty on Microphone
