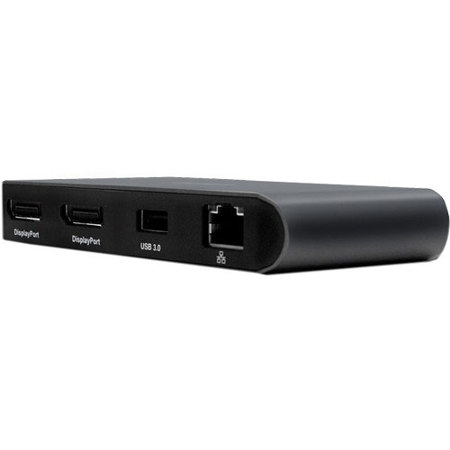

CalDigit Mini Dock, 2x DisplayPort 1.2/Thunderbolt 3/USB 3.0/Gigabit Ethernet
See all CalDigit items

CalDigit Mini Dock with Dual DisplayPort 1.2, Thunderbolt 3, USB 3.0, Gigabit Ethernet Port

SKU: CD500370
(3)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2024-02-24T11:35:12

Rated 4 out of 5

Tough Product

Well made product. I pack up my laptop daily, unplug this thing put it into a bag and take it out again the next day and it has not failed for almost a year with all the beating. Highly recommend the product.

Inna G.

2022-09-28T11:51:12

Rated 4 out of 5

Compact but not perfect for most Thunderbolt 3 PCs

Very compact. Make sure your Thunderbolt 3 on your PC can support two display outputs over the port. Otherwise, you'll be stuck with one monitor. Also, can be a bit spotty for USB dongles for keyboards/mice.

BRANDY S.

2019-12-23T10:00:06

Rated 5 out of 5

Cal

Very good well thought out

Jameel R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CalDigit Mini Dock Specifications

Connections

Connections

Jump to...

  • USB

    1x USB 3.1 Gen 1 Type-A

  • Thunderbolt

    1x Thunderbolt 3

  • Ethernet

    1x RJ45 (10/100/1000 Mbps)

  • Display

    2x DisplayPort 1.2

Host Connections

Jump to...

  • System Connection

    1x Thunderbolt 3 Type-C Male

  • Connection Type

    Integrated Cable

General

Jump to...

  • Number of Displays Supported

    2

  • Maximum Resolution Supported

    4096 x 2160 at 60 Hz

  • Data Transfer Rate

    40 Gb/s Thunderbolt 3

  • Operating System Support

    Windows, macOS/OS X

  • UASP Support

    No

  • Power Source

    Bus Powered

  • Operating Temperature

    32 to 95 deg. F (0 to 35 deg. C) (Recommended)

Physical

Jump to...

  • Cable Length

    5.3" (13.46cm)

  • Enclosure Material

    Aluminum

  • Lock Slot

    No

  • Dimensions

    4.9 x 2.6 x 0.7" (12.45 x 6.60 x 1.78cm)

Other

Jump to...

  • UPC Code

    4712010084814

About CalDigit Mini Dock

FEATURED REVIEWS

Cal

By Jameel R.

Very good well thought out

Return of the Ports
The Thunderbolt 3 mini Docks provide the easiest and most affordable way of bringing back your laptop's ports. Thunderbolt 3 users can re-connect with their legacy devices in the most convenient way possible.

Dual 4K Displays
The mini Docks offer the easiest way to connect dual 4K 60Hz monitors to your Thunderbolt 3 laptop in either mirrored or extended modes.

One Cable
A single tethered cable from the mini Dock to your Thunderbolt 3 laptop is all it takes to light-up two displays, connect to the internet and add USB devices. Got a new Mac or PC Thunderbolt 3 laptop Are you plugging in countless Type-C Adapters Make your life easier with the Thunderbolt 3 mini Docks, at home or on the road.

The Perfect Travel Companion
Take the mini Dock on the road to connect all your devices.

Thunderbolt 3
These docks are fully certified Thunderbolt 3 devices, unlike cheap USB-C Adapters that only offer 5Gb/s performance, the CalDigit mini Docks offer 40Gb/s to take advantage of your Thunderbolt 3 laptop.

USB Connectivity
Connect various USB devices such as external drives, keyboards & more.

Wired
The Gigabit Ethernet port can connect to a stable connection at home or in a hotel.

MAC & PC
Whether you're using the latest MacBook Pro, MacBook Air or Windows Thunderbolt 3 PC, the CalDigit mini Docks are fully compatible with both.

Aluminum
Unlike cheap USB-C Adapters, CalDigit's mini Docks are built from aluminum, in order to endure the rigors of travel.

Say Goodbye to Cheap USB-C Adapters
When it comes to USB-C mini docking solutions, they may pack many ports into their design, but they don't adhere to the 15W of power allocated to the Thunderbolt 3 port. The CalDigit mini Docks have just the right amount of ports to be under the 15W of bus-power that's served to your laptop's ports. Cheap USB-C adapters don't follow the Thunderbolt 3 specification and can be harmful to your laptop and cause power issues since they could only get 7.5W from the computer. CalDigit's mini Docks on the other hand don't have this problem.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • CalDigit Mini Dock
  • CalDigit 1 Year Limited Warranty
