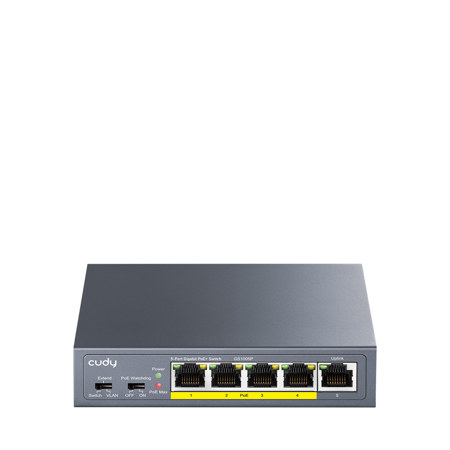

A wall-mounted PoE switch with a 60W power supply and a silent cooling system, featuring Default/Extend/VLAN mode switch and Watchdog on/off switch.
Reliable PoE for 24/7 Consistent Operation
IEEE 802.3at/af. Up to 30W Per Port
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.
PoE Auto Recovery
Watchdog will be enabled under VLAN and Extend modes, and if a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.
Extend PoE Reach. Enhance Client Security
Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Easy Installation. Robust Protection
Plug and Play
Connect your router to the uplink port, client devices to PoE ports, and power on the PoE switch-then you're good to go.
Fit into a Distribution Box
Fits easily into most distribution boxes and makes cable management a breeze.
Protect Clients with Outstanding EMC
Shield your cameras and access points, from surges in power grid and ESD, delivering rock-solid reliability.
• ESD: Contact 6kV; Air 8kV
• Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Metal Casing. Wall mount Ready
Metal casing delivers simplicity and protection for the network hub. Need to save floor spaces? The wall-mounting kit is included in the box to help you.
Versatile Scenarios
• Surveillance
• Office Networking
• Campuses Wi-Fi
• Accesses and Signages
