New Arrival

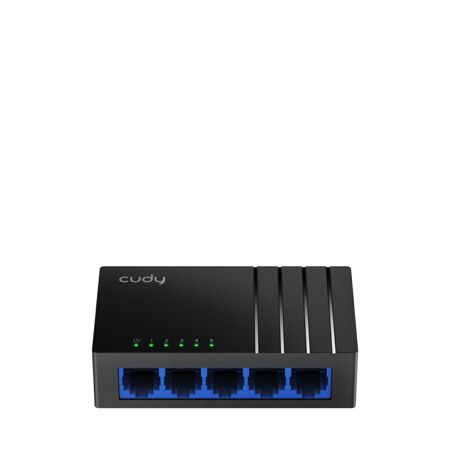

Cudy GS105D 5-Port Gigabit Ethernet Unmanaged Network Switch

SKU: CDGS105D MFR: GS105D
$14.99
Earn VIP Reward Points

Key Features

  • Experience lightning-fast data transfers with 5 Gigabit Ethernet ports, perfect for your home network.
  • Enjoy seamless plug-and-play setup; this unmanaged network switch requires no complex configuration.
  • Expand your network effortlessly, connecting multiple devices like PCs, consoles, and smart TVs with ease.
  • Benefit from reliable, high-speed connectivity for all your streaming, gaming, and work-from-home needs.
  • Its compact, desktop or wall-mountable design saves space while boosting your network's performance.
  • Trust in Cudy's quality for a stable and efficient network switch that keeps your connections strong.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Cudy GS105D Specifications

Interfaces

Interfaces

Jump to...
  • Gigabit RJ45 Ports

    5

  • LED

    Power
    Speed/Link/Act of Each Ethernet Port

  • Power Interfaces

    DC Jack

Performance

Jump to...
  • Copper Speed and Distance

    Cat. 3 or higher cable: 328.08' (100m) at 10 Mbps
    Cat. 5 or higher cable: 328.08' (100m) at 100 Mbps
    Cat. 5e or higher cable: 459.3' (140m) at Gigabit

  • MAC Address Table

    2048

  • Max Switching Capacity

    10 Gbps

  • Max Forwarding Rate

    7.44 Mpps

  • Jumbo Frame

    9 KB

  • Packet Buffer

    1 Mbit

  • Basic Power Saving

    True

  • Power Methods

    DC

  • Power Input

    5V=0.55A

  • Power Adapter

    Input: 100-240V-, 50/60Hz
    Output: 5V=0.55A

  • Max Power Consumption

    1.2W

  • Idle Power Consumption

    0.2W

Switching

Jump to...
  • 802.3 Protocols

    802.3x Flow Control
    802.3i 10BASE-T
    802.3u 100BASE-TX
    802.3ab 1000BASE-T

  • L2 Features

    IGMP Snooping

Reliability

Jump to...
  • EMS

    IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
    IEC/EN 61000-4-5, Level 3 Surge: 2kV

  • Environment

    Operating Temperature: 32 -104 Degree F (0 - 40 Degree C)
    Storage Temperature: -40 - 158 Degree F (-40 - 70 Degree C)
    Operating Humidity: 10% - 90% non-condensing
    Storage Humidity: 5% - 90% non-condensing

General

Jump to...
  • Color

    Black

  • Casing Material

    Plastic

  • Installation

    Desktop
    Wall-mount

  • Country of Origin

    China

  • Dimensions

    3.46 x 2.07 x 0.94" (88 x 52.5 x 24mm)

  • Weight

    2.01 oz (57.1g)

  • UPC Code

    644925515050

About Cudy GS105D

A 5-GbE switch with a modern design, supporting full Gigabit speeds on all five ports over distances up to 140 m, and featuring a super-efficient chipset with idle power consumption of just 0.2 W.

A Long-Distance Switch with Power Saving

Super-Fast Gigabit
Five 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.

Extra Transmission Distance
140 meters of Gigabit transmission adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.

Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.

A Plug and Play Network Hub
• Connect Office Computers to Wired Network
• Boost Home Devices with Stable Ethernet

Compact Size. Modern Design
Compact enough to fit in most home network distribution boxes. The wave line and blue ports cast a modern aesthetic.

Cudy GS105D Features

  • 5x Gigabit Ethernet Ports
  • Max 140m Gigabit Transmission
  • IGMP Snooping
  • Max 1.2W, Idle 0.2W
  • Desktop, Wall-Mount

Key Features

  • Experience lightning-fast data transfers with 5 Gigabit Ethernet ports, perfect for your home network.
  • Enjoy seamless plug-and-play setup; this unmanaged network switch requires no complex configuration.
  • Expand your network effortlessly, connecting multiple devices like PCs, consoles, and smart TVs with ease.
  • Benefit from reliable, high-speed connectivity for all your streaming, gaming, and work-from-home needs.
  • Its compact, desktop or wall-mountable design saves space while boosting your network's performance.
  • Trust in Cudy's quality for a stable and efficient network switch that keeps your connections strong.

What's in the box:

  • Cudy GS105D 5-Port Gigabit Ethernet Unmanaged Network Switch
  • Power Adapter
  • User Manual
  • Cudy 2 Year Limited Warranty
