Review Summary
5
Power
Speed/Link/Act of Each Ethernet Port
USB-C Port
Cat. 3 or higher cable: 328.08' (100m) at 10 Mbps
Cat. 5 or higher cable: 328.08' (100m) at 100 Mbps
Cat. 5e or higher cable: 459.3' (140m) at Gigabit
2048
10 Gbps
7.44 Mpps
15 KB
3 Mbit
True
USB-C
5V=0.55A
2W
1.4W
802.3x Flow Control
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV
Operating Temperature: 32 -104 Degree F (0 - 40 Degree C)
Storage Temperature: -40 - 158 Degree F (-40 - 70 Degree C)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing
White
Plastic
Desktop
Wall-mount
China
3.46 x 2.07 x 0.94" (88 x 52.5 x 24mm)
1.87 oz (53g)
193138074262

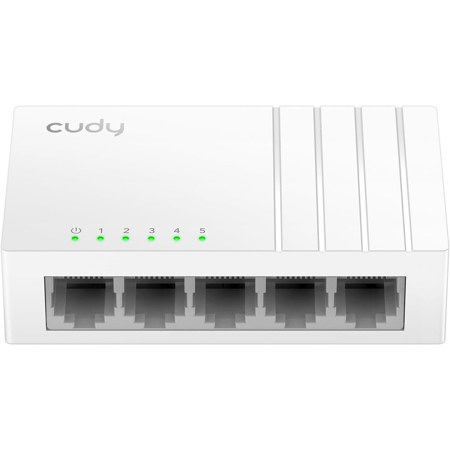

A mini Ethernet switch powered by USB-C, ideal for sharing a wired network on a desktop, wall, or in a distribution box.
Flexible USB-C Powering
No Sockets Nearby? No Worries
No power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.
A Moving Network Hub
Do maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day with a 10,000 mAh power bank.
Reliable Transmitting
A packet buffer prevents packet loss and improves the reliability of your network.
Extra Transmission Distance
140 meters of Gigabit transmission adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.
Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.
Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.
Compact Size. Modern Design
Compact enough to fit in most home network distribution boxes. The wave line white casing casts a modern aesthetic. The retail package comes with a USB-A to USB-C power cable.
Expand Network for More Devices
Connect Office Computers to Wired Network
Boost Home Devices with Stable Ethernet
