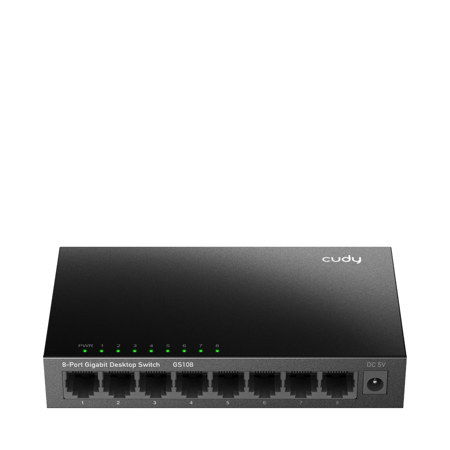

Cudy GS108 8-Port Gigabit Ethernet Unmanaged Network Switch with Metal Casing

SKU: CDGS108 MFR: GS108
$21.50
Earn VIP Reward Points

Key Features

  • Enjoy seamless data flow with 8 Gigabit Ethernet ports, perfect for your home network.
  • Experience reliable, high-speed connections for gaming and streaming with 16 Gbps switching capacity.
  • The durable metal casing ensures long-lasting performance and protects your network switch.
  • Set up your network effortlessly with this unmanaged switch; just plug and play!
  • Optimize your office connectivity with a powerful 8-port network switch for multiple devices.
  • Benefit from energy-efficient operation, consuming only 1.8W max, saving on power costs.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Cudy GS108 Specifications

Interfaces

Interfaces

Jump to...
  • Gigabit RJ45 Ports

    8

  • LED

    Power
    Speed/Link/Act of Each Ethernet Port

  • Power Interfaces

    DC Jack

Performance

Jump to...
  • Copper Speed and Distance

    Cat. 3 or higher cable: 328.08' (100m) at 10 Mbps
    Cat. 5 or higher cable: 328.08' (100m) at 100 Mbps
    Cat. 5e or higher cable: 557.7' (170m) at Gigabit

  • MAC Address Table

    4096

  • Max Switching Capacity

    16 Gbps

  • Max Forwarding Rate

    11.904 Mpps

  • Jumbo Frame

    15 KB

  • Packet Buffer

    1.5 Mbit

  • Basic Power Saving

    True

  • Power Methods

    DC

  • Power Input

    5V=0.55A

  • Power Adapter

    Input: 100-240V, 50/60Hz
    Output: 5V=0.55A

  • Max Power Consumption

    1.8W

  • Idle Power Consumption

    0.3W

Switching

Jump to...
  • 802.3 Protocols

    802.3x Flow Control
    802.3i 10BASE-T
    802.3u 100BASE-TX
    802.3ab 1000BASE-T

  • L2 Features

    IGMP Snooping
    Loop Prevention

Reliability

Jump to...
  • EMS

    IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
    IEC/EN 61000-4-5, Level 3 Surge: 2kV

  • Environment

    Operating Temperature: 32 -104 Degree F (0 - 40 Degree C)
    Storage Temperature: -40 - 158 Degree F (-40 - 70 Degree C)
    Operating Humidity: 10% - 90% non-condensing
    Storage Humidity: 5% - 90% non-condensing

General

Jump to...
  • Color

    Black

  • Casing Material

    Metal

  • Installation

    Desktop
    Wall-mount

  • Country of Origin

    China

  • Dimensions

    5.43 x 3.07 x 0.98" (138 x 78 x 25mm)

  • Weight

    7.26 oz (205.9g)

  • UPC Code

    644925515067

About Cudy GS108

A Long-Distance Switch with Power Saving

Super-Fast Gigabit
Eight 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.

Extra Transmission Distance
170 meters of Gigabit transmission adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises.

Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.

A Plug and Play Network Hub
• Connect Office Computers to Wired Network
• Boost Home Devices with Stable Ethernet

Robust Metal. Compact Size
Compact enough to fit in most home network distribution boxes. Metal casing delivers simplicity and protection for your network hub.

Cudy GS108 Features

  • 8x 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
  • Max 170m transmission with Cat 5e or higher standard cables
  • 802.3x flow control prevents packet loss
  • Super power efficient max 1.8W idle 0.3W
  • IGMP for high-efficiency multi-cast transmitting
  • Loop detection blocks loop automatically, improving reliability
  • Desktop and wall-mounting

Key Features

  • Enjoy seamless data flow with 8 Gigabit Ethernet ports, perfect for your home network.
  • Experience reliable, high-speed connections for gaming and streaming with 16 Gbps switching capacity.
  • The durable metal casing ensures long-lasting performance and protects your network switch.
  • Set up your network effortlessly with this unmanaged switch; just plug and play!
  • Optimize your office connectivity with a powerful 8-port network switch for multiple devices.
  • Benefit from energy-efficient operation, consuming only 1.8W max, saving on power costs.

What's in the box:

  • Cudy GS108 8-Port Gigabit Ethernet Unmanaged Network Switch
  • Power Adapter
  • User Manual
  • Cudy 2 Year Limited Warranty
