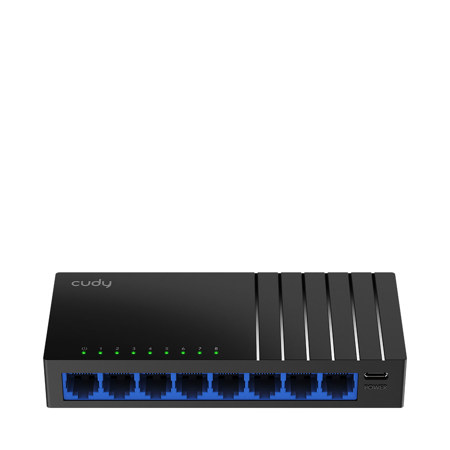

Cudy GS108D 8-Port Gigabit Ethernet Unmanaged Network Switch

SKU: CDGS108D MFR: GS108D
$19.99
Earn VIP Reward Points

Key Features

  • Instantly expand your network with 8 Gigabit Ethernet ports for high-speed wired connections.
  • Enjoy reliable, plug-and-play connectivity for your home or small office without complex setup.
  • Boost your online gaming and 4K streaming with a robust 16 Gbps switching capacity.
  • Experience seamless data flow for all your devices, ensuring a smooth networking experience.
  • The compact, unmanaged design makes this network switch perfect for desktop or wall-mount installation.
  • Benefit from efficient power usage, helping you save on energy costs while maintaining performance.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Cudy GS108D Specifications

Interfaces

Interfaces

Jump to...
  • Gigabit RJ45 Ports

    8

  • LED

    Power
    Speed/Link/Act of Each Ethernet Port

  • Power Interfaces

    USB-C Port

Performance

Jump to...
  • Copper Speed and Distance

    Cat. 3 or higher cable: 328.08' (100m) at 10 Mbps
    Cat. 5 or higher cable: 328.08' (100m) at 100 Mbps
    Cat. 5e or higher cable: 557.7' (170m) at Gigabit

  • MAC Address Table

    4096

  • Max Switching Capacity

    16 Gbps

  • Max Forwarding Rate

    11.904 Mpps

  • Jumbo Frame

    9 KB

  • Packet Buffer

    1 Mbit

  • Basic Power Saving

    True

  • Power Methods

    USB-C

  • Power Input

    5V=1A

  • Max Power Consumption

    4W

  • Idle Power Consumption

    1.18W

Switching

Jump to...
  • 802.3 Protocols

    802.3x Flow Control
    802.3i 10BASE-T
    802.3u 100BASE-TX
    802.3ab 1000BASE-T

Reliability

Jump to...
  • EMS

    IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
    IEC/EN 61000-4-5, Level 3 Surge: 2kV

  • Environment

    Operating Temperature: 32 -104 Degree F (0 - 40 Degree C)
    Storage Temperature: -40 - 158 Degree F (-40 - 70 Degree C)
    Operating Humidity: 10% - 90% non-condensing
    Storage Humidity: 5% - 90% non-condensing

General

Jump to...
  • Color

    Black

  • Casing Material

    Plastic

  • Installation

    Desktop
    Wall-mount

  • Country of Origin

    China

  • Dimensions

    5.43 x 2.42 x 0.94" (138 x 61.5 x 24mm)

  • Weight

    3 oz (85g)

  • UPC Code

    193138070103

About Cudy GS108D

A 8-GbE long-distance switch with USB-C power input and modern design, supporting full Gigabit speeds on all ports over distances up to 170 m.

Ultra-Fast Gigabit Connectivity
Equipped with eight auto-negotiation 10/100/1000 Mbps ports, providing up to 16 Gbps of switching capacity. This ensures all your connected devices-from PCs and NAS drives to Smart TVs and Consoles-operate at their maximum possible speed.

Revolutionary 170m Transmission Range
While standard switches are limited to 100 meters, the GS108D supports an extended transmission distance of up to 170 meters (using Cat 5e or higher). This 70% increase simplifies wiring for larger homes, warehouses, and office buildings.

Non-Blocking Architecture
With a 1 Mbit packet buffer and store-and-forward technology, the GS108D ensures smooth data flow even under heavy loads. It prevents packet loss and maintains high-speed wire forwarding for all ports simultaneously.

Cudy Green Energy Efficiency
Save on electricity costs without sacrificing performance. The GS108D features advanced power-saving technology that automatically detects port status and cable length to reduce power consumption by up to 85%.

Fanless Silent Design
The GS108D is built for quiet environments. Its fanless, heat-dissipating plastic casing ensures completely silent operation, making it perfect for bedrooms, home theaters, or quiet offices.

Cudy GS108D Features

  • Powering via USB-C
  • 8x Gigabit Ethernet Ports
  • Max 557.7' (170m) Gigabit Transmission
  • Desktop, Wall-Mount

Key Features

  • Instantly expand your network with 8 Gigabit Ethernet ports for high-speed wired connections.
  • Enjoy reliable, plug-and-play connectivity for your home or small office without complex setup.
  • Boost your online gaming and 4K streaming with a robust 16 Gbps switching capacity.
  • Experience seamless data flow for all your devices, ensuring a smooth networking experience.
  • The compact, unmanaged design makes this network switch perfect for desktop or wall-mount installation.
  • Benefit from efficient power usage, helping you save on energy costs while maintaining performance.

What's in the box:

  • Cudy GS108D 8-Port Gigabit Unmanaged Network Switch
  • USB-A to USB-C Power Cable
  • User Manual
  • Cudy 2 Year Limited Warranty
