New Arrival

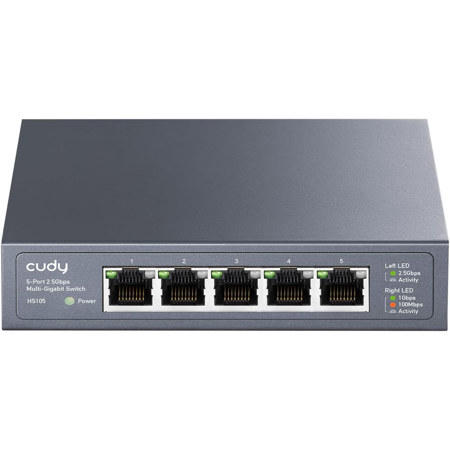

Cudy HS105 5-Port 2.5Gbps Multi-Gigabit Ethernet Unmanaged Network Switch

SKU: CDHS105CUD MFR: HS105_CUD
$49.99
Earn VIP Reward Points

Key Features

  • Experience lightning-fast speeds with 5-Port 2.5Gbps Multi-Gigabit Ethernet, perfect for gaming.
  • Boost your home network with this unmanaged network switch, offering plug-and-play simplicity.
  • Enjoy seamless streaming and large file transfers thanks to 25 Gbps switching capacity.
  • The durable metal casing and versatile desktop/wall-mount design ensure reliable performance.
  • Upgrade your connectivity for high-bandwidth devices like NAS and workstations effortlessly.
  • Benefit from efficient power usage with basic power saving features, reducing energy costs.
See More Product Details
New Item?Request assistance or get notified
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Cudy HS105 Specifications

Interfaces

Interfaces

Jump to...
  • 2.5G RJ45 Ports

    5

  • Shielded RJ45 Port

    True

  • LED

    Power
    Speed/Link/Act of Each Ethernet Port

  • Power Interfaces

    DC Jack

Performance

Jump to...
  • Copper Speed and Distance

    Cat. 5 or higher cable: 328.08' (100m) at 100 Mbps
    Cat. 5e or higher cable: 328.08' (100m) at 2.5 Gbps

  • MAC Address Table

    8192

  • Max Switching Capacity

    25 Gbps

  • Max Forwarding Rate

    18.6 Mpps

  • Jumbo Frame

    15 KB

  • Packet Buffer

    4 Mbit

  • Basic Power Saving

    True

  • Power Methods

    DC

  • Power Input

    12V=1A

  • Power Adapter

    Input: 100-240V-, 50/60Hz
    Output: 12V=1A

  • Max Power Consumption

    10.5W

  • Idle Power Consumption

    4.7W

Switching

Jump to...
  • 802.3 Protocols

    802.3x Flow Control
    802.3u 100BASE-TX
    802.3ab 1000BASE-T
    802.3bz 2.5GBASE-T and 5GBASE-T

  • L2 Features

    IGMP Snooping
    Loop Prevention
    Loop Detection

Reliability

Jump to...
  • Grounding Methods

    Grounding Point

  • EMS

    IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
    IEC/EN 61000-4-5, Level 3 Surge: 2kV

  • Environment

    Operating Temperature: 32 -104 Degree F (0 - 40 Degree C)
    Storage Temperature: -40 - 158 Degree F (-40 - 70 Degree C)
    Operating Humidity: 0% - 100% non-condensing
    Storage Humidity: 10% - 95% non-condensing

General

Jump to...
  • Color

    Black

  • Casing Material

    Metal

  • Installation

    Desktop
    Wall-mount

  • Country of Origin

    China

  • Dimensions

    4.69 x 3.35 x 1.1" (119 x 85 x 28mm)

  • Weight

    9.42 oz (267g)

  • UPC Code

    193138073197

Related Articles & Videos

Back to School: Best Smart Home Tech for Your Dorm or Apartment
A Complete Guide to Smart Plugs: Everything to Know

A Complete Guide to Smart Plugs: Everything to Know

A smart plug is a device that installs between your electrical outlet and just about any other device. Once installed, you can turn devices on and off via your smartphone, or with voice assistants like Alexa and Siri. You can also schedule on or off times with associa...
Read more

About Cudy HS105

A 5-Port 2.5G switch with metal casing ideal for 2.5Gbps wired network expansion for NAS or bandwidth-intensive demands.

Know Multicast. No Waste
Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.

Always Online. No Oops
Blocks the ports automatically when it detects a loop in the network, preventing downtime caused by mis operation.

Saves Power. Saves Bills
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Wall Mounting
Provides two mounting brackets, catering to wall-mounting placement scenarios.

Robust Metal. Compact Size
Metal casing delivers simplicity and protection for the network hub, compact enough to fit in most home network distribution boxes.

2.5X the Speed and Productivity than Gigabit
• Connect Office Computers to 2.5G Network
• Boost Productivity for Creative Users

Cudy HS105 Features

  • 5x 100/1000/2500 Mbps Ethernet Ports
  • Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
  • Store-and-Forward switching method
  • Packet Buffer prevents packet loss and improves performance
  • Support 802.3x flow control
  • IGMP for high-efficient multi-cast transmitting
  • Loop detection blocks loop automatically, improving reliability
  • Desktop and Wall Mounting

Key Features

  • Experience lightning-fast speeds with 5-Port 2.5Gbps Multi-Gigabit Ethernet, perfect for gaming.
  • Boost your home network with this unmanaged network switch, offering plug-and-play simplicity.
  • Enjoy seamless streaming and large file transfers thanks to 25 Gbps switching capacity.
  • The durable metal casing and versatile desktop/wall-mount design ensure reliable performance.
  • Upgrade your connectivity for high-bandwidth devices like NAS and workstations effortlessly.
  • Benefit from efficient power usage with basic power saving features, reducing energy costs.

What's in the box:

  • Cudy HS105 5-Port 2.5Gbps Multi-Gigabit Ethernet Unmanaged Network Switch
  • Power Adapter
  • Mounting Hardware
  • User Manual
  • Cudy 2 Year Limited Warranty
