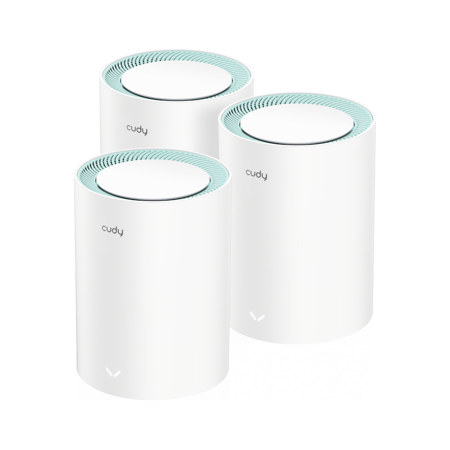

Cudy M1300 AC1200 Wireless Dual-Band Wi-Fi 5 Gigabit Mesh Router, 3-Pack

SKU: CDM1300 MFR: M1300 (3- PACK)
$89.99
Earn VIP Reward Points

Key Features

  • Experience a fast, reliable Wi-Fi 5 connection with speeds up to 1200 Mbps for all your devices.
  • Enjoy broad coverage throughout your home, eliminating dead zones with this powerful mesh router system.
  • Set up your network effortlessly with our easy setup process, getting online in minutes.
  • Keep your network secure with robust WPA3 encryption and advanced parental controls for peace of mind.
  • Stream 4K videos and game online without lag thanks to the efficient dual-band Wi-Fi performance.
  • Manage your home network with intuitive controls, ensuring strong security and customized access for everyone.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Cudy M1300 Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU

    880 MHz Dual-Core, MIPS1004Kc

Hardware: Memory/Storage

Jump to...
  • Flash/ROM

    16MB (128 Mbit) NOR

  • DDR/RAM

    128MB (1 Gbit) DDR3

Hardware: Wireless

Jump to...
  • 5GHz Wi-Fi Speed

    867 Mbps

  • 2.4GHz Wi-Fi Speed

    300 Mbps

  • 5GHz Wi-Fi Streams

    2T2R (2x2 MIMO)

  • 2.4GHz Wi-Fi Streams

    2T2R (2x2 MIMO)

  • Wi-Fi Antennas

    4x Internal

  • FEM or PA/LNA

    5GHz: 2x Internal
    2.4GHz: 2x Internal

  • Beamforming

    True

  • Range Performance

    Max: 558' (170m)

  • Wall Performance

    Two wooden walls with thickness < 4" (10cm)
    One concrete wall with thickness < 7" (20cm)

  • Indoor Coverage Reference

    2400 sq. ft (220 sq. m)

Hardware: Interfaces

Jump to...
  • Gigabit RJ45 Ports

    2x

  • LED

    System
    Speed/Link/ACT of Ethernet Port

  • Physical Buttons

    WPS Button
    Reset Button

  • Power Interfaces

    DC Jack

Hardware: Power

Jump to...
  • Power Methods

    DC

  • Power Input

    12V=1A

  • Power Adapter

    Input: 100-240V-, 50/60Hz
    Output: 12V=1A

Hardware: Reliability

Jump to...
  • Environment

    Operating Temperature: 32 -104 Degree F (0 - 40 Degree C)
    Storage Temperature: -40 - 158 Degree F (-40 - 70 Degree C)
    Humidity: 10% - 90% non-condensing
    Storage Humidity: 5% - 95% non-condensing

Hardware: Certifications

Jump to...
  • Certifications

    FCC, CE

Hardware: General

Jump to...
  • Color

    White

  • Installation

    Desktop

  • Country of Origin

    China

  • Dimensions (Dia x L)

    4.33 x 6.08" (110 x 154.5mm)

  • Weight

    10.27 oz (291.2g)

Software: Wireless

Jump to...
  • Wi-Fi Standards

    Wi-Fi 5

  • Max Wi-Fi Modulation

    256-QAM

  • Wi-Fi Efficiency

    MU-MIMO

  • Wi-Fi Efficiency Note

    MU-MIMO available on 5GHz

  • Max Capacity

    128

  • Recommended Client Upper Limit

    50

  • Max Wi-Fi Channel Width

    80 MHz

  • Wi-Fi Security

    WPA/WPA2/WPA3

  • Guest Network

    2.4GHz, 5GHz

  • WPS

    True

Software: General

Jump to...
  • Operation Modes

    Wi-Fi Router
    Access Point
    Range Extender
    WISP
    Client

  • Mesh

    Cudy Mesh

  • Mesh Backhaul

    Wireless Backhaul
    Wired Backhaul

  • Multi-Band Backhaul

    True

  • WAN Mode

    DHCP
    Static IP
    PPPOE
    PPTP
    L2TP

Software: Network

Jump to...
  • QoS

    Per-User Rate Limiting

  • DHCP

    Address Reservation
    DHCP Client List
    Server

  • IP Versions

    IPv4/IPv6

  • IPv6 Protocols

    Relay
    Dynamic (SLAAC/DHCPv6)
    Static (Fixed IP)
    Passthrough
    464XLAT
    MAP-E
    DS-Lite

  • IPTV/VLAN

    Bridge
    Tag VLAN
    VoIP VLAN
    IPTV VLAN

  • TTL Customization

    Extend
    Spoof
    Custom

  • IGMP

    IGMP Proxy
    IGMP Snooping

  • Forwarding

    Port Forwarding
    Port Triggering
    UPnP
    DMZ

  • Firewall

    SPI Firewall
    DoS Protection
    Block PING

  • Application Layer Gateway

    IPSec Passthrough
    L2TP Passthrough
    PPTP Passthrough
    FTP Passthrough
    TFTP Passthrough
    H323 Passthrough
    SIP Passthrough
    RTSP Passthrough

Software: Utilities

Jump to...
  • VPN Server

    WireGuard
    OpenVPN
    IPsec
    Zerotier
    PPTP
    L2TP

  • VPN Client

    WireGuard
    OpenVPN
    IPsec
    Zerotier
    PPTP
    L2TP

  • VPN Performance

    OpenVPN Client (UL/DL): 22 / 24.7 Mbps
    OpenVPN Server (UL/DL): 22 / 20.9 Mbps
    WireGuard Client (UL/DL): 142 / 233.9 Mbps
    WireGuard Server (UL/DL): 213 / 152 Mbps

  • DNS Options

    DNS over TLS
    Manual DNS
    Rebind Protection
    Override Clients' DNS

  • DNS over TLS Providers

    Cloudflare
    Google
    Quad9
    Custom

  • Wake on LAN

    True

  • Online Detection

    True

  • Max Concurrent VPN Tunnels

    IPSec: 20
    PPTP/L2TP: 16
    OpenVPN: 16

Software: Management

Jump to...
  • Parental Controls

    Profiles Settings
    Offline Time
    Online Time
    Pause the Internet
    Web Filter

  • All Devices Management

    Wi-Fi Time Schedule
    MAC Filter
    IP/MAC Binding

  • Per-Devices Management

    Internet On/Off
    VPN On/Off
    Online Time Schedule
    Device Rename

  • Content Management

    Domain Filter
    IP Filter

Software: System

Jump to...
  • LED Control

    True

  • Local Control Method

    Config Web Page
    App Control

  • Remote Control Method

    Config Page via HTTPS
    App Control
    TR069/TR098/TR111/TR143/TR181

  • Firmware Upgrade

    Local Update
    App (Over the Air)
    Online Update

  • Reliability

    Timed Reboot
    Backup and Restore

  • Diagnostic Tools

    Diagnosis
    Ping
    Traceroute
    NSLookup
    System Log

  • Languages

    English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese

Software: Dashboard

Jump to...
  • Panel

    Internet Status
    Mesh Status
    Devices Management
    WAN Status
    LAN Status
    WISP Status
    Wi-Fi Status
    VPN Status
    DHCP Server Status
    System Version

  • Charts

    Mesh Topology
    Internet Speed
    WISP Speed
    Wi-Fi Speed

  • UPC Code

    193138072817

About Cudy M1300

A mesh Wi-Fi system ideal for large homes with 4K streaming and gaming demands, Installation is easy-set up one unit and auto-sync the rest.

Fast and Reliable AC1200 Mesh Wi-Fi
Enjoy speeds up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, ideal for streaming, gaming, and browsing. Dual-band connectivity ensures a stable and reliable connection for all your devices.

Seamless Wi-Fi Coverage, Room to Room
Compared to traditional routers, the M1300 Mesh Wi-Fi System delivers stronger, more consistent signal with smooth, wall-to-wall coverage across your entire home.

Cudy Mesh Wi-Fi System
• Traditional Router
• Connect 50 Devices

Always Connected to the Best Signal
Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds - ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.

Wired Power Meets Whole-Home Performance
Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 1000 Mbps per port, M1300 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.

Parental Controls
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.

Cudy App
Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.

Cudy M1300 Features

  • 4-Stream Dual-Band Wi-Fi 5
  • 867 Mbps + 300 Mbps Wi-Fi
  • 2x Gigabit Ethernet Ports
  • Fast Roaming
  • MU-MIMO, Beamforming
  • Cudy Mesh, VPN Server and Client
  • Multi-Band Simultaneous Backhaul
  • Cudy App, Cloud Control

Key Features

  • Experience a fast, reliable Wi-Fi 5 connection with speeds up to 1200 Mbps for all your devices.
  • Enjoy broad coverage throughout your home, eliminating dead zones with this powerful mesh router system.
  • Set up your network effortlessly with our easy setup process, getting online in minutes.
  • Keep your network secure with robust WPA3 encryption and advanced parental controls for peace of mind.
  • Stream 4K videos and game online without lag thanks to the efficient dual-band Wi-Fi performance.
  • Manage your home network with intuitive controls, ensuring strong security and customized access for everyone.

What's in the box:

  • 3x Cudy M1300 AC1200 Wireless Dual-Band Wi-Fi 5 Mesh Router
  • Power Adapter
  • Ethernet Cable
  • User Manual
  • Cudy 2 Year Limited Warranty
