Review Summary
1GHz CPU
16MB (128 Mbit) NOR
128MB (1 Gbit) DDR2
1201 Mbps
300 Mbps
2T2R (2x2 MIMO)
2T2R (2x2 MIMO)
4x Fixed
5GHz: 2x Internal
2.4GHz: 2x Internal
True
Max: 558' (170m)
Two wooden walls with thickness < 4" (10cm)
One concrete wall with thickness < 7" (20cm)
4x
System
WPS Button
Reset Button
DC Jack
DC
12V=1A
Input: 100-240V-, 50/60Hz
Output: 12V=1A
10W
Operating Temperature: 32 -104 Degree F (0 - 40 Degree C)
Storage Temperature: -40 - 158 Degree F (-40 - 70 Degree C)
Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 95% non-condensing
FCC, CE
Black
Desktop
Wall-mount
China
7.22 x 4.29 x 1.38" (183.3 x 109 x 35mm)
7.76 oz (220g)
Wi-Fi 6
1024-QAM
Beamforming
128
60
80 MHz
WPA/WPA2/WPA3
True
Wi-Fi Router
Access Point
Range Extender
WISP
Client
Cudy Mesh
Wireless Backhaul
Wired Backhaul
True
DHCP
Static IP
PPPOE
PPTP
L2TP
Per-User Rate Limiting
Address Reservation
DHCP Client List
Server
IPv4/IPv6
Relay
Dynamic (SLAAC/DHCPv6)
Static (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite
Bridge
Tag VLAN
VoIP VLAN
IPTV VLAN
IGMP Proxy
IGMP Snooping
Port Forwarding
UPnP
DMZ
SPI Firewall
Block PING
PPTP
L2TP
Wireguard
Manual DNS
Rebind Protection
Override Clients' DNS
True
True
Profiles Settings
Offline Time
Online Time
Pause the Internet
Web Filter
Wi-Fi Time Schedule
MAC Filter
IP/MAC Binding
Internet On/Off
VPN On/Off
Online Time Schedule
Device Rename
Domain Filter
IP Filter
Config Web Page
App Control
Config Page via HTTPS
App Control
TR069/TR098/TR111/TR143/TR181
Local Update
App (Over the Air)
Online Update
Timed Reboot
Backup and Restore
Diagnosis
Ping
Traceroute
NSLookup
System Log
English, Portuguese, Russian, Spanish, Ukrainian, French, Simplified Chinese
Internet Status
Mesh Status
Devices Management
WAN Status
LAN Status
WISP Status
Wi-Fi Status
VPN Status
DHCP Server Status
System Version
Mesh Topology
Internet Speed
WISP Speed
Wi-Fi Speed
193138073159

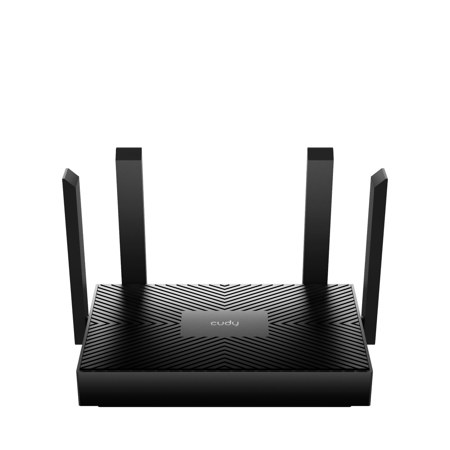

A Gigabit Wi-Fi 6 router with 4 Gigabit ports, suitable for home internet up to 1000 Mbps, connecting many devices, and reducing latency.
Connect 128 Devices: High-Capacity Wi-Fi for Smart Home
Keep buffering at bay with Wi-Fi 6 standards. The advanced 1024-QAM modulation and a higher symbol rate boost the 5 GHz speed by 38%, offering super-fast download rivalling a Gigabit Ethernet wired network.
Boosted Coverage, Lower Latency
Beamforming detects the direction of connected devices and forms a focused signal towards them to improve coverage.
Versatile Functionalities
VPN Client
Enables work from home and secure remote access with the support of popular VPN protocols.
Parent Control
Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones.
Cudy Mesh
Supports Cudy Mesh to enable seamless roaming for the whole home with other Cudy Mesh devices.
IPTV
Configure a specific network port for IPTV transmission to deliver television services from the network operator to your TV.
The Latest WPA3 Security
Encrypt Your Wi-Fi to the Highest Level
The legacy WPA and WPA2 are weak under the risk of brute-force attacks. WPA3, as the latest encryption protocol, encrypts your wireless communication to the best level, protecting your data from leaking.
Cudy App
Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.
