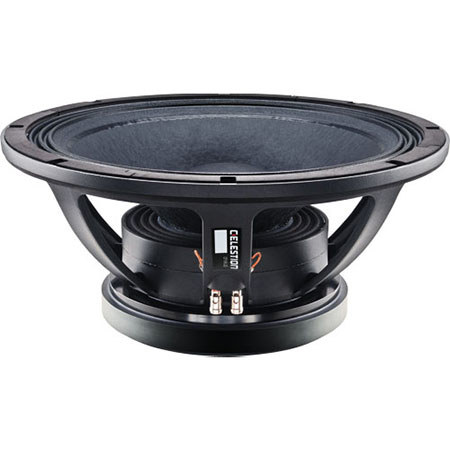

Celestion 18" Ferrite Magnet LF Driver with Cast Aluminum Chassis, 8 Ohms Nominal Impedance, 97dB Sensitivity, 25-1500Hz Frequency Range, 1600W Power, Single

SKU: CECF18VJD MFR: CF18VJD
Earn VIP Reward Points

Key Features

  • Experience powerful bass with this 18" Celestion ferrite magnet LF driver.
  • Achieve accurate sound reproduction with a frequency range of 25-1500Hz.
  • Enjoy robust performance with a cast aluminum chassis for lasting durability.
  • This 8 Ohms impedance speaker ensures compatibility with pro audio setups.
  • Get loud, clear audio with 97dB sensitivity for impactful sound quality.
  • Handle high power with a 1600W rating, perfect for studio subwoofer builds.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Celestion 18" Ferrite Magnet LF Driver with Cast Aluminum Chassis, Single Specifications

  • Power rating

    1600Wrms

  • Nominal impedance

    8 Ohms

  • Sensitivity

    97dB

  • Frequency range

    25Hz-1500Hz

  • Chassis type

    Cast aluminum

  • Magnet type

    Ferrite

  • Material

    Coil: Round copper
    Former: Glass fiber
    Cone: Carbon and Kevlar loaded paper
    Surround: Cloth-sealed

  • Diameter

    Nominal: 457.2mm / 18"
    Voice coil: 125mm / 4.92"
    Mount:462mm / 18.19"
    Cut-out: 416mm / 16.38"

  • Suspension

    Double

  • Xmax

    9mm / 0.35"

  • Small Signal Parameters

    D: 379.98mm/14.96in
    Fs: 34.3Hz
    Mms: 9.16oz / 259.68g
    Mmd: 8.39oz / 237.85g
    Qms: 5.152
    Qes: 0.360
    Qts: 0.336
    Re: 5.98 Ohms
    Vas: 150.58lt/5.32 cubic feet
    BI: 30.52Tm
    Cms: 0.083mm/N
    Rms: 10.88kg/s
    Le (at 1kHz): 1.48mH

  • Number of mounting slots

    8

  • Mounting PCD range

    17.01 x 17.36" / 432 x 441mm

  • Dimensions

    Mounting slot: 0.43 x 0.28" / 11 x 7mm
    Overall Depth: 233mm / 9.17"
    Gap depth: 12mm / 0.47"
    Voice coil winding width: 30mm / 1.18"

  • Weight

    50.71lbs / 23kg

  • UPC Code

    739894580656

About Celestion 18" Ferrite Magnet LF Driver with Cast Aluminum Chassis, Single

For audio enthusiasts and professionals seeking robust and precise low-frequency sound reproduction, the Celestion 18" Ferrite Magnet LF Driver is an impeccable choice. Engineered with a cast aluminum chassis, this high-performance driver boasts a substantial 1600W RMS power handling capacity, as per the AES Standard, ensuring it can withstand the rigors of demanding audio applications.

With a nominal impedance of 8 ohms and an impressive 97dB sensitivity, this driver is designed to deliver clear and powerful bass with minimal power input. The broad frequency range of 25-1500Hz allows for versatile integration into a variety of speaker systems, catering to a wide spectrum of audio requirements.

At the heart of this driver lies a 5" high-temperature, dual-layer, Inside/Outside voice coil. This advanced design enhances efficiency and combats sensitivity loss due to thermal compression, maintaining consistent performance even during extended periods of high output.

The FEA-optimized magnet assembly is a testament to precision engineering, promoting highly symmetrical cone movement. This meticulous design results in exceptionally low harmonic distortion, ensuring that the audio output is pure and uncolored.

Additional features include a vented front plate that augments airflow, thereby enhancing cooling and sustaining performance levels. The twin demodulation rings play a crucial role in reducing flux modulation, which in turn minimizes electromagnetic distortion, preserving the integrity of the audio signal.

To further ensure audio fidelity, the driver incorporates a double suspension and a "multi-roll" surround. These components work in tandem to provide exceptional linearity at the extremes of cone excursion, preventing unwanted distortions and maintaining sound quality even at high volumes.

The Celestion 18" Ferrite Magnet LF Driver with Cast Aluminum Chassis is a testament to superior design and craftsmanship, making it an ideal component for high-end audio systems, professional sound reinforcement, and premium home theater setups.

Celestion 18" Ferrite Magnet LF Driver with Cast Aluminum Chassis, Single Features

  • 18" Ferrite Magnet LF Driver with robust cast aluminum chassis for superior durability
  • Powerful 1600W RMS power handling and 97dB sensitivity for clear, high-volume audio
  • Wide frequency range of 25-1500Hz for versatile audio application compatibility
  • High-temperature, dual-layer, Inside/Outside voice coil for enhanced efficiency and consistent performance
  • FEA-optimized magnet assembly for low harmonic distortion and pure audio output
  • Advanced cooling features and electromagnetic distortion minimization for sustained high-quality sound output

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Experience powerful bass with this 18" Celestion ferrite magnet LF driver.
  • Achieve accurate sound reproduction with a frequency range of 25-1500Hz.
  • Enjoy robust performance with a cast aluminum chassis for lasting durability.
  • This 8 Ohms impedance speaker ensures compatibility with pro audio setups.
  • Get loud, clear audio with 97dB sensitivity for impactful sound quality.
  • Handle high power with a 1600W rating, perfect for studio subwoofer builds.
