LCD Digital Desktop
180 Degree rotatable head with 7" (17.78cm) TFT LCD Screen
Quad with click stop
5x Achromatic objectives on quad (5) turret
DIN 35 RMS
4x, 10x, 20x, 40x, (60x also included-not connected)
WJ 4/5" x 1/36"
Course Focus and Fine Focus
0.007 to 1.39" (0.2 to 35.3mm) (est.)
120x, 300x, 600x, 1200x, 1800x
LEDs
Lower - under stage
Adjustable wheels at base
Universal 100 to 240V, 50/60 Hz multi-country plug | (4) AA
Fully mechanical with metal clips, 3.5 x 3.5" (88 x 88mm) - With Filter wheel (Red, blue, green | 1mm, 3mm, 6mm apertures)
Aplantic
N.A. 65
Multiple on wheel
CMOS Sensor in lieu of eyepiece
30x
8MP - 1/2.8"
1.45 microm
7" (17.78cm) LCD TLT - High definition touch, 1024 x 600 pixels resolution, 6.07 x 3.38" (154.21 x 85.92mm) with 4x digital zoom, rotates 180 Degree
16GB MicroSD Card
Micro SD card slot supports up to 128G (16G card included)
AC Plug (power), MicroSD Card slot (supports up to 128G)
HDMI, USB-C
5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long
Non-interpolated:
3840x2176
1920x1088
1280x736
Interpolated:
5736x3008
6114x3456
8448x 4736
3840x2160
1920x1080
1280x720
On LCD Screen
Internal Firmware
English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Simplified Chinese, Traditional Chinese
Optional, not included
Alkaline
AA
4
Microscope: 7 x 7 x 13.50" (177.8 x 177.8 x 342.9mm)
Microscope: 4.6 lbs (2.08kg)
050234443531

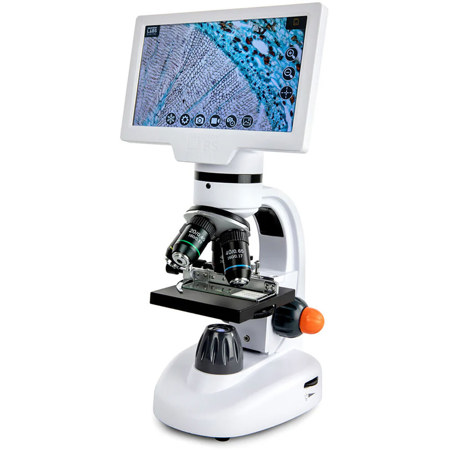

The Celestron Labs Digital 7" LCD Microscope makes microscopic exploration more comfortable, interactive, and easy to share. Its large, rotating touchscreen eliminates the need to hunch over a traditional eyepiece while allowing multiple people to observe specimens together. Ideal for students, hobbyists, classrooms, and labs, it combines powerful magnification with modern digital convenience in an easy-to-use design.
Powerful, Flexible Magnification
This compound microscope features a rotating turret with 4x, 10x, 20x, and 40x objective lenses, plus a detachable 60x lens for examining finer details. Instead of a traditional eyepiece, a built-in 8MP CMOS digital camera delivers live images directly to the 7-inch screen, creating a versatile magnification range from 120x to 1800x. Easily move from viewing larger specimen structures to close-up detail with smooth transitions between magnification levels.
8MP CMOS Built-In Digital Camera & Connectivity
Capture high-resolution photos and video of your observations using the integrated 8MP CMOS digital camera. Save files directly to the included 16GB microSD card or expand capacity up to 128GB with a microSD card (sold separately). HDMI output allows you to connect the microscope to a monitor or projector for real-time viewing, making it an excellent choice for classrooms, demonstrations, and collaborative projects.
Large Rotating 7" Touchscreen
The bright 7-inch HD LCD touchscreen provides a comfortable viewing experience while reducing eye strain during extended sessions. The screen rotates 180 Degree around the microscope head, making it easy to adjust viewing angles for individual use or group observation. Included touch controls and stylus make navigation, image capture, and settings adjustments fast and intuitive.
Precision Compound Microscope Design
Designed for viewing thin specimens with transmitted light, the microscope features bottom-LED illumination for bright, even illumination beneath the stage. A built-in filter wheel allows you to adjust contrast and clarity to better highlight specimen details. The fully mechanical stage provides precise specimen positioning and includes integrated measuring tools for estimating specimen size and scale during observation. Coarse and fine focus knobs allow rapid focusing and precise fine-tuning at any magnification.
Flexible for Lab or Field Use
Designed for flexibility, the microscope can operate using the included AC adapter for extended indoor sessions or optional AA batteries for portable use in locations without easy access to power. Whether used in a classroom, laboratory, or outdoor environment, the microscope adapts easily to different learning and working conditions.
Ready to Explore
Everything you'll need to begin observing is included right in the box. Ten prepared slides let you start exploring immediately, and the included protective dust cover keeps the microscope clean and protected between uses.
