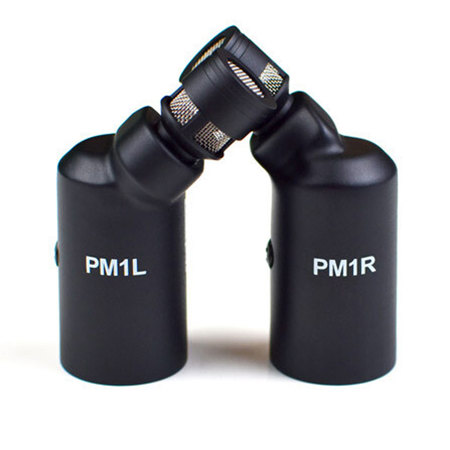

Centrance PivotMic PM1 XY Stereo Condenser Microphone, Matched Pair

SKU: CEPVOTMICPM1

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main use of the PivotMic PM1 XY Stereo Condenser Microphone?

The PivotMic PM1 is primarily used for recording audio in various applications such as music production, podcasting, video production, and live streaming. It's also ideal for on-the-road recordings.

What makes the PivotMic PM1 a professional-grade microphone?

The PivotMic PM1 utilizes Japanese precision technology in capsule manufacturing, which results in a tightly controlled frequency response and minimal self-noise. This allows the microphones to reproduce a wide dynamic range with perfect fidelity.

What does it mean that the PivotMic PM1 is a 'matched pair'?

A 'matched pair' means that the two microphones are designed to work together to create a stereo recording. This is ideal for capturing a wide soundstage or for creating a more immersive listening experience.

What is the benefit of the cardioid polar pattern in the PivotMic PM1?

A cardioid polar pattern in a microphone is designed to pick up sound from in front of the microphone and minimize sound from the sides and rear. This makes it ideal for recording in environments where you want to focus on a particular sound source.

Can the PivotMic PM1 be connected to different audio recording equipment?

Yes, the PivotMic PM1 features an XLR connector, making it compatible with a variety of audio recording equipment, including digital audio workstations (DAWs) and mixers.

G S : If you loosen the screw in the side of the housing, can you rotate the XLR connector 90 degrees to make these compatible with the vast majority of other recorders (which currently they are not)?
Shopper : Why Did You Choose This?GAVIN S : It's the only product of its type I found.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Centrance PivotMic PM1 Specifications

Microphone

Microphone

Jump to...
  • Form Factor

    Mobile Device Mic

  • Sound Field

    Stereo

  • Stereo/Surround Configuration

    X/Y

  • Capsule

    2x Electret Condenser

  • Polar Pattern

    Cardioid

  • Orientation

    End Address

  • High-Pass Filter

    Yes

  • Gain Adjustment

    Yes

Performance

Jump to...
  • Frequency Range

    Cardioid Condenser: 20 Hz to 20 kHz

  • Maximum SPL

    Cardioid: 140 dB SPL Peak

  • Impedance

    150 Ohms

  • Sensitivity

    45 dB at 1 kHz

  • Signal-to-Noise Ratio

    74 dB A-Weighted

Connectivity

Jump to...
  • Output Connectors

    1x XLR 3-Pin Male (Locking)

  • Operating Voltage

    48 V

  • Operating Current Consumption

    2 mA

Physical

Jump to...
  • Color

    Black

  • Mounting

    Direct Connection to Mobile Device, Hanging

  • Construction Material

    Metal

  • Dimensions (H x W x L)

    1.99 x 1.26 x 0.87" (50.55 x 32 x 22.1mm)

  • Weight

    1.4 oz (40g) (Each)

  • UPC Code

    899862001375

About Centrance PivotMic PM1

Overcome any audio recording challenge with the PivotMic PM1 XY Stereo Condenser Microphone, a matched pair designed to deliver professional, high-quality sound. This innovative product from Centrance, a trusted brand in the audio industry, transforms your MixerFace R4 into a professional-grade field recorder, making it an essential tool for a variety of applications, including music production, podcasting, and video production.

Constructed with a durable metal chassis, the PivotMic PM1 is designed to withstand the rigors of on-the-go recording. Its robust build complements the MixerFace R4, renowned for its tough, road-ready design. This versatile microphone pair is perfectly matched to the acclaimed Jasmine preamp, ensuring seamless integration and superior sound quality.

The PivotMic PM1 utilizes Japanese precision technology in capsule manufacturing, resulting in a tightly controlled frequency response and the lowest self-noise. This innovative technology allows the microphones to reproduce the entire dynamic range of a symphony hall with perfect fidelity. From the quietest whispers to the loudest notes, the PivotMic PM1 delivers crisp, clear sound, solid bass, and extended highs.

Ideal for remote broadcasts, live streams, podcasts, and interviews, the PivotMic PM1 matched XY stereo pair is especially handy for on-the-road recordings. Whether you're a podcaster, journalist, voiceover artist, songwriter, or touring musician, the PivotMic PM1 offers a mobile recording solution that guarantees professional results. It's also perfect for live streaming on platforms like YouTube, Facebook, or Instagram, ensuring your audience enjoys superior audio quality.

With its cardioid polar pattern, the PivotMic PM1 effectively captures sound sources in front of the microphone while minimizing sound from the sides and rear. The XLR connector allows for easy connection to a variety of audio recording equipment, such as a digital audio workstation (DAW) or a mixer. As a matched pair, these microphones are designed to work together to create a stereo recording, offering a comprehensive solution for all your audio recording needs.

What's in the box:

  • 2x PivotMic PM1 XY Stereo Condenser Microphone (Matched Pair)
  • Felt Storage Pouch
  • Centrance 1 Year Limited Warranty
