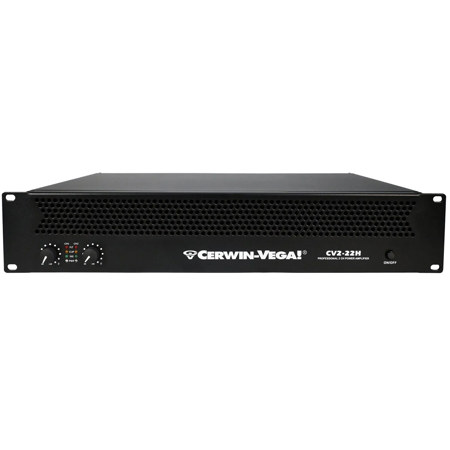

Cerwin Vega CV2-22H Professional 2260W 2-Channel Audio Power Amplifier

SKU: CV222H MFR: CV2-22H
Earn VIP Reward Points

Key Features

  • Experience powerful, clear audio with 2260W of professional sound for any event.
  • Enjoy reliable performance and robust protection for your audio equipment investments.
  • Achieve crystal-clear sound reproduction with a wide 20Hz-20kHz frequency response.
  • Effortlessly integrate this 2U rack-mountable amplifier into your existing setup.
  • Benefit from efficient cooling and thermal protection for extended operation.
  • Deliver dynamic sound to your audience with 2x 1070W at 4 Ohm stereo power.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Cerwin Vega CV2-22H Specifications

General

General

Jump to...
  • Color

    Black

  • Chassis

    Standard E.I.A International Standard, 2U Rack Mountable

  • Protection

    Short circuit, no-load, on/off muting, RF interference

  • Cooling

    Flow-through ventilation with forced air and thermal protection

  • Power Cord

    Plug: 10A, 120VAC / Wire: 3x 1 sq. mm

Audio Performance

Jump to...
  • Frequency Response

    20Hz - 20kHz, +0/-1dB (at 1 Watt)

  • Signal-to-Noise Ratio

    >100dB (A-weighted)

  • Total Harmonic Distortion (THD)

    <0.5%, 20Hz - 20kHz

  • Intermodulation Distortion (IMD)

    <0.35% (60Hz & 7kHz at 4:1 from full output to -30dB)

  • Damping Factor

    >200 (at 8 Ohm, 10Hz - 400Hz)

  • Crosstalk

    -75dB at 1kHz, -58dB at 20kHz

  • Slew Rate

    >20V/micros

  • Voltage Gain

    35dB

Power Output

Jump to...
  • 8 Ohm Stereo Power (per Ch.)

    2x 670W

  • 4 Ohm Stereo Power (per Ch.)

    2x 1070W

  • Bridge Mono Power

    2260W

Input / Output

Jump to...
  • Input Sensitivity

    0.775V or 1.4V

  • Input Impedance

    20k Ohm (Balanced), 10k Ohm (Unbalanced)

Physical

Jump to...
  • Dimensions

    18.98 x 8.94 x 3.46" (482 x 227 x 88mm)

  • Weight

    20.94 lbs (9.5kg)

  • UPC Code

    847169068614

About Cerwin Vega CV2-22H

Take control of the stage with the Cerwin-Vega CV2 Series professional power amplifier. It is designed for DJs, live bands, venues, and event sound systems. The CV2 delivers strong, clean power with plenty of headroom. Your sound stays clear and distortion-free, even when the volume is high.

This amplifier is built for professional audio performance. It produces detailed sound with very low distortion. From deep bass to clear highs, your music remains balanced and powerful during every show. The CV2 Series is also built for reliability. Its rugged 2U rack-mount chassis fits standard audio racks used in professional systems.

Advanced flow-through cooling helps keep the amplifier running at safe temperatures. Built-in protection circuits help protect your speakers and system during demanding performances. The 2-channel design is ideal for powering main speakers or subwoofers. The Cerwin-Vega CV2 Series amplifier delivers dependable power and clear sound for live audio setups.

Cerwin Vega CV2-22H Features

  • Advanced Thermal Management: An efficient heat sink combined with a variable-speed cooling fan maintains optimal operating temperatures under all load conditions
  • Comprehensive Protection Circuitry: Equipped with a full suite of protective circuits, including signal limiting, soft-start/shut-down (anti-thump), DC fault protection, output short circuit protection, and thermal overload guarding
  • Integrated Signal Limiter: A built-in limiter automatically prevents clipping and protects connected loudspeakers from damaging audio spikes
  • High-Fidelity Audio Performance: Delivers superior signal fidelity, ensuring transparent and natural sound reproduction
  • Per-Channel Status Indicators: Each channel features dedicated Signal Present and Clip/Overload LED indicators for at-a-glance monitoring
  • SMD Construction: Utilizes state-of-the-art Surface Mount Device (SMD) technology for enhanced stability, reliability, and performance consistency

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience powerful, clear audio with 2260W of professional sound for any event.
  • Enjoy reliable performance and robust protection for your audio equipment investments.
  • Achieve crystal-clear sound reproduction with a wide 20Hz-20kHz frequency response.
  • Effortlessly integrate this 2U rack-mountable amplifier into your existing setup.
  • Benefit from efficient cooling and thermal protection for extended operation.
  • Deliver dynamic sound to your audience with 2x 1070W at 4 Ohm stereo power.

What's in the box:

  • Cerwin Vega CV2-22H Professional 2260W 2-Channel Audio Power Amplifier
  • Power Cord
  • Cerwin Vega 1 Year Limited Warranty
