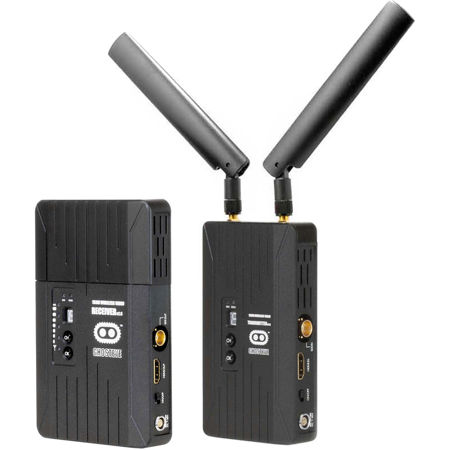

Cinegears Ghost-Eye Wireless HDMI & SDI Video Transmission Pro Kit, Includes 2x 150M V2.03 Video Receiver

SKU: CG61101

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Cinegears Ghost-Eye Specifications

Transmitter

Transmitter

Jump to...
  • Interface

    SDI Input(BNC Female); HDMI Input(Type A female); 2 Antenna port(PR-SMA male); DC input

  • Supply Voltage Range

    6.5-16.8V DC

  • Transmission Range

    Up to 300m (984.24')

  • Power Consumption

    <5.5W

  • Input Video Format

    SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425;

  • Video Processing Color Depth

    8bit;10 bit;(4:0:0);(4:2:2);(4:4:4)

  • Input Audio Format

    SDI embedded 2 channel 24 bit/48Khz

  • Signal Indicator

    POWER-Green; VIDEO-Yellow

  • Frequency Band

    5.1-5.9GHz,configurable with China, North American, Europe, etc.

  • Modulation Mode

    OFDM 16QAM

  • Transmission Power

    <18dBm

  • Occupied Bandwidth

    40MHz

  • Temperature Range

    0 to 40 deg. C (32 to 104 deg. F)(operating condition); -20 to 60 deg. C (-4 to 140 deg. F)(Storage)

  • Transmission Cross Capability

    Ghost-Eye 100M;150M;300M;400M

  • Compliance

    FCC; CE; RoHS

Receiver

Jump to...
  • Interface

    SDI Output(BNC Female); HDMI Output(Type A female); DC input

  • Supply Voltage Range

    6.5-16.8V DC

  • Transmission Range

    Up to 300m (984.24')

  • Power Consumption

    <6.5W

  • Input Video Format

    SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425;

  • Output Video Format

    SDI:3G,HD SD-SDI(Auto/Manuel-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425;

  • Video Processing Color Depth

    8bit;10 bit;(4:0:0);(4:2:2);(4:4:4)

  • Output Audio

    SDI embedded 2 channel 24 bit/48Khz

  • Signal Indicator

    POWER-Green; Wireless RSSI-Blue(4 LEDs); POWER/VIDEO-Yellow

  • Frequency Band

    5.1-5.9GHz,configurable with China, North American, Europe, etc.

  • Modulation Mode

    OFDM 16QAM

  • Receiver Sensitivity

    -75dBm

  • Occupied Bandwidth

    40MHz

  • Temperature Range

    0 to 40 deg. C (32 to 104 deg. F)(operating condition); -20 to 60 deg. C (-4 to 140 deg. F)(Storage)

  • Transmission Cross Capability

    Ghost-Eye 100M;150M;300M;400M

  • Compliance

    FCC; CE; RoHS

General

Jump to...
  • Dimensions (LxWxH)

    Transmitter: 115 x 67 x 23mm (4.53 x 2.64 x 0.91") (without antennas)
    Receiver: 152 x 95 x 23mm (5.98 x 3.74 x 0.91")

About Cinegears Ghost-Eye

Our new Professional Kits are designed for the professionals that use our products. Including upgrades that you need to complete your job. Dedicated power sources that mean you never run out of power when the pressure is on. Upgraded set of cloverleaf antennas which are 5G optimized and all protected by rugged Pelican Protector cases.

Cinegears Ghost-Eye wireless video transmission systems are already on thousands of film sets around the globe. With all the cutting edge features packed into the compact transmitters and receivers, the choice is clear: keep watch over your shot with Ghost-Eye. The Ghost-Eye M-series provides the best solution for video and audio transmission for film and television making professionals on set and in post-production.

No compromise for quality; your video and audio signals get sent at industry-leading speeds from A to B (or from A to B, C, D and E with built-in point-to-multipoint topology) with zero compression. Your signal will arrive in all its 10-bit, 4:2:2, 1080p, 60fps glory; don't miss a single frame! Broadcast from virtually any SDI or HDMI output you can find and have your signal received by an unlimited number of Ghost-Eye receivers of any model! With a 3-year warranty and firmware upgrade guarantee, your Ghost-Eye units will always function at peak performance. We are here to help; we can troubleshoot over the phone or by email and with the product designer in-house we always have the answer!

-- Ghost-Eye 150M Wireless Video Transmission kit --
Avoid the clutter and headache of cables with the Cinegears Ghost-Eye 150M Wireless Video Transmission System; one Ghost-Eye Wireless Video Transmitter 150M and one Ghost-Eye Wireless Video Receiver 150M. Up to 300 meters/984 ft of high fidelity, uncompressed HD video transmission, feel free as you shoot indoors or out, night or day. With both 3G and HDMI inputs and outputs and 10 workable transmission frequencies (using an unlimited number of receivers simultaneously), you will utilize the current cutting edge of video transmission, adding a professional quality to your project.

The Cinegears Wireless HD/SDI HD Video Transmission system is an affordable and effective solution, requiring no technical skills and virtually no learning curve to operate. We focus on creating technologies that include the most effective, reliable and affordable solutions. With our simple and elegant design, Cinegears makes sure you're always in focus.

-- 150M Wireless HD Video Transmitter --
With the Cinegears Ghost-Eye Wireless HDMI & SDI Transmitter 150M, transmit high fidelity, uncompressed HD video transmission from up to 150m and feel free as you shoot indoors or out, night or day. With both 3G and HDMI inputs and outputs and 10 workable transmission frequencies (using an unlimited number of receivers simultaneously), you will utilize the current cutting edge of video transmission, adding a professional quality to your project. Ghost-Eye Wireless Video Receiver 150M required for full feature utilization.

-- 150M Wireless HD Video Receiver --
With the Cinegears Ghost-Eye Wireless HDMI & SDI Receiver 150M, receive high fidelity, uncompressed HD video transmission up to 300 meters/984 ft and feel free as you shoot indoors or out, night or day. With both 3G and HDMI inputs and outputs and 10 workable transmission frequencies (using an unlimited number of receivers simultaneously), you will utilize the current cutting edge of video transmission, adding a professional quality to your project. Ghost-Eye Wireless Video Transmitter 150M required for full feature utilization.

Cinegears Ghost-Eye Features

  • Including two AC adapters to power your setup
  • Your pro kit includes an additional receiver
  • Cloverleaf antennas which offer increased range
  • Includes rugged Pelican Protector case to protect your kit
  • Wireless HD video transmission kit, SDI and HDMI up to 1080p 60fps 10-bit 4:2:2
  • Broadcast video and audio up to 300 meters/984 ft (line of sight) over 5GHz frequencies
  • Transmit to unlimited receivers (of any Ghost-Eye model) on separate channels with less than 1ms latency
  • 3-year warranty serviced in North America
  • Fully compatible with previous versions of the 150M, 300M and 400M
  • Increased range over original 150M kit
  • Cinegears 150m Transmitters and Receivers:
  • Uses License-Free 5GHz ISM frequency band, maximum 10 frequency channels manual selection, Coexist with WIFI
  • Supports wireless 10 bit HD video with no compression and no delay up to 300 meters/984 ft
  • Uncompromising picture quality with very low latency less than 1ms
  • Supports point to point and point to multi points network topology, multiple receiver is supported with an unlimited number of receivers
  • Cross compatibility between Cinegears Ghost-eye 100M, 300M and 400M transmitter and receivers
  • Highest resolution 10bits color depth 4:2:2, 1080p 60FPS HDMI and SD/HD/3G SDI input and output, HDMI - SDI cross conversion is supported
  • Support professional audio formats include Dolby True HD, DTS-master, etc
  • AES-128 encryption with air interface HD video data stream
  • Wide range power voltage input, adapts most kinds of camera batteries, optional Standard V-mount, Anton Bauer, or 1/4 bolt Mount battery plate can be installed
  • Sony F970 battery buckle, convenient for field battery install and replacement
  • Any input and output ports with +/-8 kV ESD protection level (HBM, contact discharge)
  • Plug & Play- full hardware design, no software is required
  • Professional standard 2-pin LEMO power plugs
  • Built with industrial metal case that is both sturdy and reliable
  • RX(Receiver) built-in directional antenna
  • Signal indicators for wireless power status, Video status and receiver RSSI
  • Water and mist proof, shock proof production case with form insert ready for traveling
  • CE, FCC, RoHS certified product, safe to use worldwide
  • 150M Wireless HD Video Transmitter:
  • INPUT: HDMI, HD SDI
  • 2 External paddle antenna
  • 2 5G Optimized Cloverleaf antenna
  • 150M Wireless HD Video Receiver:
  • OUTPUT: HDMI, HD SDI
  • Internal directional antenna

What's in the box:

  • Cinegears 150M V2.03 Video Transmitter
  • 2x 150M V2.03 Video Receiver
  • 2x Paddle Antenna
  • 2x AC Power Adapters
  • 2x 2-Pin Lemo Power Cable for 150M System
  • Heavy Duty Ball Joint Articulated Arm
  • 12mm-55mm Steel Mounting Clamp
  • Waterproof Pelican 1510 Case with Padded Dividers
  • Cinegears 3 Year Warranty
