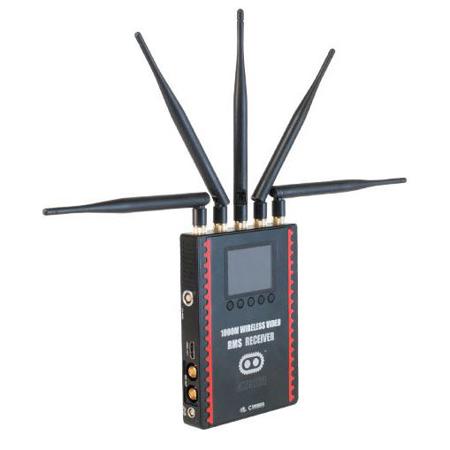

Cinegears Ghost-Eye 1000M Encrypted Wireless HDMI and SDI Video Transmission Redundant Management System (RMS) Kit, V Mount

SKU: CG611111 MFR: 6-11111
Earn VIP Reward Points

Key Features

  • Experience reliable video transmission with the Cinegears Ghost-Eye 1000M system.
  • Achieve long-range wireless video up to 3280' with low latency for seamless monitoring.
  • Enjoy high-resolution video formats supported, including 1080p, for crystal-clear visuals.
  • Benefit from encrypted wireless HDMI and SDI, ensuring secure video broadcast every time.
  • The redundant management system (RMS) offers stable connections for critical shoots.
  • Set up easily with versatile power options, including V Mount batteries for on-location use.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cinegears Ghost-Eye 1000M Encrypted HDMI & SDI Transmission RMS Kit, V-Mount Specifications

System
  • Frequency range

    5.1-5.9GHz
    2.4-2.483GHz with ISM band

  • Modulation method and Bandwidth

    OFDM/40MHz for video
    GFSK/1MHz for intercom system

  • Video Formats Supported

    1080p 23.98/24/25/30/50/60
    1080i 50/59.94/60
    720p 50/59.94/60
    576p 576i 480p 480i

  • Audio Formats Supported

    PCM, DTS-HD, Dolby TrueHD

  • Time Code

    SMPTE-12M

  • Transmission Range

    3280' (1000m) (Line of sight)

Transmitter

Jump to...
  • Antenna

    2x External Antenna 5G
    1x External Antenna 2.4G

  • Transmission Power

    18dBm

  • Functional Interface

    HDMI Input; SDI Input; SDI Loop Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket; Power ON/OFF

  • Mounting Structure

    1/4" Hot-shoe connection

  • OLED Display

    Channel Info; Video status; Battery capacity; Status Menu, Audio Volume

  • Power Source

    9-18V for DC input, F550/F970 battery

  • Power Consumption

    7.5-8.5W

Receiver

Jump to...
  • Antenna

    5x External Antenna 5G

  • Receiving Sensitivity

    -70dBm

  • Functional Interface

    SDI Dual Output; HDMI Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket; Power ON/OFF

  • Locating Structure

    1/4" Hot-shoe connection

  • OLED Display

    Channel Info; Signal Strength; Power Info

  • Power Source

    9-18V for DC input; V Mount battery

  • Power Consumption

    7.5-8.5W

General

Jump to...
  • Operating Temperature

    14 to 122 deg. F (-10 to 50 deg. C)

  • Storage Temperature

    -40 to 176 deg. F (-40 to 80 deg. C)

  • Dimensions

    Transmitter: 142.5 x 76 x 24.3mm (5.61 x 2.99 x 0.96")
    Receiver: 169.5 x 122 x 25.2mm (6.67 x 4.80 x 0.99")

  • Weight

    Transmitter: 400g (14.11 oz) (with antenna)
    Receiver: 800g (28.22 oz) (with antenna)

  • UPC Code

    604015712660

About Cinegears Ghost-Eye 1000M Encrypted HDMI & SDI Transmission RMS Kit, V-Mount

From the forefront of wireless video and audio transmission technology, the Cinegears Ghost-Eye 1000M V Mount Kit offers an advanced, high-tech solution for transmitting HDMI and SDI video signals over long distances. This state-of-the-art system is designed with redundancy in mind, featuring multiple receivers and transmitters to ensure a stable, reliable signal even in challenging environments where wired connections are impractical.

The Ghost-Eye 1000M V Mount Kit is not only sophisticated but also versatile, offering HDMI/SDI cross-compatibility, 10-bit color, and SDI loop-out. This innovative system is more robust and powerful than its predecessors and competitors, setting a new standard in the wireless video and audio transmission market.

One of the standout features of this system is its industry-exclusive technology that supports 3G SDI metadata, making it compatible with most broadcasting equipment. With an impressive range of up to 1000 meters, this system is ideal for use in remote locations or live events.

The Ghost-Eye 1000M V Mount Kit also offers customizable encryption, ensuring your signal is protected with the highest level of security available. This unique feature makes the Ghost-Eye system the only wireless video transmission system in the world to offer customizable channel encryption, all while transmitting 10-bit HD video at less than 1ms latency.

Each Ghost-Eye transmitter and receiver is individually processed for optimal security and can be set up across multiple units and Ghost Eye models for cross-compatibility. The system complies with the Federal Communications Commission requirement and the Industry Canada Certification standard.

The Ghost-Eye 1000M V Mount Kit can transmit uncompressed 1080p, 60fps video to a virtually unlimited number of simultaneous receivers. It also features in-unit cross conversion, allowing you to send via SDI and receive via HDMI or vice versa. With 10 selectable frequency channels, this system can coexist with Wi-Fi, and signals dropped due to interference or loss of line-of-sight are automatically reconnected within 1ms of the obstacle being removed.

Designed with user convenience in mind, this system comes with a V-mount receiver, allowing it to be easily mounted on a camera or other device with a V-mount battery plate. This feature eliminates the need for an external power source, making the system easy to use and transport.

In conclusion, the Ghost-Eye 1000M V Mount Kit is a sophisticated, high-tech solution for wireless video and audio transmission, offering advanced features and unparalleled performance. Whether you're broadcasting from a remote location or a live event, this system ensures a stable, reliable signal for superior video and audio quality.

Cinegears Ghost-Eye 1000M Encrypted HDMI & SDI Transmission RMS Kit, V-Mount Features

  • Wireless HD video and audio transmission over 1000 meters (3280 feet)
  • Transmits 1080p resolution at up to 60fps with 10-bit 4:2:2 color
  • HDMI/SDI Cross Conversion with SDI Loop-Out
  • Time Code Supported
  • Guaranteed High-Accuracy Start/Stop Functionality
  • Extreme Low Latency at less than 1ms
  • 4 Transmission Channels to an unlimited number of Ghost-Eye Receivers
  • Full cross-compatibility with other Ghost-Eye models
  • Auto-relink once transmitter is carried back within range
  • Powered by 2-Pin Lemo to D-Tap

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Experience reliable video transmission with the Cinegears Ghost-Eye 1000M system.
  • Achieve long-range wireless video up to 3280' with low latency for seamless monitoring.
  • Enjoy high-resolution video formats supported, including 1080p, for crystal-clear visuals.
  • Benefit from encrypted wireless HDMI and SDI, ensuring secure video broadcast every time.
  • The redundant management system (RMS) offers stable connections for critical shoots.
  • Set up easily with versatile power options, including V Mount batteries for on-location use.

What's in the box:

  • Cinegears Ghost-Eye 1000M Transmitter
  • Ghost-Eye 1000M Receiver
  • 2x 2-Pin Lemo to D-Tap Power Cables
  • Heavy Duty Steel Ball Joint Articulated Arm
  • 7x Extended High-Range Antennas
  • Waterproof Foam Case
  • Cinegears 3 Year Warranty
