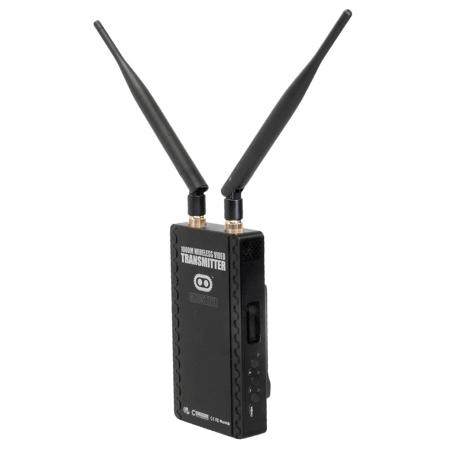

Cinegears Ghost Eye 1000M Wireless HDMI/SDI Video Transmitter

SKU: CG6112 MFR: 6-112
Earn VIP Reward Points

Key Features

  • Experience reliable video transmission with this wireless HDMI/SDI transmitter.
  • Achieve long-range broadcast capabilities with extended high-range antennas.
  • Enjoy low latency streaming for real-time monitoring with the Ghost-Eye 1000M.
  • Connect easily with HDMI and SDI inputs, plus SDI loop output for versatility.
  • Power your wireless video transmitter with DC input or a convenient F970 battery.
  • Set up quickly using the 1/4" hot-shoe connection for seamless integration.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cinegears 1000M Transmitter Specifications

  • Antenna

    2x External Antenna

  • Transmission Power

    18dBm

  • Functional Interface

    HDMI Input; SDI Input; SDI Loop Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket; Power ON/OFF

  • Mounting Structure

    1/4" Hot-Shoe Connection

  • OLED Display

    Wireless Channel Info; video status; Battery info

  • Working Voltage

    9-18V by DC input, F970 battery

  • Power Consumption

    7-8W

  • Temperature

    -10-50 (Operating); -40-80 (Storage)

  • Dimensions

    142.5 x 76 x 24.3mm (5.61 x 2.99 x 0.96")

  • Weight (with antenna)

    400g (0.88 lb)

  • UPC Code

    612520356156

About Cinegears 1000M Transmitter

The Cinegears Ghost-Eye 1000M is at the cutting edge of wireless video and audio transmission technology. Providing maximum functionality with HDMI/SDI cross-compatibility, 10-bit color and SDI loop-out, the 1000M now comes in a form more robust and powerful than its predecessors and its competitors. Add the impressive 1000 meter range with extended antennas for good measure, the Ghost-Eye 1000M is the new standard in the wireless video and audio transmission market.

10-Bit 4:2:2 Video
Transmit uncompressed 1080p, 60fps video with any Ghost-Eye transmitter to a virtually unlimited number of simultaneous receivers.

1ms Latency, 300Mb/s
Never miss a frame; the broadcasting capacity of the Ghost-Eye wireless transmission protocols exceeds the maximum resolution!

Cross-Convertible
Each Ghost-Eye transmitter and receiver has both HDMI and SDI output/input and features in-unit cross conversion; send via SDI and receive via HDMI or vice versa!

X-Sync
All Ghost-Eye transmitter and receiver models are cross compatible; transmit video from 400M transmitters to 150M and 300M receivers and vice versa!

Auto-Relink
Signals dropped due to interference or loss of line-of-sight are automatically re-connected within 1ms of the obstacle being removed.

Intuitive Signal
Small obstacles in the line-of-sight are accommodated with an adaptive signal logarithm, keeping your signal connected.

High Sensitivity Antennas
Omni-directional antennas broadcast your signal with integrity.

Cinegears 1000M Transmitter Features

  • Wireless HD video and audio transmission over 600 meters (2000 feet)
  • Transmits 1080p resolution at up to 60fps with 10-bit 4:2:2 color
  • HDMI/SDI Cross Conversion with SDI Loop-Out
  • Time Code Supported
  • Limited Start/Stop Functionality
  • Extreme Low Latency at less than 1ms
  • 4 Transmission Channels to an unlimited number of Ghost-Eye Receivers
  • Full cross-compatibility with other Ghost-Eye models
  • Auto-relink once transmitter is carried back within range
  • Powered by 2-Pin Lemo to D-Tap

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Experience reliable video transmission with this wireless HDMI/SDI transmitter.
  • Achieve long-range broadcast capabilities with extended high-range antennas.
  • Enjoy low latency streaming for real-time monitoring with the Ghost-Eye 1000M.
  • Connect easily with HDMI and SDI inputs, plus SDI loop output for versatility.
  • Power your wireless video transmitter with DC input or a convenient F970 battery.
  • Set up quickly using the 1/4" hot-shoe connection for seamless integration.

What's in the box:

  • 1x Ghost-Eye 1000M Transmitter
  • 1x 2-Pin Lemo to D-Tap Power Cable
  • 2x Extended High Range Antennas
  • Cinegears 3 Year Warranty
