Cinegears Ghost-Eye 4K UHD Wireless Video Transmission Redundant Management Kit with Dual Receiver

SKU: CG61123 MFR: 6-1123
Earn VIP Reward Points

Key Features

  • Experience stable signal transmission up to 1000m with this wireless video kit.
  • Enjoy low latency (<=1ms) for real-time monitoring with this wireless transmitter.
  • Capture every detail with high resolution 4K UHD wireless video transmission.
  • Set up easily with the included Cinegears Ghost-Eye wireless video system.
  • Rely on durable components designed for broadcast and on-location shoots.
  • Manage your video feeds with the redundant management RMS switcher included.
See More Product Details
Special Order?Estimated to Ship: 08/12/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cinegears Ghost-Eye 4K UHD Specifications

Receiver

Receiver

Jump to...
  • Video Formats Supported

    2160p 23.98 / 24 / 25 / 30 / 50 / 60 (UHDTV1)
    1080p 23.98 / 24 / 25 / 30 / 50 / 60
    1080psf 23.98 / 24/ 25
    1080i 50 / 59.94 / 60
    720p 50 / 59.94 / 60
    576p 576i 480p 480i
    10bpc (30bit/px) or 12bpc (36bit/px) color depth(HDR)
    RGB, 4:4:4, 4:2:2, or 4:2:0 pixel encoding
    All format support 10-bit 4:2:2 color

  • Video encoding

    No compression, XAVC, H.265 (HEVC)

  • Frequency

    Free Frequency (EU): 5150 to 5250 MHz, 5725 to 5825 MHz
    Free Frequency (USA): 5150 to 5250 MHz, 5725 to 5825 MHz
    Free Frequency (JAP): 5150 to 5250 MHz
    Customized Frequency: 5150 to 7825 MHz

  • Transmission power

    17dBm

  • Latency

    <= 1ms

  • Mechanical Interface

    V-lock Battery / Gold mount, 12V DC input

  • Bandwidth

    40MHz

  • Power consumption

    9W

  • Transmission range

    Open environment: Up to 1000m

  • Operating Temperature

    0 to 65 deg. C (32 to 149 deg. F)

  • Storage Temperature

    -20 to 100 deg. C (-4 to 212 deg. F)

  • Over-voltage Protection

    DC12V / 2A (7V - 36V)

  • Audio Format

    PCM, DTS-HD, Dolby True HD, Broadcast SDI embed 16 Channels

  • Antenna Mode

    Internal antenna / External antenna

Transmitter

Jump to...
  • Video Formats Supported

    2160p 23.98 / 24 / 25 / 30 / 50 / 60 (UHDTV1)
    1080p 23.98 / 24 / 25 / 30 / 50 / 60
    1080psf 23.98 / 24/ 25
    1080i 50 / 59.94 / 60
    720p 50 / 59.94 / 60
    576p 576i 480p 480i
    10bpc (30bit/px) or 12bpc (36bit/px) color depth(HDR)
    RGB, 4:4:4, 4:2:2, or 4:2:0 pixel encoding
    All format support 10-bit 4:2:2 color

  • Video encoding

    No compression, XAVC, H.265 (HEVC)

  • Frequency

    Free Frequency (EU): 5150 to 5250 MHz, 5725 to 5825 MHz
    Free Frequency (USA): 5150 to 5250 MHz, 5725 to 5825 MHz
    Free Frequency (JAP): 5150 to 5250 MHz
    Customized Frequency: 5150 to 7825 MHz

  • Transmission power

    17dBm

  • Latency

    <= 1ms

  • Mechanical Interface

    V-lock Battery / Gold mount, 12V DC input

  • Bandwidth

    40MHz

  • Power consumption

    9W

  • Transmission range

    Open environment: Up to 1000m

  • Operating Temperature

    0 to 65 deg. C (32 to 149 deg. F)

  • Storage Temperature

    -20 to 100 deg. C (-4 to 212 deg. F)

  • Over-voltage Protection

    DC12V / 2A (7V - 36V)

  • Audio Format

    PCM, DTS-HD, Dolby True HD, Broadcast SDI embed 16 Channels

  • Antenna Mode

    Internal antenna / External antenna

  • Video Formats Supported

    2160p 23.98 / 24 / 25 / 30 / 50 / 60 (UHDTV1)
    1080p 23.98 / 24 / 25 / 30 / 50 / 60
    1080psf 23.98 / 24/ 25
    1080i 50 / 59.94 / 60
    720p 50 / 59.94 / 60
    576p 576i 480p 480i
    10bpc (30bit/px) or 12bpc (36bit/px) color depth(HDR)
    RGB, 4:4:4, 4:2:2, or 4:2:0 pixel encoding
    All format support 10-bit 4:2:2 color

  • Video input and output

    2x 4x 3G SDI input, 1x 12G SDI output

  • Data IO

    6Pin Limo, Cat5 Ethernet

  • Data range

    2x 1000Meters

  • Latency

    = 1frame

  • Mechanical Interface

    V-lock Battery / Gold mount, 12V DC input

  • On board memory

    4TB DDR 5

  • Power consumption

    12W

  • Operating Temperature

    0 to 65 deg. C (32 to 149 deg. F)

  • Storage Temperature

    -20 to 100 deg. C (-4 to 212 deg. F)

  • Over-voltage Protection

    DC12V / 2A (7V - 36V)

General

Jump to...
  • Dimensions (LxWxH)

    Receiver: 30.5 x 30.5 x 5cm (12.01 x 12.01 x 1.97")
    Transmitter: 39.5 x 13 x 4.25cm (15.55 x 5.12 x 1.67")
    RMS: 4 x 36.5 x 11cm (1.57 x 14.37 x 4.33")

  • UPC Code

    604015712974

About Cinegears Ghost-Eye 4K UHD

Because professional videographers and broadcasters require reliable, high-quality wireless video solutions, the Ghost-Eye 4K UHD Wireless Video Transmission Redundant Management Kit with Dual Receiver stands out as an industry-leading choice. Developed by Cinegears, a brand synonymous with cutting-edge wireless technology, this kit is engineered to meet the rigorous demands of any broadcasting environment.

The Ghost-Eye kit boasts a robust feature set, including the ability to transmit encrypted 4K broadcast-quality video and audio signals with exceptional clarity. With a color depth of 10-bit and a chroma subsampling rate of 4:4:2, the system ensures that every frame of your 3840x2160 resolution content is delivered with the utmost fidelity, up to 60 frames per second. Moreover, the transmission is achieved with virtually no latency and without any compression, preserving the integrity of your high-definition content.

The dual receiver configuration provides real-time redundant signal management, ensuring that your broadcast is uninterrupted even in the most challenging conditions. This redundancy is critical for live events where every moment counts, and the Ghost-Eye system delivers with a transmission range of up to 1000 meters. Additionally, the system is capable of handling fast-moving subjects at speeds of up to 110KM/Hour, making it ideal for capturing high-speed action without signal degradation.

The kit is equipped with a powerful 5GHz amplifier and features live 5GHz spectrum scanning, which allows for the best possible channel selection in congested wireless environments. This ensures a clean and stable signal, free from interference. The system also supports the synchronization of data, metadata, and time code, as well as PTZ (Pan, Tilt, Zoom) commands, which are essential for professional-grade video production.

Designed with versatility in mind, the Ghost-Eye kit is not just about delivering pristine video and audio. It also offers comprehensive power management options, ensuring that your equipment remains operational throughout extended shooting sessions.

In summary, the Ghost-Eye 4K UHD Wireless Video Transmission Redundant Management Kit with Dual Receiver by Cinegears is a testament to the brand's commitment to excellence, as evidenced by its adoption by major broadcasters such as BBC, CCTV, NHK, CNN, and ABC for their live events. This system is the definitive solution for professionals who refuse to compromise on quality and reliability in wireless video transmission and live broadcasting streaming.

Cinegears Ghost-Eye 4K UHD Features

  • Up to 1000 (3280 feet) meters transmission range
  • Connect to unlimited receivers
  • Hardware-encrypted broadcast-quality video
  • 110KM /Hour fast-moving subject compatible
  • Signal of arriving in all its 10-bit, 4:2:2, 3840x2160
  • Transmitting video with 60FPS, no latency, no compression
  • Compatible with 5GHz Amplifier, Live 5GHz Spectrum Scanning
  • Featuring Synchronization data, Metadata, Time Code, PTZ commands
  • Bring real-time Redundant signal management, Backup, Power management

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Key Features

  • Experience stable signal transmission up to 1000m with this wireless video kit.
  • Enjoy low latency (<=1ms) for real-time monitoring with this wireless transmitter.
  • Capture every detail with high resolution 4K UHD wireless video transmission.
  • Set up easily with the included Cinegears Ghost-Eye wireless video system.
  • Rely on durable components designed for broadcast and on-location shoots.
  • Manage your video feeds with the redundant management RMS switcher included.

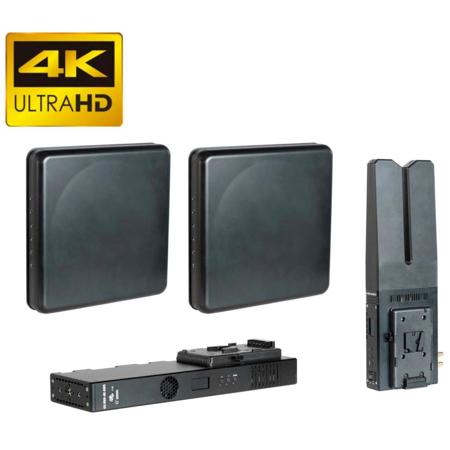

What's in the box:

  • Cinegears Ghost-Eye 4K UHD Wireless Video Transmitter
  • 2x Ghost-Eye 4K UHD Wireless Video Receiver
  • Ghost-Eye 4K UHD Redundant Management RMS Switcher
  • Cinegears 3 Year Limited Warranty
