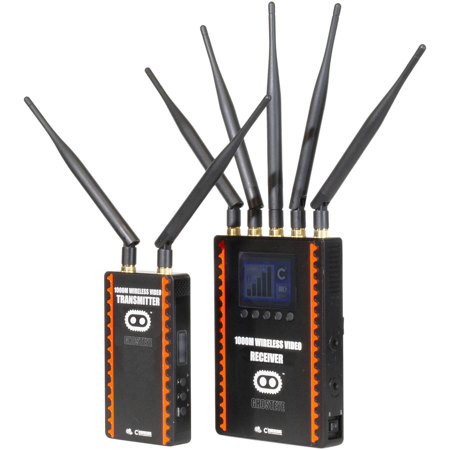

Cinegears Ghost-Eye 1000M Wireless HDMI & SDI Video Transmission Kit, Gold Mount, Encrypted

SKU: CG6118 MFR: 6-118
Earn VIP Reward Points

Key Features

  • Experience reliable wireless video transmission up to 3280ft with low latency.
  • Achieve high-resolution video with uncompressed HDMI & SDI formats for pristine quality.
  • Enjoy a secure connection with 128-bit AES encryption for worry-free broadcasting.
  • Set up is easy! This wireless video transmitter kit is ready to use, right out of the box.
  • Use the Ghost-Eye 1000M for live streaming events and professional video production.
  • This affordable wireless video solution supports multiple power options, including Gold Mount.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cinegears Ghost-Eye 1000M HDMI/SDI Video Transmission Kit, Gold Mount, Encrypted Specifications

Wireless

Wireless

Jump to...
  • Wireless Range

    3280.84' (1000m) (Line-of-Sight)

  • Frequency Range

    5.1 to 5.9 GHz

  • Latency

    < 1 ms

  • RF Power

    18 dBm

  • RF Sensitivity

    -70 dBm

  • Wi-Fi

    2.4 GHz

  • Wireless Video Compression

    Uncompressed

Interfaces

Jump to...
  • Antenna Ports

    Transmitter: 2x RP-SMA Female
    Receiver: 5x RP-SMA Female

  • Video Connectors

    Transmitter: 1x BNC (3G-SDI) Input
    1x HDMI (HDMI 1.4) Input
    1x BNC (3G-SDI) Loop Output

    Receiver: 1x BNC (3G-SDI) Output
    1x HDMI (HDMI 1.4) Output
    1x BNC (3G-SDI) Loop Output

  • Embedded Audio

    HDMI: 2-Channel
    SDI: 2-Channel
    Wireless: 2-Channel

  • Encryption

    128-Bit AES

Format Support

Jump to...
  • Broadcast System Compatibility

    NTSC, PAL

  • Video Format

    SDI/BNC:1080p 4:2:2 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
    SDI/BNC:1080i/720p/576i/480i at 50, 59.94, 60 fps
    HDMI:1080p 4:2:2 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
    HDMI:1080i/720p/576i/480i at 50, 59.94, 60 fps

  • Audio Format

    2-Channel PCM, DTS-HD, Dolby TrueHD Audio

  • Video Standard Compliance

    SMPTE 259M/274M/292M/296M/372M/424M-B/425M

  • Timecode

    Yes

  • Built-In Battery

    None

  • Battery Support

    Transmitter: 1x Sony L-Series / NP-F Type
    Receiver: 1x Gold Mount

  • Power Connector

    1x 2-Pin LEMO Input

  • Power Consumption

    Power Supply: 9 to 18 VDC8.5 W

Environmental

Jump to...
  • Operating Temperature

    14 to 122 Degree F (-10 to 50 Degree C)

  • Storage Temperature

    -40 to 176 Degree F (-40 to 80 Degree C)

General

Jump to...
  • Mounting

    1x 1/4"-20 Female

  • Dimensions

    Transmitter: 5.61 x 2.99 x 0.96" (142.5 x 76 x 24.3mm)
    Receiver: 6.67 x 4.8 x 0.99" (169.5 x 122 x 25.2mm)

  • Weight

    With Antenna: Transmitter:14.1 oz (400g)
    Receiver: 28.2 oz (800g)

  • UPC Code

    610877598410

About Cinegears Ghost-Eye 1000M HDMI/SDI Video Transmission Kit, Gold Mount, Encrypted

Transmit uncompressed 1080p60, 10-bit, 4:2:2 video up to 3280' with the CINEGEARS Ghost-Eye 1000M Transmission Kit, featuring a Gold mount version. The kit includes one transmitter and one receiver, with the capability to securely support up to four encrypted receivers on each channel. It is fully cross-compatible with other Ghost-Eye models of the same encryption level, allowing you to mix and match receivers for different ranges. The receiver in this kit comes with an integrated Gold mount battery plate, while the transmitter uses a Sony L-series plate. Batteries are sold separately. Unlike other Ghost-Eye models where "M" indicates the minimum transmission distance, the 1000M supports a maximum distance of 3280'.

Cinegears Ghost-Eye 1000M HDMI/SDI Video Transmission Kit, Gold Mount, Encrypted Features

  • Transmits uncompressed 1080p60, 10-bit, 4:2:2 video up to 3280'
  • Supports up to four encrypted receivers per channel
  • Compatible with all Ghost-Eye models of the same encryption level
  • Receiver includes a Gold mount battery plate, transmitter has Sony L-series plate
  • Operates on a license-free 5 GHz frequency band for stable transmission
  • 3280' range represents the maximum distance supported, not the minimum

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Experience reliable wireless video transmission up to 3280ft with low latency.
  • Achieve high-resolution video with uncompressed HDMI & SDI formats for pristine quality.
  • Enjoy a secure connection with 128-bit AES encryption for worry-free broadcasting.
  • Set up is easy! This wireless video transmitter kit is ready to use, right out of the box.
  • Use the Ghost-Eye 1000M for live streaming events and professional video production.
  • This affordable wireless video solution supports multiple power options, including Gold Mount.

What's in the box:

  • Ghost-Eye 1000M Wireless HDMI & SDI Video Transmitter (Encrypted)
  • Ghost-Eye 1000M Wireless HDMI & SDI Video Receiver (Gold Mount/Encrypted)
  • 2x 2-Pin LEMO to D-Tap Power Cables
  • 7x 5G Extended High-Range Antennas
  • 2x 2G Antennas
  • Waterproof Foam Case
  • Cinegears 3 Year Limited Warranty
