Just Reduced

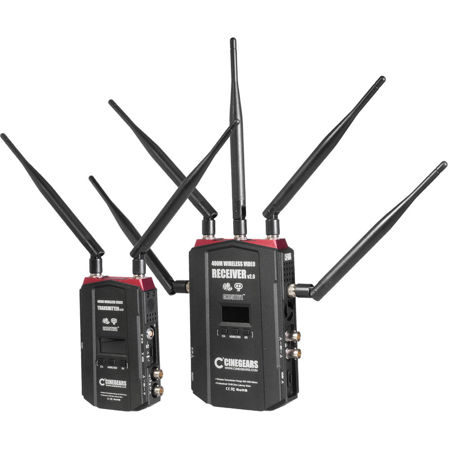

Cinegears Ghost-Eye 400M V2 V-Mount Wireless HDMI/SDI Video Transmitter and Receiver Kit, Includes 7x Extended Antennas, Waterproof Foamed Case

SKU: CG6402KIT MFR: 6-402
Earn VIP Reward Points

Key Features

  • Achieve reliable wireless video transmission up to 3281' with this HDMI/SDI transmitter.
  • Enjoy pristine image quality with 8/10-bit color depth for professional video productions.
  • Experience low latency, real-time wireless video for seamless monitoring on set.
  • Secure your broadcast with AES-128/256 encryption, ensuring your content stays protected.
  • Set up quickly using the included V-Mount brackets and hot shoe stands for easy mounting.
  • This affordable wireless video system supports multiple formats, including 1080p and 3G-SDI.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cinegears Transmitter+Receiver Kit Specifications

Transmitter

Transmitter

Jump to...
  • Interface

    Input: 1x SDI BNC, female; 1x HDMI Type A, female
    Output: 1x SDI BNC, loop-through out
    Power In, Power On/Off, Antenna: 2x RP5MA

  • Power

    Consumption: <6.5W
    Input Voltage Range: 6.5 to 16.8 VDC

  • Video Input Formats

    3G-SDI, HD-SDI (Auto/Manual):
    1080p: 60/59.94/50/30/29.9/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 625i: 60/59.94/50, 525i: 60/59.94/50

    HDMI Type A:
    1080p: 60/59.94/50/30/29.9/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 625i: 60/59.94/50, 525i: 60/59.94/50

    SMPTE:
    259/274/292/296/372/424/425

  • Video Output Format

    SDI input loop-through out

  • Audio Input Formats

    SDI embedded 4-channel 24-bit/48 kHz
    PCM
    DTS-HD
    Dolby TrueHD

  • Audio Output Format

    SDI embedded audio loop-through out

  • Video Processing Color Depth

    8-bit; 10-bit; (4:0:0); (4:2:2)

  • Maximum Transmission Distance

    3281' (1000m)

  • Frequency

    5.1 to 5.9GHz

  • Transmission Power

    <21dBm

  • Occupied Bandwidth

    40MHz

  • Signal Indicator

    POWER-Green; VIDEO-Yellow

  • Encryption

    AES-128/256

  • Modulation Mode

    OFDM 16QAM

  • Time Code

    Ever 10 Second

  • Compliance

    FCC; CE; RoHS

  • Temperature

    Operating: 5 to 140 deg. F (-15 to 60 deg. C)
    Storage: -40 to 176 deg. F (-40 to 80 deg. C)

Receiver

Jump to...
  • Interface

    Output:
    1x SDI BNC, female
    1x HDMI Type A, female
    1x SDI, loop-through out

    Power In, Power On/Off, Antenna: 5x RP5MA

  • Power

    Consumption: <6W
    Input Voltage Range: 6.5 to 16.8 VDC

  • Video Input Formats

    3G-SDI, HD-SDI (Auto/Manual):
    1080p: 60/59.94/50/30/29.9/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 625i: 60/59.94/50, 525i: 60/59.94/50

    HDMI Type A:
    1080p: 60/59.94/50/30/29.9/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 625i: 60/59.94/50, 525i: 60/59.94/50

    SMPTE:
    259/274/292/296/372/424/425

  • Video Output Formats

    3G-SDI, HD-SDI (Auto/Manual):
    1080p: 60/59.94/50/30/29.9/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 625i: 60/59.94/50, 525i: 60/59.94/50

    HDMI Type A:
    1080p: 60/59.94/50/30/29.9/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50, 625i: 60/59.94/50, 525i: 60/59.94/50

    SMPTE:
    259/274/292/296/372/424/425

  • Audio Output Format

    SDI embedded 4-channel 24-bit/48 kHz
    PCM
    DTS-HD
    Dolby TrueHD

  • Video Processing Color Depth

    8-bit; 10-bit; (4:0:0); (4:2:2)

  • Maximum Transmission Distance

    3281' (1000 m)

  • Frequency Band

    5.1 to 5.9GHz

  • Receiver Sensitivity

    -75dBm

  • Occupied Bandwidth

    40MHz

  • Signal Indicator

    POWER-Green; Wireless RSSI-Blue (4 LEDs); POWER/VIDEO-Yellow

  • Encryption

    AES-128/256

  • Modulation Mode

    OFDM 16QAM

  • Time Code

    Ever 10 Second

  • Compliance

    FCC; CE; RoHS

  • Temperature

    Operating: 5 to 140 deg. F (-15 to 60 deg. C)
    Storage: -40 to 176 deg. F (-40 to 80 deg. C)

Hot Shoe Stand

Jump to...
  • Mounts

    Standard 1/8"
    Hot shoe

General

Jump to...
  • Dimensions

    Transmitter (LxWxH): 108 x 60 x 23mm (4.25 x 2.36 x 0.91")
    Receiver (LxWxH): 126.5 x 75 x 31.5mm (4.98 x 2.95 x 1.24")
    Universal V-Mount Bracket: 1.5 x 1.3 x 0.5" (3.81 x 3.30 x 1.27cm)
    Hot Shoe Stand (Dia.xL): 0.98 x 1.97" (2.49 x 5cm)

  • Weight

    Transmitter: 360g (12.70 oz)
    Receiver: 480g (16.93 oz)
    Universal V-Mount Bracket: 2 oz (56.70 g)
    Hot Shoe Stand: 1 oz (28.35 g)

  • UPC Code

    714983522298

About Cinegears Transmitter+Receiver Kit

How can you elevate your film and television production to the next level With the Ghost-Eye 400M V2 V-Mount Wireless HDMI/SDI Video Transmitter and Receiver Kit, you can transmit high-definition video and audio signals over long distances without compromising on quality. This advanced kit, designed by the reputable brand Cinegears, is trusted by professionals on film sets worldwide.

The Ghost-Eye 400M V2 V-Mount Wireless HDMI/SDI Video Transmitter and Receiver Kit is a durable and reliable solution for wireless video transmission. It includes a transmitter and receiver, seven extended antennas, and a waterproof foamed case, making it ideal for outdoor shoots and challenging environments.

This innovative kit supports wireless 10-bit HD video with no compression and no delay up to 1000 meters/3280 feet. It uses the License-Free 5GHz ISM frequency band, with a maximum of 4 channels for automatic or manual selection, coexisting with Wi-Fi. The kit supports point-to-point and point-to-multi points network topology, allowing for multiple receivers with up to 4 receivers.

The Ghost-Eye 400M V2 V-Mount Wireless HDMI/SDI Video Transmitter and Receiver Kit is compatible with both SDI and HDMI inputs and outputs, and supports cross compatibility between Cinegears Ghost-eye 100M, 150M, and 300M transmitter and receivers. It also supports professional audio formats including Dolby True HD, DTS-master, and more.

The kit features AES-128/256 encryption with air interface HD video data stream, HDMI 1.4 with EDID support, and Time Code, LUT, start/stop sync support. It also includes a built-in ultra-silent intelligent fan to prevent heat and moisture damage, and a wide range power voltage input to adapt to most types of camera batteries.

The Ghost-Eye 400M V2 V-Mount Wireless HDMI/SDI Video Transmitter and Receiver Kit is easy to use, with a plug & play fully hardware design, no software required. It also features a built-in LCD screen for device and signal status, and is water and mist proof, with a shock-proof production case with foam insert ready for traveling.

In summary, the Ghost-Eye 400M V2 V-Mount Wireless HDMI/SDI Video Transmitter and Receiver Kit is a high-quality, advanced solution for wireless video and audio transmission, trusted by professionals in the film and television industry.

Cinegears Transmitter+Receiver Kit Features

  • High-definition wireless HDMI/SDI video transmitter and receiver kit, ideal for professional film and television production
  • Supports wireless 10-bit HD video with no compression and no delay up to 1000 meters/3280 feet
  • Compatible with both SDI and HDMI inputs and outputs, with cross compatibility between Cinegears Ghost-eye 100M, 150M, and 300M transmitter and receivers
  • Features AES-128/256 encryption with air interface HD video data stream, HDMI 1.4 with EDID support, and Time Code, LUT, start/stop sync support
  • Includes a built-in ultra-silent intelligent fan to prevent heat and moisture damage, and a wide range power voltage input to adapt to most types of camera batteries
  • Comes with a durable, water and mist proof, shock-proof production case with foam insert for safe and easy transportation

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Achieve reliable wireless video transmission up to 3281' with this HDMI/SDI transmitter.
  • Enjoy pristine image quality with 8/10-bit color depth for professional video productions.
  • Experience low latency, real-time wireless video for seamless monitoring on set.
  • Secure your broadcast with AES-128/256 encryption, ensuring your content stays protected.
  • Set up quickly using the included V-Mount brackets and hot shoe stands for easy mounting.
  • This affordable wireless video system supports multiple formats, including 1080p and 3G-SDI.

What's in the box:

  • Cinegears Ghost-Eye 400M V2 V-Mount Wireless Video Transmitter
  • Ghost-Eye 400M V2 V-Mount Wireless Video Receiver
  • 7x Extended Antennas
  • 2x V-Mount Brackets
  • 2x 2-Pin LEMO Power Cables
  • 2x Hot Shoe Stands
  • Waterproof Foamed Case
  • Cinegears 3 Year Limited Warranty
