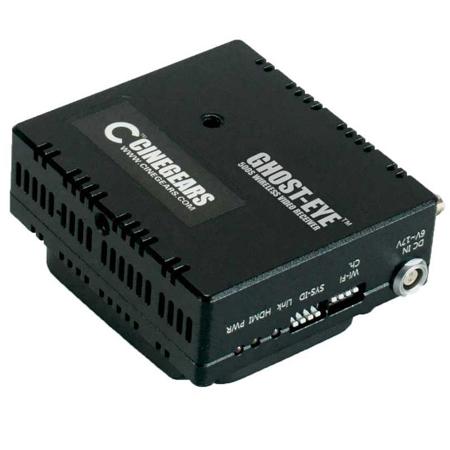

Cinegears 500S Ghost-Eye Wireless HDMI Video Receiver

The Cinegears Ghost-Eye Wireless HDMI Video Receiver 500S provides a solution for live streaming over both Ethernet and the Internet with low latency (<40ms); receive up to 1080p 60fps on HD/3G-SDI. The wireless coverage is up to 500m, depending on the line of sight (LOS). The equipment has real time streaming protocol in-built, with MPEG-2 TS/UDP streaming support. The system can be controlled with web browsers for online control; the full duplex serial interface allows easy control and low learning curve. This allows the 500S series receiver to stream HD video to IPhone, IPad, laptop, computer, Android Phone and Android Tablet. Ghost-Eye Wireless HDMI Video Transmitter 500S required for full feature utilization.

Full HD sender (Wireless or Ethernet)
• H.264 (MPEG-4 Parts10: AVC)
• Baseline Profile with level 4.2
• Low delay (40ms), end-to-end (80ms), H.264 engine
• Transport 1080p60 full HD over wireless/Ethernet
• Supports SD/HD/3G-SDI video in/out
• Embedded audio on SD/HD/3G-SDI
• Analog audio channel for separate audio

Live streaming from CCTV, camera over Internet
• Full HD live streaming server
• RTSP streaming server (RTP/UDP)
• MPEG-2 TS/UDP streaming
• Easy control interface with Web pages
• HD contents over 3G/LTE wireless network

Save bandwidth cost with multicasting
• No limits on the number of receivers (Ethernet mode)
• Max. 4 for wireless receiver
