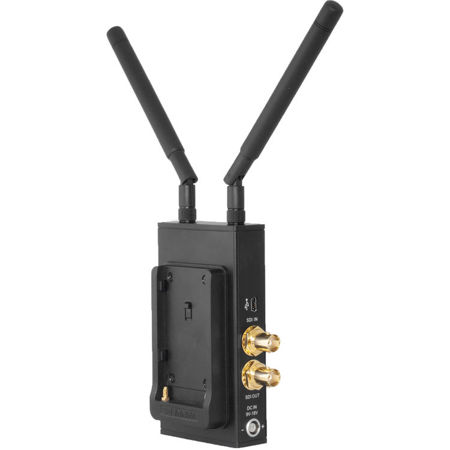

Cinegears Ghost-Eye 500M Wireless HD & SDI Audio/Video Transmitter

SKU: CG6511 MFR: 6-511
Earn VIP Reward Points

Key Features

  • Experience seamless video transmission with <1ms latency for real-time monitoring.
  • Achieve a remarkable wireless range of up to 1500 feet with the Ghost-Eye 500M system.
  • Enjoy pristine image quality with 8/10-bit color depth for professional video production.
  • Connect via SDI or HDMI inputs, supporting multiple HD video formats for versatility.
  • Ensure a reliable connection that coexists with Wi-Fi and 5GHz devices, minimizing interference.
  • Set up is easy! Mount using V-mount/A-mount plates or 1/4" screw for flexible installation.
See More Product Details
Special Order?Estimated to Ship: 09/17/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cinegears Ghost-Eye 500M TX Specifications

  • Interface

    SDI Input(BNC Female); HDMI Input(Type A female); SDI LOOP Out; LEMO(0B/2 core); POWER IN; RP5MA Antenna; Power Switch

  • Supply voltage range

    9-18V DC

  • Transmission Distance

    up to 457 meters/1500 feet

  • Power Consumption

    <7W

  • Input Video Format

    SDI:3G,HD SD-SDI(Auto/Manual-Selected): 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60
    HDMI Type A: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;SMPTE 259/274/292/296/372/424/425;

  • Output Video Format

    SDI input loop out

  • Video Process. Color depth

    8bit; 10 bit; (4:0:0); (4:2:2)

  • Input Audio Format

    SDI embedded 4 channel 24 bit/48Khz; PCM, DTS-HD, Dolby True HD

  • Output Audio

    SDI Embedded Audio Loop Out

  • Signal Indicator

    POWER-Green; VIDEO-Yellow

  • Frequency Band

    4.9-5.9GHz

  • Modulation Mode

    OFDM 16QAM

  • Transmission Power

    17dBm

  • Occupied Bandwidth

    40MHz

  • Temperature Range

    -10 Degree C to 50 Degree C (14 Degree F to 122 Degree F)

  • Transmission Cross Capability

    Ghost-Eye 100M; 150M; 300M; 400M; 500T

  • Time Code

    Ever 10 Second

  • Compliance

    FCC; CE; RoHS

  • Delay

    <1ms

  • Pair Pattern

    One to Multiple

  • Noise Reject

    Coexist with WIFI and 5GHz and phone

  • Update

    By mini-USB update firmware

  • Installation

    SONY V-mount plate (RX), can be changed to A-Mount. F550, F970 plate (TX) 1/4" installation screw hole

  • Dimensions (L x W x H)

    63 x 36 x 110 mm (2.48 x 1.41 x 4.33")

  • Mass Weight

    200 g (0.44 lbs)

About Cinegears Ghost-Eye 500M TX

With the Ghost-Eye 500M Wireless HD & SDI Audio/Video Transmitter, experience the pinnacle of wireless broadcasting technology. This robust and high-quality device is engineered to transmit uncompressed high-definition audio and video with exceptional clarity over an impressive distance of up to 500 meters (1640 feet). Whether you're capturing dynamic scenes on a film set or broadcasting live events, the Ghost-Eye 500M offers unparalleled freedom, allowing you to shoot both indoors and outdoors, in daylight or at night, without the constraints of cables.

This innovative and user-friendly transmitter supports a wide range of inputs and outputs, including both 3G-SDI and HDMI, catering to the diverse needs of professional video production. It operates on selectable frequencies between 4.9-5.9GHz, with the capability to run up to four channels simultaneously, ensuring a stable and interference-free signal even in the most demanding environments.

The compact design of the Ghost-Eye 500M does not compromise on durability, making it an ideal choice for the rigors of on-location work. For optimal performance and to harness the full suite of features, pair this transmitter with a compatible Ghost-Eye Wireless Video Receiver 400M. Elevate your audiovisual projects with the cutting-edge technology of the Ghost-Eye 500M Wireless HD & SDI Audio/Video Transmitter, a versatile solution for creators who demand the very best in wireless video transmission.

Cinegears Ghost-Eye 500M TX Features

  • Built in Talk back Mic and Headphone
  • Broadcast video and audio up to 457 meters / 1500 feet (line of sight) over 5GHz frequencies
  • Time Code supported
  • Transmit to up to 4 receivers (of any Ghost-Eye model) on separate channels with less than 1ms latency (no frames dropped)

Warranty Information

This product has a limited warranty of 36 months for parts and 36 months for labor.

Product Documents

User Manual

Key Features

  • Experience seamless video transmission with <1ms latency for real-time monitoring.
  • Achieve a remarkable wireless range of up to 1500 feet with the Ghost-Eye 500M system.
  • Enjoy pristine image quality with 8/10-bit color depth for professional video production.
  • Connect via SDI or HDMI inputs, supporting multiple HD video formats for versatility.
  • Ensure a reliable connection that coexists with Wi-Fi and 5GHz devices, minimizing interference.
  • Set up is easy! Mount using V-mount/A-mount plates or 1/4" screw for flexible installation.

What's in the box:

  • 500M Wireless Video Transmitter
  • Cinegears 3 Year Limited Warranty
