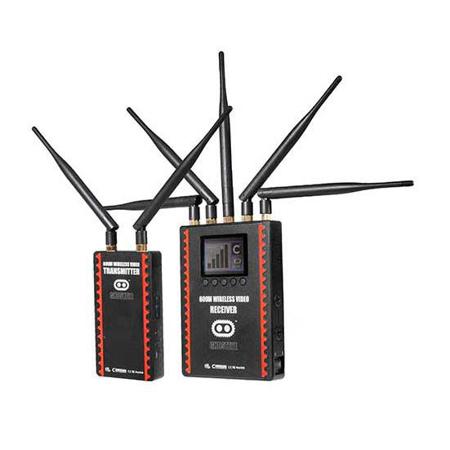

Cinegears Ghost-Eye Wireless HDMI & SDI Video Transmission Kit 600M, Gold Mount

SKU: CG6607

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Cinegears Ghost-Eye 600M Kit Specifications

General

General

Jump to...
  • Frequency

    5.1-5.9 GHz
    2.4-2.483GHz with ISM band

  • Modulation method and Bandwidth

    OFDM/40MHz for video
    GFSK/1MHz for intercom system

  • Video Formats Supported

    1080p 23.98/24/25/30/50/60
    1080psf 23.98/24/25
    1080i 50/59.94/60
    720p 50/59.94/60
    576p 576i 480p 480i

  • Audio Formats Supported

    PCM, DTS-HD, Dolby TrueHD

  • Time Code

    SMPTE-12M

  • Transmission Range

    600m (2000') (Line of Sight)

Transmitter

Jump to...
  • Antenna

    2x External Antenna 5G
    1x External Antenna 2.4G

  • Transmission Power

    18dBm

  • Functional Interface

    HDMI Input; SDI Input; SDI Loop Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket; Power ON/OFF

  • Mounting Structure

    1/4" Hot-Shoe Connection

  • OLED Display

    Wireless Channel Info; video status; Battery Capacity; Status Menu; Audio Volume

  • Power Source

    9-18V by DC input, F550/F970 battery

  • Power Consumption

    7.5-8.5W

  • Temperature

    Operating: -10 - 50 Degree C (-14 - 122 Degree F)
    Storage: -40 - 80 Degree C (-40 - 176 Degree F)

  • Dimensions

    142.5 x 76 x 24.3mm (5.61 x 2.99 x 0.96")

  • Weight (with Antenna)

    0.88 lb (400g)

Receiver

Jump to...
  • Antenna

    5x External Antenna 5G
    1x External Antenna 2.4G

  • Receiving Sensitivity

    -70dBm

  • Functional Interface

    SDI Dual Output; HDMI Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket; Power ON/OFF

  • Locating Structure

    1/4" Hot-shoe connection

  • OLED Display

    Channel info; Signal Status; Power Info

  • Power Source

    9-18V by DC input (Support Gold-Mount Battery)

  • Power Consumption

    7.5-8.5W

  • Temperature

    Operating: -10 - 50 Degree C (-14 - 122 Degree F)
    Storage: -40 - 80 Degree C (-40 - 176 Degree F)

  • Dimensions

    169.5 x 122 x 25.2mm (6.67 x 4.80 x 0.99")

  • Weight (with Antenna)

    1.76 lb (800g)

About Cinegears Ghost-Eye 600M Kit

The Cinegears Ghost-Eye 600M is at the cutting edge of wireless video and audio transmission technology. Providing maximum functionality with HDMI/SDI cross-compatibility, 10-bit color and SDI loop-out, the 600M now comes in a form more robust and powerful than its predecessors and its competitors. Add the impressive 600 meter range with extended antennas for good measure, the Ghost-Eye 600M is the new standard in the wireless video and audio transmission market.

10-Bit 4:2:2 Video
Transmit uncompressed 1080p, 60fps video with any Ghost-Eye transmitter to a virtually unlimited number of simultaneous receivers.

1ms Latency, 300Mb/s
Never miss a frame; the broadcasting capacity of the Ghost-Eye wireless transmission protocols exceeds the maximum resolution!

Cross-Convertible
Each Ghost-Eye transmitter and receiver has both HDMI and SDI output/input and features in-unit cross conversion; send via SDI and receive via HDMI or vice versa!

X-Sync
All Ghost-Eye transmitter and receiver models are cross compatible; transmit video from 400M transmitters to 150M and 300M receivers and vice versa!

Auto-Relink
Signals dropped due to interference or loss of line-of-sight are automatically re-connected within 1ms of the obstacle being removed.

Intuitive Signal
Small obstacles in the line-of-sight are accommodated with an adaptive signal logarithm, keeping your signal connected.

High Sensitivity Antennas
Omni-directional antennas broadcast your signal with integrity.

Cinegears Ghost-Eye 600M Kit Features

  • Wireless HD video and audio transmission over 600 meters (2000 feet)
  • Transmits 1080p resolution at up to 60fps with 10-bit 4:2:2 color
  • HDMI/SDI Cross Conversion with SDI Loop-Out on Tx and RX
  • Limited REC Start/Stop Functionality
  • Fully supports 3G SDI type A and 3G SDI type B
  • No Latency
  • 4 Transmission Channels to an unlimited number of Ghost-Eye Receivers
  • Full cross-compatibility with other Ghost-Eye models
  • Auto-relink once transmitter is carried back within range
  • Powered by 2-Pin Lemo to D-Tap
  • 7 Long Range Antennas
  • 2 Mushroom Antennas
  • Heavy duty casing with durable inset SDI ports to prevent damage

Key Features

  • Wireless HD video and audio transmission over 600 meters (2000 feet)
  • Transmits 1080p resolution at up to 60fps with 10-bit 4:2:2 color
  • HDMI/SDI Cross Conversion with SDI Loop-Out on Tx and RX
  • Limited REC Start/Stop Functionality
  • Fully supports 3G SDI type A and 3G SDI type B
  • No Latency

What's in the box:

  • 1x Ghost-Eye 600M Transmitter
  • 1x Ghost-Eye 600M Receiver with Gold Mount Battery Plate
  • 2x 2-Pin Lemo to D-Tap Power Cables
  • 7x Extended High Range Antennas
  • 2x Mushroom Antennas
  • 1x Waterproof Foam Case for Ghost-Eye 600M
  • Cinegears 3 Year Limited Warranty
