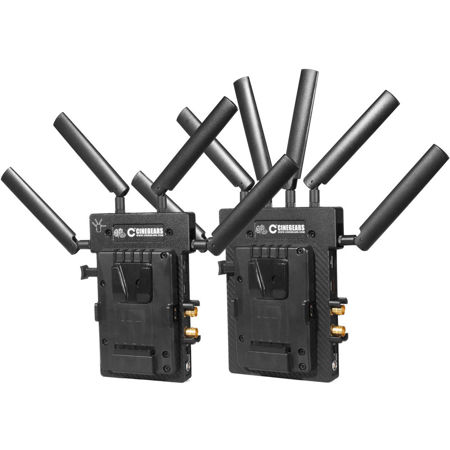

Cinegears Ghost-Eye Wireless HD & SDI Video Transmission Kit, Includes 600T Wireless Video Transmitter, 600T Wireless Video Receiver, 10x Extended Antennas, Waterproof Foamed Case

Cinegears Ghost-Eye wireless video transmission systems are already on thousands of film sets around the globe. With all the cutting edge features packed into the compact transmitters and receivers, the choice is clear: keep watch over your shot with Ghost-Eye. The Ghost-Eye M-series provides the best solution for video and audio transmission for film and television making professionals on set and in post-production.

• Build in Talk back Mic and Headphone
• Wireless HD video transmission kit, SDI and HDMI up to 1080p 60fps 10-bit 4:2:2
• Broadcast video and audio up to 1000 meters / 3280 feet (line of sight) over 5GHz frequencies
• Time Code supported
• Transmit to up to 4 receivers (of any Ghost-Eye model) on separate channels with <1ms latency (no frames dropped)
• 3-year warranty serviced in North America

No compromise for quality; your video and audio signals get sent at industry-leading speeds from A to B (or from A to B, C, D and E with built-in point-to-multipoint topology) with zero compression. Your signal will arrive in all its 10-bit, 4:2:2, 1080p, 60fps glory; don't miss a single frame! Broadcast from virtually any SDI or HDMI output you can find and have your signal received by up to 4 Ghost-Eye receivers of any model! With a 3-year warranty and firmware upgrade guarantee, your Ghost-Eye units will always function at peak performance.

Ghost-Eye 600T Wireless Video Transmission kit
Avoid the clutter and headache of cables with the Cinegears Ghost-Eye 600T Wireless Video Transmission System; one Ghost-Eye Wireless Video Transmitter 600T and one Ghost-Eye Wireless Video Receiver 600T. With 1000 meters/3280 feet of high fidelity, uncompressed HD video transmission, feel free as you shoot indoors or out, night or day. With both 3G and HDMI inputs and outputs, using frequencies between 5.1-5.9GHz as needed (up to 4 simultaneously), you will utilize the current cutting edge of video transmission, adding a professional quality to your project.

The Cinegears Wireless HD/SDI HD Video Transmission system is an affordable and effective solution, requiring no technical skills and virtually no learning curve to operate. We focus on creating technologies that include the most effective, reliable and affordable solutions. With our simple and elegant design, Cinegears makes sure you're Always in Focus.

• Uses License-Free 5GHz ISM frequency band, maximum 4 channels automatic or manual selection, Coexist with WIFI.
• Supports wireless 10 bit HD video with no compression and no delay up to 1000 meters/3280 feet.
• Uncompromised picture quality with very low latency <1ms.
• Support point to point and point to multi points network topology, Multiple receiver is supported with up to 4 receivers
• Cross compatibility between Cinegears Ghost-eye 100M, 150M and 300M transmitter and receivers.
• Highest resolution 10bits color depth 4:2:2, 1080p 60FPS HDMI and SD/HD/3G SDI input and output, HDMI - SDI cross conversion is supported.
• Support professional audio formats include Dolby True HD, DTS-master, etc.
• AES-128/256 encryption with air interface HD video data stream.
• HDMI 1.4 with EDID support
• Time Code, LUT, start/stop sync supported
• Build-in ultra silent intelligent fun prevent heat and moisture damage.
• Wide range power voltage input, adapt most kinds of camera battery, optional Standard V-mount, Anton Bauer or 1/4 bolt Mount battery plate can be installed.
• Any input and output ports with +/-8 kV ESD protection level (HBM, contact discharge).
• Plug & Play- fully hardware design, no software is required, firmware upgradable via mini USB port.
• Built-in LCD screen displays for device and signal status.
• Water and mist proof, shock proof production case with form insert ready for traveling.
• CE, FCC, RoHS certified product, safe to use worldwide.

600T Wireless HD Video Transmitter
• INPUT: SDI/HDMI input from digital Cinema cameras, HD SDI video cameras and other Digital devices
• 5 External antenna with RPSMA socket

With the Cinegears Ghost-Eye Wireless HDMI & SDI Transmitter 600T, transmit high fidelity, uncompressed HD video up to 500 meters and feel free as you shoot indoors or out, night or day. With both 3G and HDMI inputs and outputs, using frequencies between 5.1-5.9GHz as needed (up to 4 simultaneously), you will utilize the current cutting edge of video transmission, adding a professional quality to your project. Ghost-Eye Wireless Video Receiver 600T required for full feature utilization. Pair this transmitter with any Ghost-Eye receiver.

600T Wireless HD Video Receiver
• OUTPUT: SDI/HDMI, dual output supported
• 2 External antenna with RPSMA socket

With the Cinegears Ghost-Eye Wireless HDMI & SDI Receiver 600T, receive high fidelity, uncompressed HD video up to 500 meters and feel free as you shoot indoors or out, night or day. With both 3G and HDMI inputs and outputs, using frequencies between 5.1-5.9GHz as needed (up to 4 simultaneously), you will utilize the current cutting edge of video transmission, adding a professional quality to your project. Ghost-Eye Wireless Video Receiver 600T required for full feature utilization. Pair this receiver with any Ghost-Eye transmitter.

10-Bit 4:2:2 Video
Transmit uncompressed 1080p, 6Ofps video with any Ghost-Eye transmitter to a virtually unlimited number of simultaneous receivers.

1ms Latency, 300mb/s
Never miss a frame; the broadcasting capacity at the Ghost-Eye wireless transmission protocols exceeds the maximum resolution!

Cross-Convertible
Each Ghost-Eye transmitter and receiver has both HDMI and SDI output/input and features in-unit cross conversion; send via SDI and receive via HDMI or vice versa!

X-Sync
All Ghost-Eye transmitter and receiver models are cross compatible; transmit video from 400M transmitters to 150M and 300M receivers and vice versa!

Auto-Relink
Signals dropped due to interference or loss of line-of-sight are automatically re-connected within 1ms of the obstacle being removed.

Intuitive Signal
Small obstacles in the line-of-sight are accommodated with an adaptive signal logarithm, keeping your signal connected.

High Sensitivity Antennas
Omni-directional antennas broadcast your signal with integrity.

3-Year Warranty
Ghost-Eye units are protected from defects for 3-Years, serviced in our Pacific Northwest locations for North American users and in China for global users.
