Cinegears Ghost-Eye Wireless 600MP HDMI and SDI Video Receiver

SKU: CG6613

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-03-04T10:03:08

Rated 5 out of 5

Ghost eye

Everything was amazing!

Merton H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Cinegears Ghost-Eye 600MP Specifications

  • Antenna

    Internal Antenna x 5pcs

  • Receiving sensitivity

    -70dBm

  • Functional Interface

    SDI Dual Output; HDMI Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket;
    Power ON/OFF

  • Locating Structure

    1/4" Hot-shoe connection; V-Mount

  • LCD Screen

    Wireless Channel Info; SDI/HDMI Signal Info

  • Working Voltage

    9V-18V

  • Power Consumption

    7-8W

  • Temperature

    -10-60 (operating) 10%-90% humidity; -40-80 (storage) 10%-90% humidity.

  • Dimensions

    5.5 x 3.93 x 0.8" (141 x 100 x 22.4 mm)

  • UPC Code

    610877597604

About Cinegears Ghost-Eye 600MP

FEATURED REVIEWS

Ghost eye

By Merton H.

Everything was amazing!

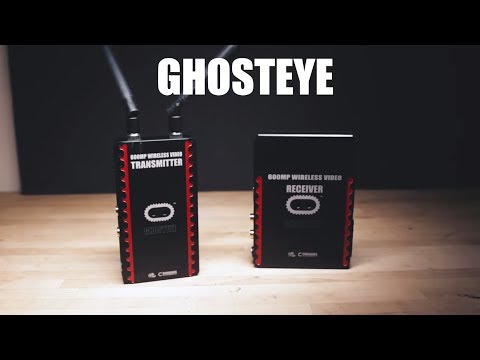

The Cinegears Ghost-Eye 600M Plus is at the cutting edge of wireless video and audio transmission technology. Providing maximum functionality with HDMI/SDI cross-compatibility, 10-bit color and SDI loop-out, the 600M Plus now comes in a form more robust and powerful than its predecessors and its competitors. With the antennas, which are made of high grade porcelain, built into the receiver this impressive 300 meter range unit is now more compact than ever. The 600M Plus features indictor lights on the side, allowing the user to sandwich the unit with a front and back mount. A further exciting new feature is the LED screen, which allows the user easier access to channel selection. The Ghost-Eye 600M Plus is the new standard in the wireless video and audio transmission market.

FCC & IC Requirements
All Ghost-Eye transmitter and receiver devices comply with the Federal Communications Commission requirement and the Industry Canada Certification standard.

10-Bit 4:2:2 Video
Transmit uncompressed 1080p, 60fps video with any Ghost-Eye transmitter to a virtually unlimited number of simultaneous receivers.

lms Latency, 300mb/s
Never miss a frame; the broadcasting capacity of the Ghost-Eye wireless transmission protocols exceeds the maximum resolution!

Cross-Convertible
Each Ghost-Eye transmitter and receiver has both HDMI and SDI output/input, and features in-unit cross conversion; send via SDI and receive via HDMI, or vice versa!

X-Sync
All Ghost-Eye transmitter and receiver models are cross compatible; transmit videofrom 400M transmitters to 150M and 300M receivers and vice versa!

10 Selectable Channels
Each Ghost-Eye transmitter and receiver has maximum 10 frequency channels manual selection, Coexist with Wi-Fi.

Auto-Relink
Signals dropped due to interference or loss of line-of-sight are automatically re-connected within lms of the obstacle being removed.

Intuitive Signal
Small obstacles in the line-of-sight are accommodated with an adaptive signal logarithm, keeping your signal connected.

High Sensitivity
Antennas Omni-directional antennas broadcast your signal with integrity.

Cinegears Ghost-Eye 600MP Features

  • Zero Latency Wireless HD video and audio transmission over 600 meters (1984' feet)
  • Transmits 1080p resolution at up to 60fps with 10-bit 4:2:2 color
  • HDMI/SDI Cross Conversion with SDI Loop-Out on Tx and RX
  • Limited REC Start/Stop Functionality
  • Fully supports 3G SDI type A and 3G SDI type B
  • Unlimited number of Ghost-Eye Receivers
  • Full cross-compatibility with other Ghost-Eye models
  • Auto-relink once transmitter is carried back within range
  • Powered by 2-Pin Lemo to D-Tap
  • Receiver with built-in internal antennas
  • Heavy duty casing with durable inset SDI ports to prevent damage

Key Features

  • Zero Latency Wireless HD video and audio transmission over 600 meters (1984' feet)
  • Transmits 1080p resolution at up to 60fps with 10-bit 4:2:2 color
  • HDMI/SDI Cross Conversion with SDI Loop-Out on Tx and RX
  • Limited REC Start/Stop Functionality
  • Fully supports 3G SDI type A and 3G SDI type B
  • Unlimited number of Ghost-Eye Receivers

What's in the box:

  • Ghost-Eye Wireless 600MP HDMI & SDI Video Receiver
  • 2-Pin Lemo to D-Tap Power Cable
  • Cinegears 3 Year Limited Warranty
